elco R 600 User Manual

Maintenance
Cleaning the condensate receptacle
Cleaning and refilling the syphon
Inspection of combustion chamber
24
5
6
7

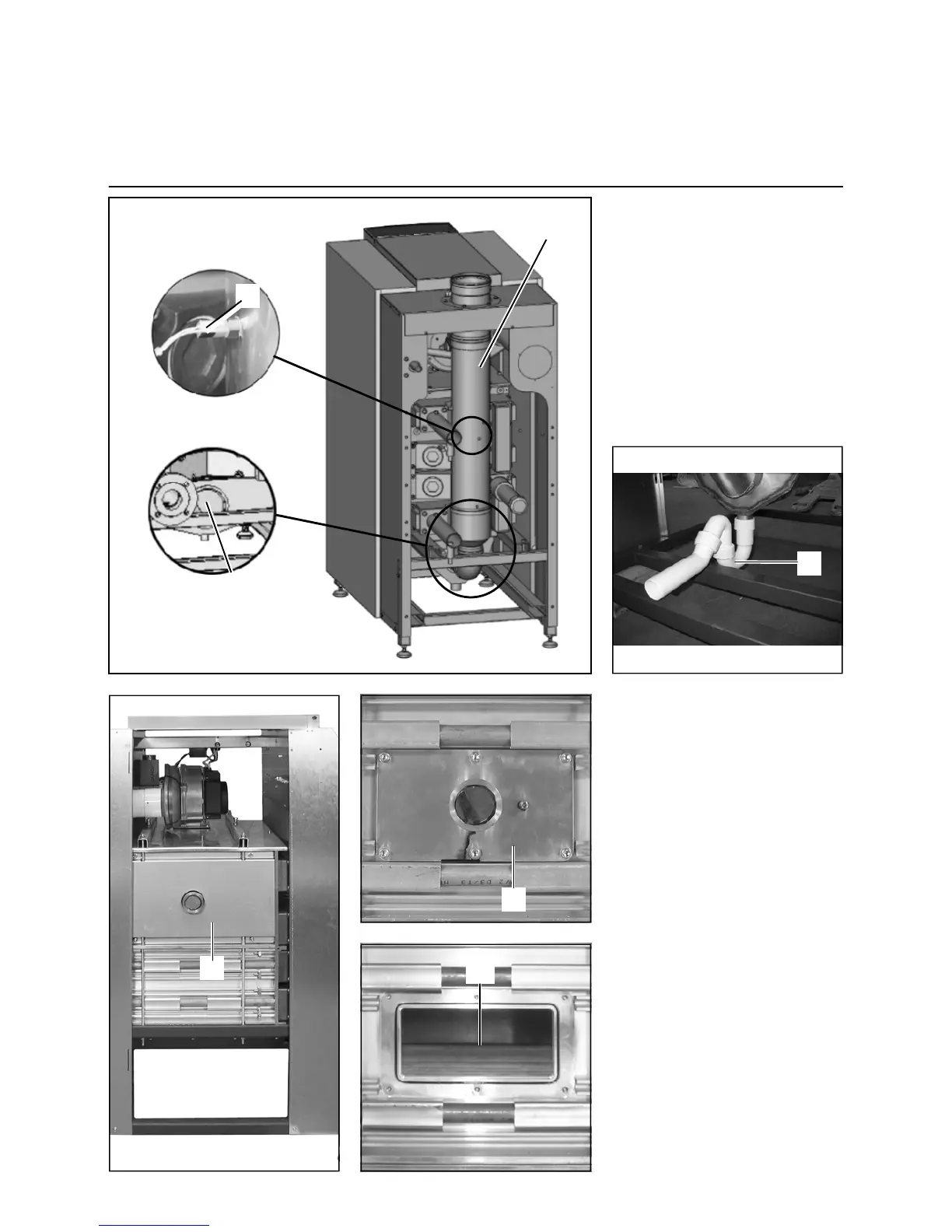

Cleaning the condensate receptacle
Disconnect the plug of the fluegas
temperature sensor (1);
Remove the internal fluegas pipe (2)
of the boiler in order to create access
to the condensate receptacle;
Clean the receptacle (3);
Mount the fluegas pipe back in positi-
on when the cleaning is finished;
Connect the plug of the fluegas tem-
perature sensor.
Inspection of combustion chamber
The inspection opening is positioned on
the left hand side of the boiler.
Remove the radiation panel (5) from
the heat exchanger;
Remove the cover (6) from the in-
spection opening;
Inspect the combustion chamber (7),
clean if necessary;
Mount the cover and radiation panel
back in original position.
Cleaning and refilling the syphon
Remove the syphon (4) from the con-
densate connection;
Clean and fill it with fresh water;
Mount the syphon back in the original
position.
4
1
3
2
