EN Series Drives Manual
Typical Installation

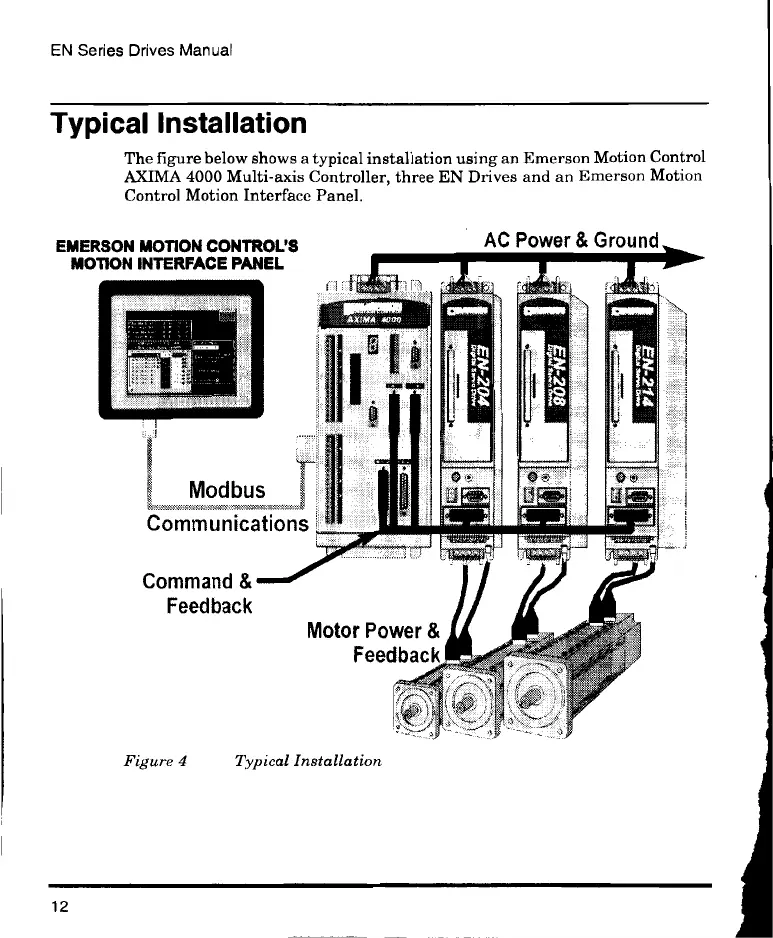

The figure below shows a typical installation using an Emerson Motion Control
AXIMA 4000 Multi-axis Controller, three EN Drives and an Emerson Motion
Control Motion Interface Panel.
EMERSON MOTION CONTROL'S
MOTION INTERFACE PANEL
Modbus
Communications
Command &
Feedback
Motor Power &
Feedback
Figure 4 Typical Installation
AC Power & Ground
12
