EN Series Drives Manual
Drive and Motor
Display
EN-204 with MGE-205
13
EN-204 with MGE-208
11
EN-204 with MGE-316
EN-208 with MGM-316
EN-208 with MGM-340
EN-208 with MGM/E-455
EN-214 with MGM/E-455
3:
EN-214 with MGM/E-490
EN-214 with MGM/E-4120

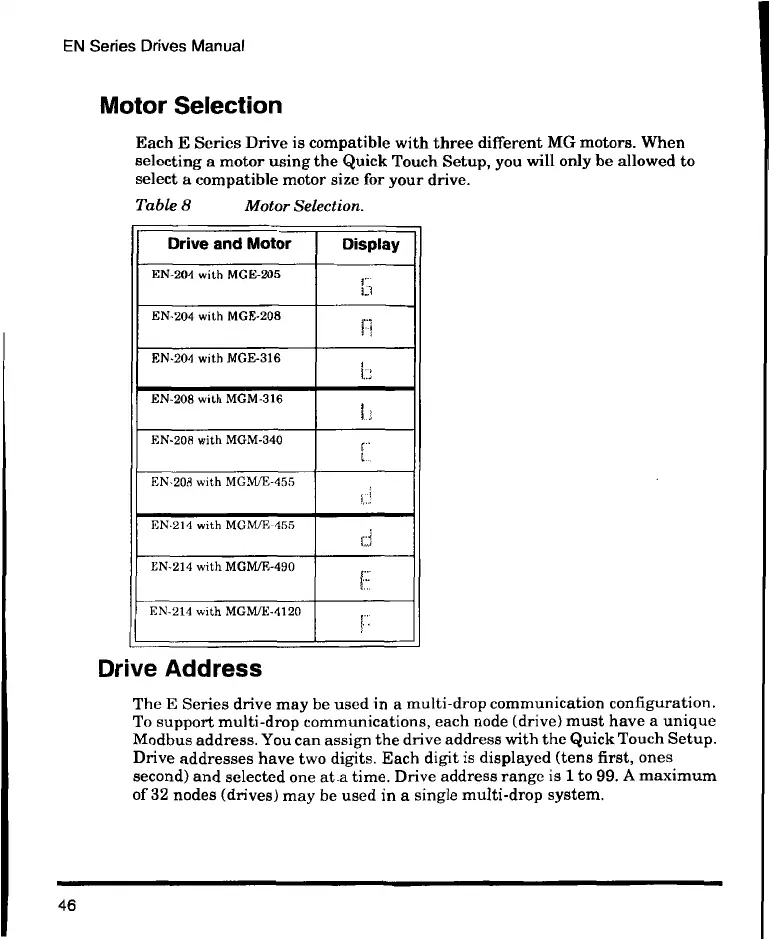

Motor Selection
Each E Series Drive is compatible with three different MG motors. When
selecting a motor using the Quick Touch Setup, you will only be allowed to
select a compatible motor size for your drive.
Ta b l e 8 Motor Selection.
Drive Address
The E Series drive may be used in a multi-drop communication configuration.
To support multi-drop communications, each node (drive) must have a unique
Modbus address. You can assign the drive address with the Quick Touch Setup.
Drive addresses have two digits. Each digit is displayed (tens first, ones
second) and selected one at a time. Drive address range is 1 to 99. A maximum
of 32 nodes (drives) may be used in a single multi-drop system.
