Troubleshooting
Diagnostic Outputs
The diagnostic outputs are located on the front of the drive allow you to
measure drive parameters. There are two diagnostic output channels
associated with these test points.
Default assignments:
Output 1 = Velocity Feedback
± 10V = -± 6000 RPM
Output 2 = Torque Command
± 10V =. ± 300% of continuous motor torque

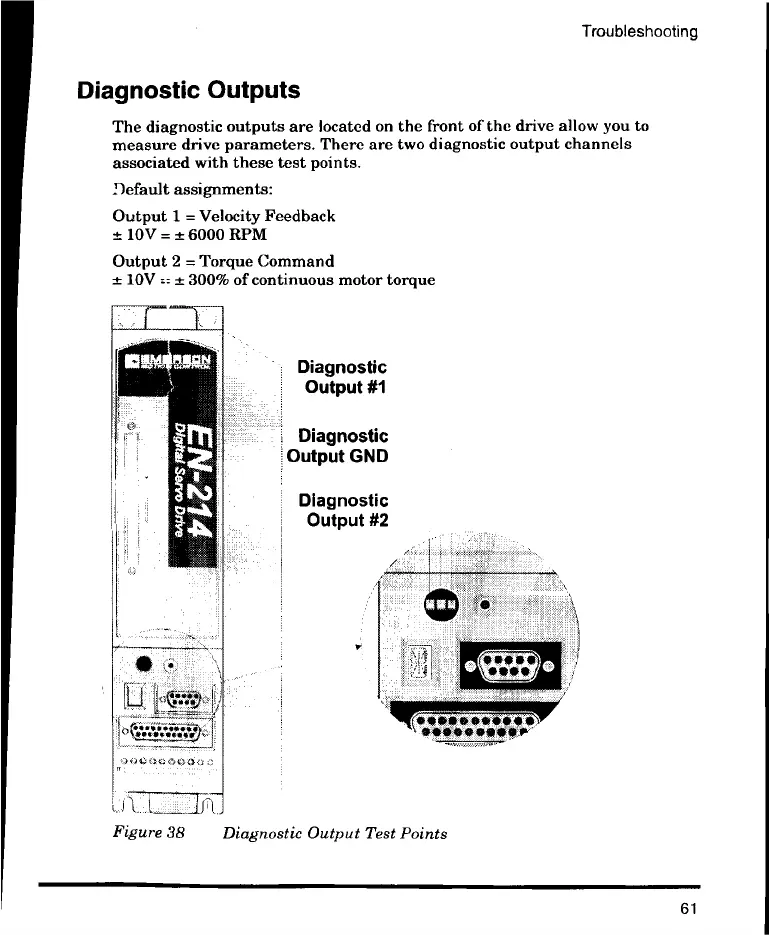

Figure 38
Diagnostic
Output #1
Diagnostic
Output GND
Diagnostic
Output #2
**es* *****\
Diagnostic Output Test Points
61
To Next Page
