EN Series Drives Manual
Electrical Installation
System Grounding
AC Power Supply
Enclosure
+24V
Logic Common
PE Connection
AXIMA Multi-Axis
Controller
DC I/O Supply Single Point Ground
(Bonded to Enclosure)
Fuses
3 Phase Line Power
Control
Transformer
iOutput
Neutral' I Hot
Q
Convenience
Outlet
Note: The aluminum heatsink is electrically connected to the PE terminal.

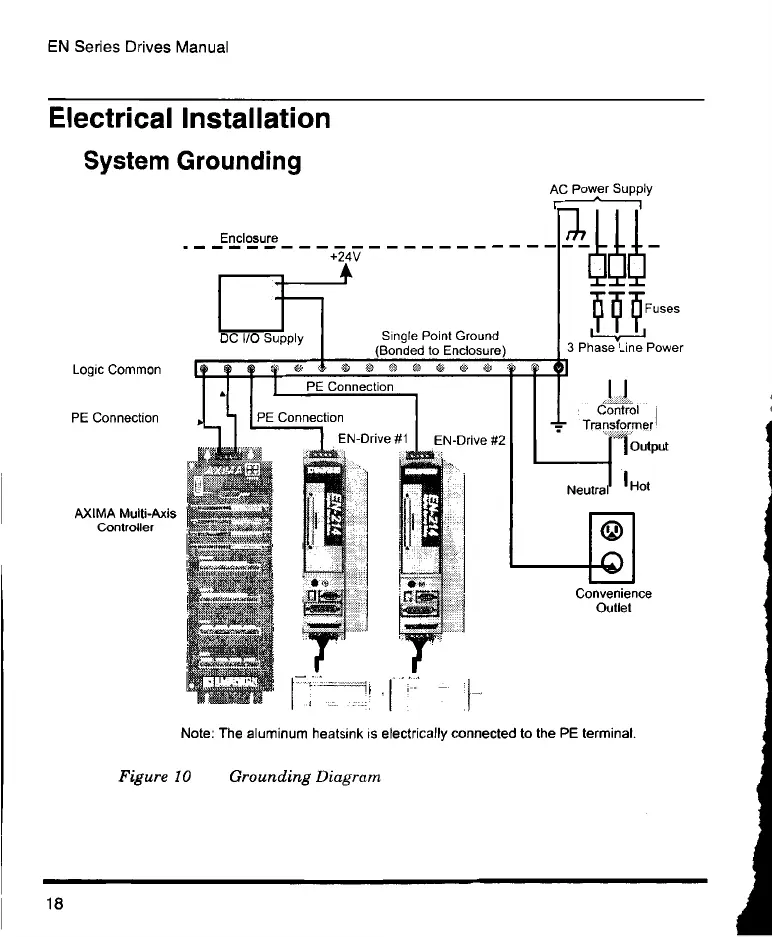

Figure 10 Grounding Diagram
18
