FB3000 RTU Instruction Manual
D301851X012
November 2023
20 Installation

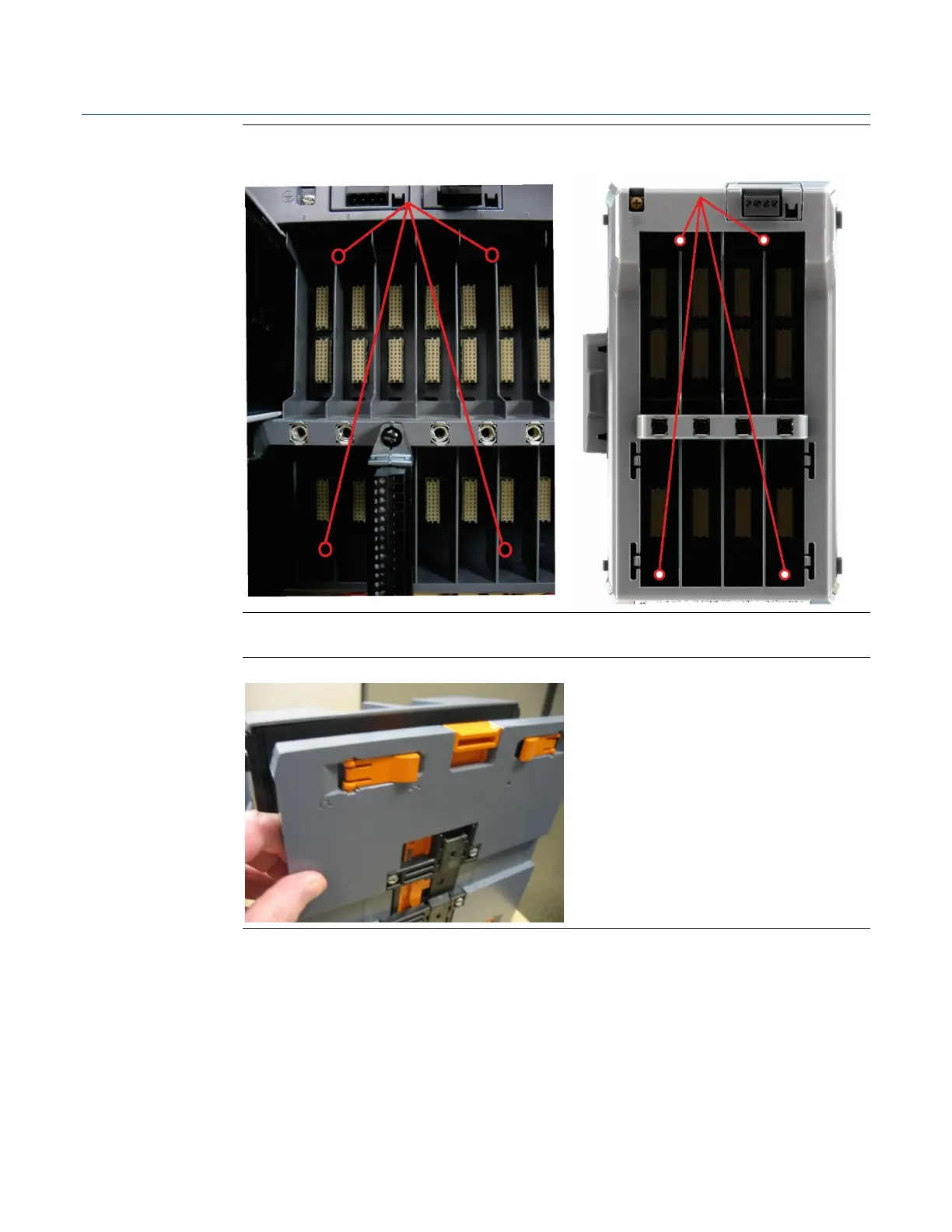

Figure 2-11. Panel or Wall Mounting Screw Locations 8-Slot Chassis Left, 4-Slot
Chassis Right
4. Slide the mounting plate off the chassis.
Figure 2-12. Sliding Off the Mounting Plate
5. Insert longer screws (screw length depends on the wall/panel) in the holes shown in
Figure 2-11 to mount the device to a wall or panel. The shafts of the screws push
through the locations shown in Figure 2-13 (8-slot chassis) or Figure 2-14 (4-slot
chassis).
