FB3000 RTU Instruction Manual
D301851X012
November 2023
Installation 39
2.10.5 Ethernet and Micro USB Port (CPU module)
Located on the top of the CPU logic module, the two Ethernet ports are standard 8-pin
10/100Base-T RJ -45 8P8C sockets. Connect to an Ethernet switch using the appropriate
Category 5 shielded patch cable. The Micro A-B USB connector is located on the front of
the module. The Micro A-B USB connector is compatible with either Micro A USB or Micro
B USB plugs but is not compatible with Micro C plugs. You can use the Micro A-B USB
port for DNP3 slave communications. When configuring the USB port, ignore baud rate
and other settings; simply choose the correct COM port and communicate as if using one
of the serial ports.

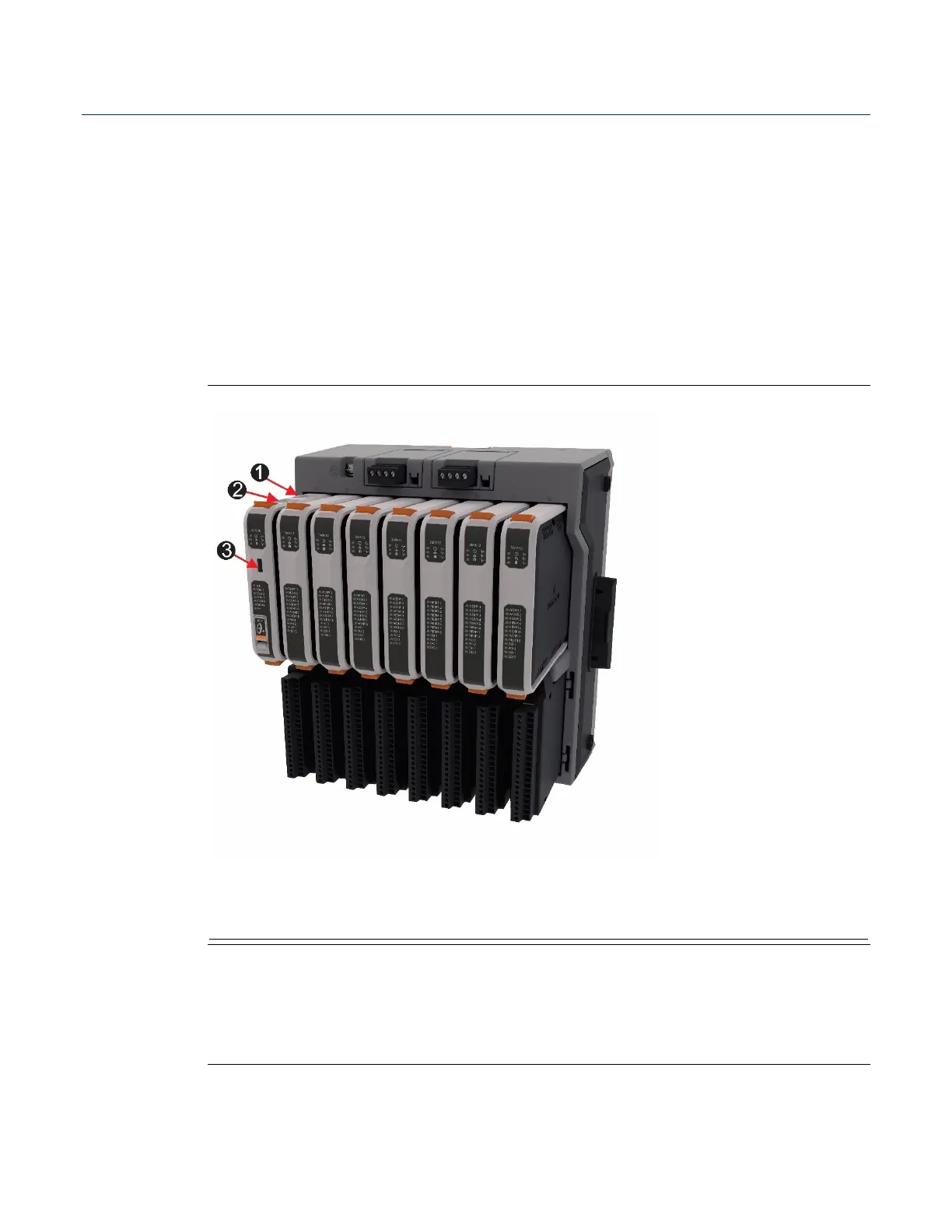

Figure 2-30. Location of Ethernet Ports and Micro USB Port
1
Ethernet Port 1
2
Ethernet Port 2
3
Micro AB USB Port
Notes
The default IP address for Ethernet port 1 is 192.168.1.10
The default IP address for Ethernet port 2 is 192.168.2.10
The default port is 20000
