FB3000 RTU Instruction Manual
D301851X012
November 2023
Installation 37
2.10.4 Connecting to COM4 (3CPU16/3CPUSG)
You can configure COM4 on the CPU personality module for RS-485 (2-wire)
communications. When connecting COM4 to an RS-485 port on another device (such as a
Rosemount 4088B transmitter), use a cable with configurations as shown below.

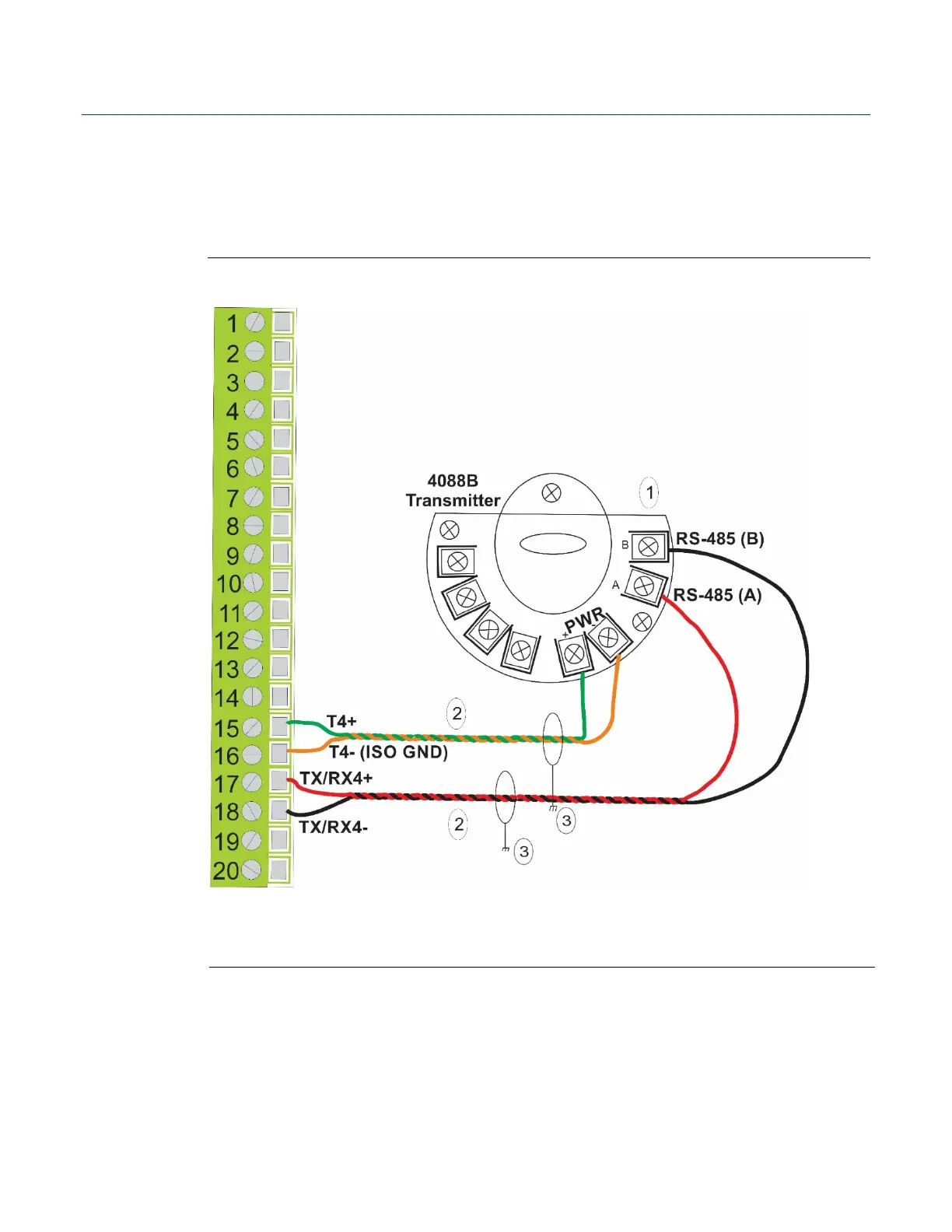

Figure 2-28. Wiring COM4 on the CPU Module for RS-485 (2-wire) and Connecting to a
4088B Transmitter
1
Enable AC termination using switches
2
RS-485 bus, twisted pair required
3
Connect cable shields to suitable Instrument Earth connection point
