Emerson Micro Motion 4200 User Manual

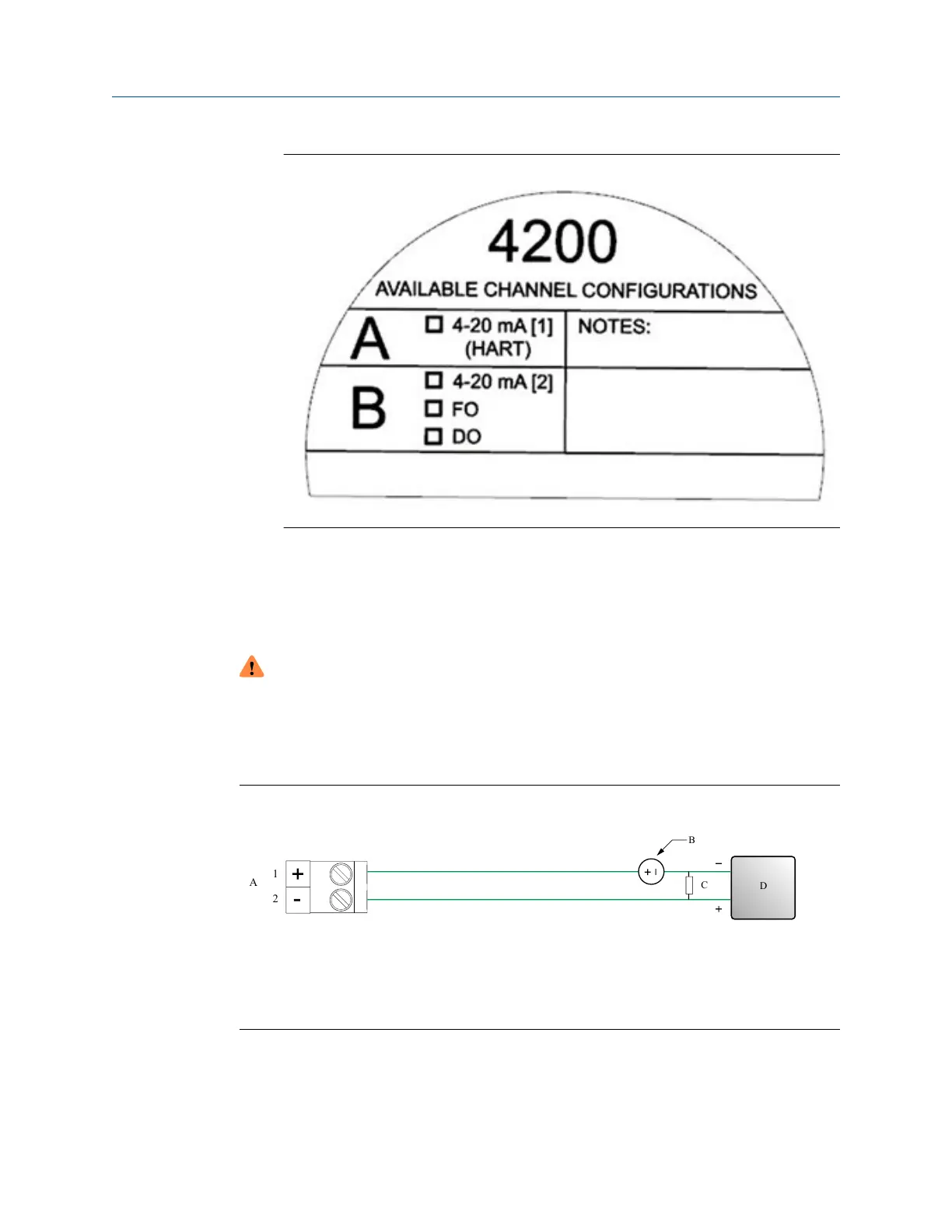

Figure 3-7: Channel and wiring configurations label
3.6 Wire the Channel A mA HART
®
output
To wire the mA/HART output in explosion-proof, intrinsically safe, or nonhazardous
installations, follow this procedure.
WARNING
Meter installation and wiring should be performed only by suitably-trained personnel
using the appropriate government and corporate safety standards.
Procedure
Wire to the appropriate output terminal and pins.
Figure 3-8: Channel A mA/HART output wiring (externally powered)
A
1
2
D
C
B
A. mA HART output
B. Supply voltage (See Figure 3-1.)
C. Loop resistance (See Figure 3-1 for maximum loop resistance.)
D. Input device
Wiring the channels Installation Manual
March2024 MMI-20058013
30 Micro Motion 4200 2-Wire Transmitter
