3.7 Wire the Channel B mA output
To wire the mA output in explosion-proof, intrinsically safe, or nonhazardous installations,
follow this procedure.
WARNING
Meter installation and wiring should be performed only by suitably-trained personnel
using the appropriate government and corporate safety standards.
Note
Remember when using the second configurable output (Channel B), all power to the
electronics is still supplied over the primary 4 - 20 mA signal wiring (Channel A).
Procedure
Wire to the appropriate output terminal and pins.

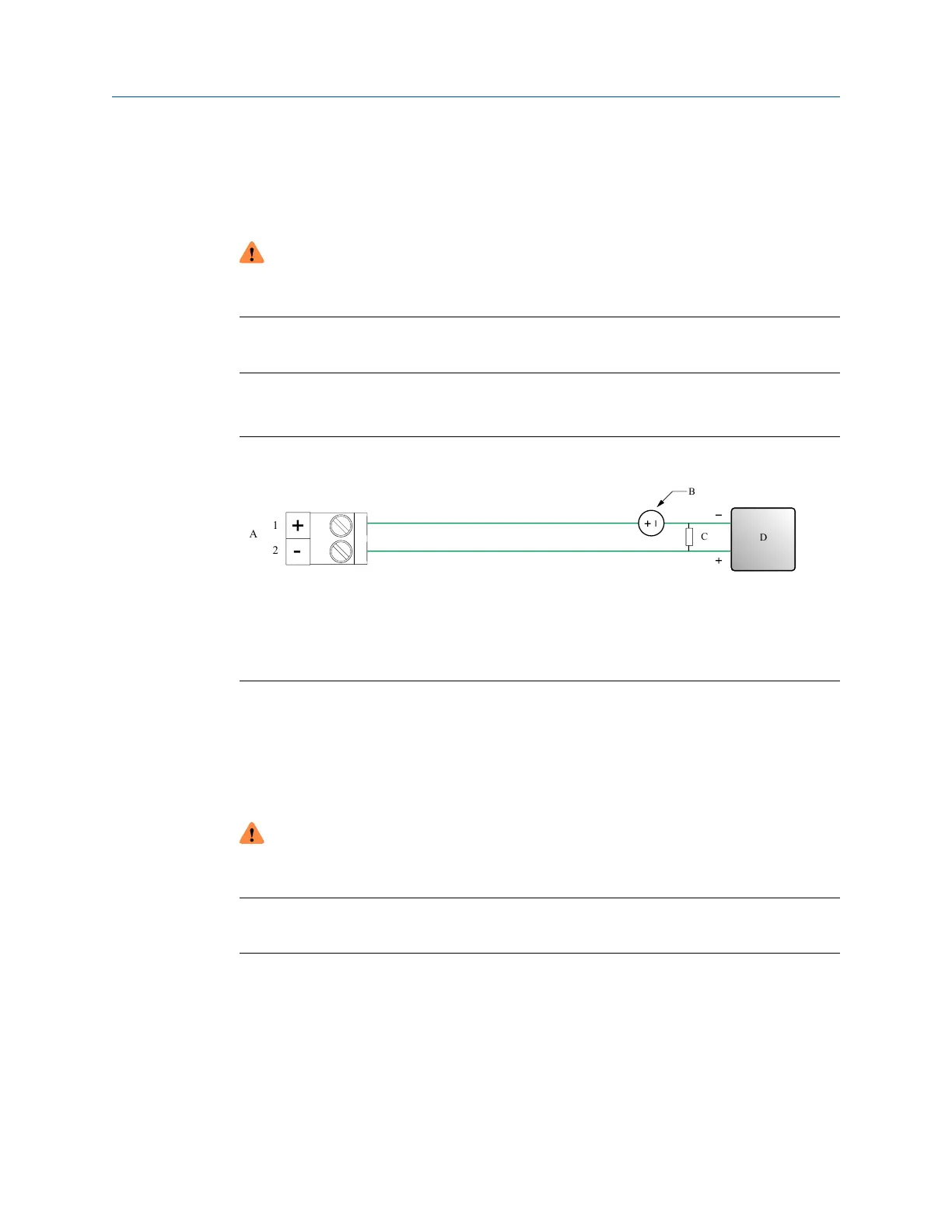

Figure 3-9: Channel B mA output wiring (externally powered)
A. mA output
B. Supply voltage (See Figure 3-2.)
C. Loop resistance (See Figure 3-2 for maximum loop resistance.)
D. Input device
3.8
Wire Frequency Output/Discrete Output
(Channel B)
Use this procedure to wire the externally-powered Frequency Output or Discrete Output
for Channel B.
WARNING
Meter installation and wiring should be performed only by suitably-trained personnel
using the appropriate government and corporate safety standards.
Note
Remember when using the second configurable output (Channel B), all power to the
electronics is still supplied over the primary 4 - 20 mA signal wiring (Channel A).
Procedure
Wire to the appropriate output terminal and pins.
Installation Manual Wiring the channels
MMI-20058013 March2024
