Mentor MP User Guide 117
Issue: 3 www.controltechniques.com

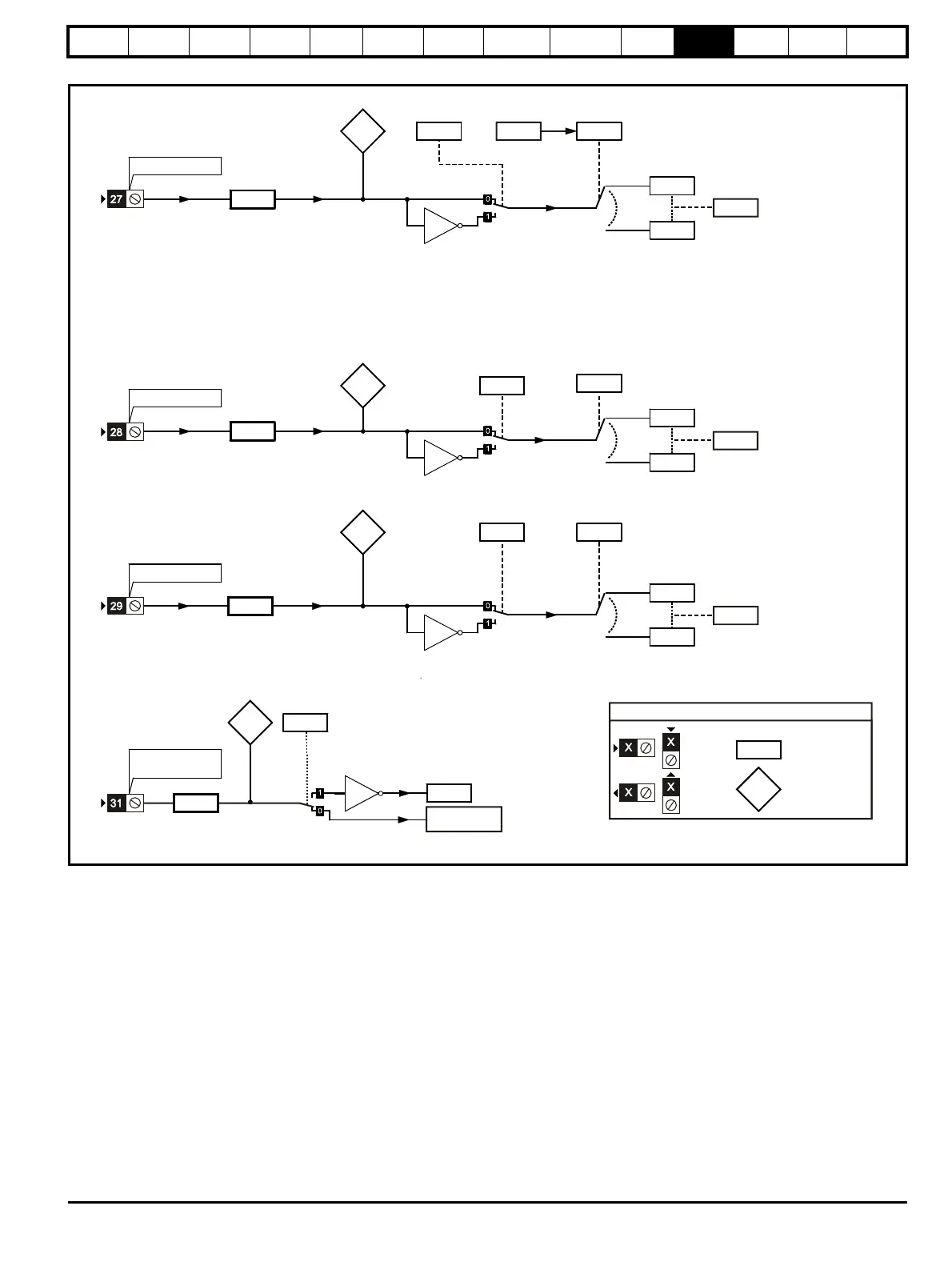

Figure 11-10 Menu 8 logic diagram (cont)
T29 digital input 6
??.??
Any
unprotected
bit
parameter
??.??
8.26
T29 digital
input 6
destination
x(-1)
8.16
T29 digital
input 6 invert
T29 digital
input 6 state
8.06
8.29
6.31
Jog forward
I.O polarity
select
0.XX
0.XX
Key
Read-write
(RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
This logic diagram shows parameters
at their default settings
8.25
T28 digital
input 5
destination
??.??
Any
unprotected
bit
parameter
??.??
x(-1)
8.15
T28 digital
input 5 invert
T28 digital
input 5 state
8.05
8.29
1.41
Analog input 1 /
input 2 select
I.O polarity
select
T28 digital input 5
8.10
Drive enable
mode select
Drive enable
10.32
External trip
Drive enable
Drive enable
indicator
8.09
x(-1)
T27 digital input 4
??.??
Any
unprotected
bit
parameter
??.??
8.24
T27 digital input 4
destination
x(-1)
8.14
T27 digital
input 4 invert
T27 digital
input 4 state
8.04
8.29
I.O polarity
select
6.32
Run reverse
Stop/start
logic select
6.04
8.29
I.O polarity
select
