18 Mentor MP User Guide
www.controltechniques.com Issue: 3

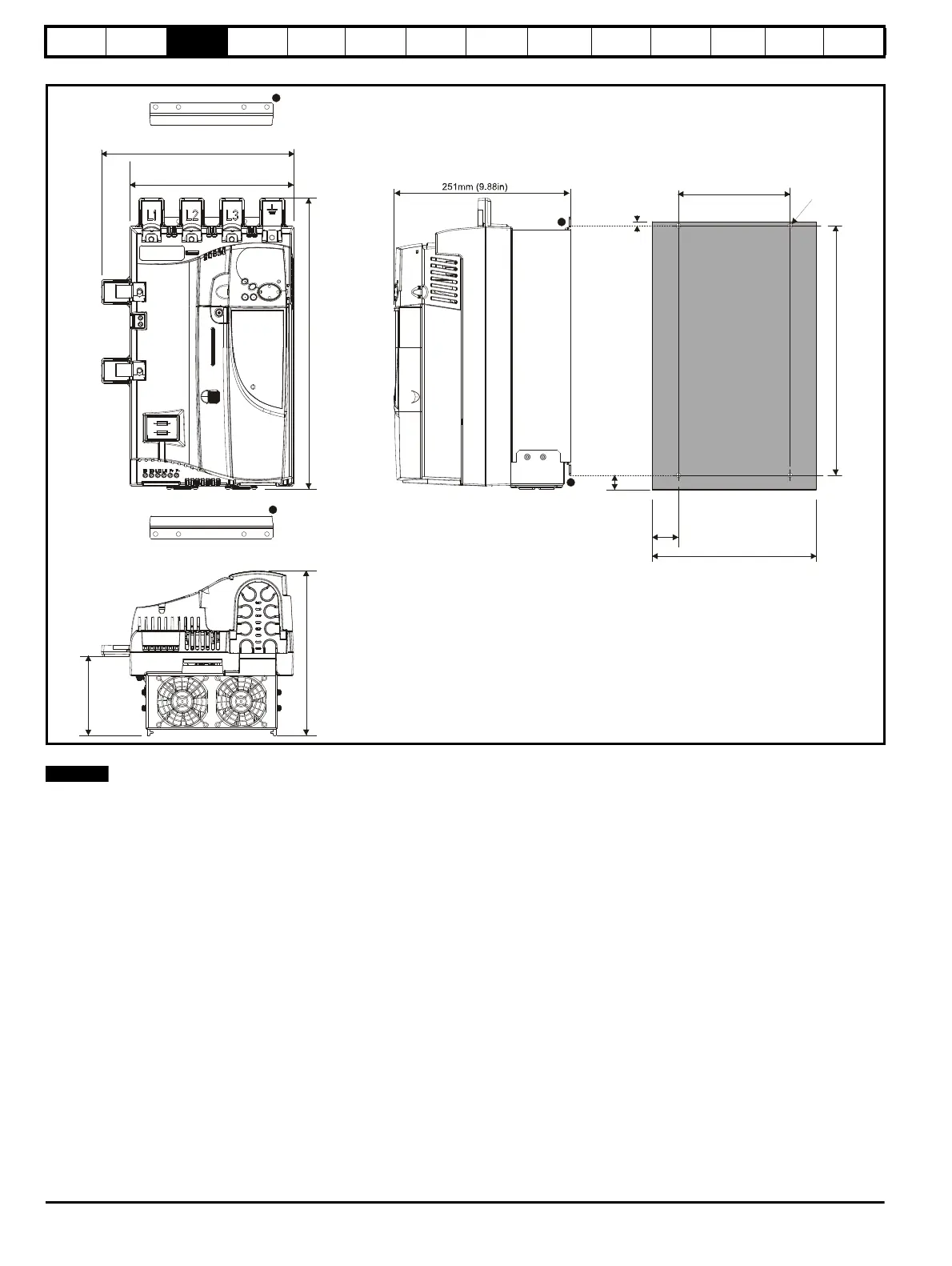

Figure 3-6 Overall size 1B dimensions
1. The two outer holes must be used for mounting the Mentor MP.
With the SMARTCARD installed to the drive, the depth measurement increases by 7.6mm (0.30 in).
293mm (11.54in)
250mm (9.84in)
444mm
(17.48in)
251mm
(9.88in)
124mm
(4.88in)
170mm (6.69in)
6.5mm (0.26in)
250mm (9.84in)
40mm
(1.58in)
22mm
(0.87in)
380mm
(14.96in)
4 holes to
suit M6
1
1
1
1
1
MA1
MA2
NOTE
