Mentor MP User Guide 21
Issue: 3 www.controltechniques.com

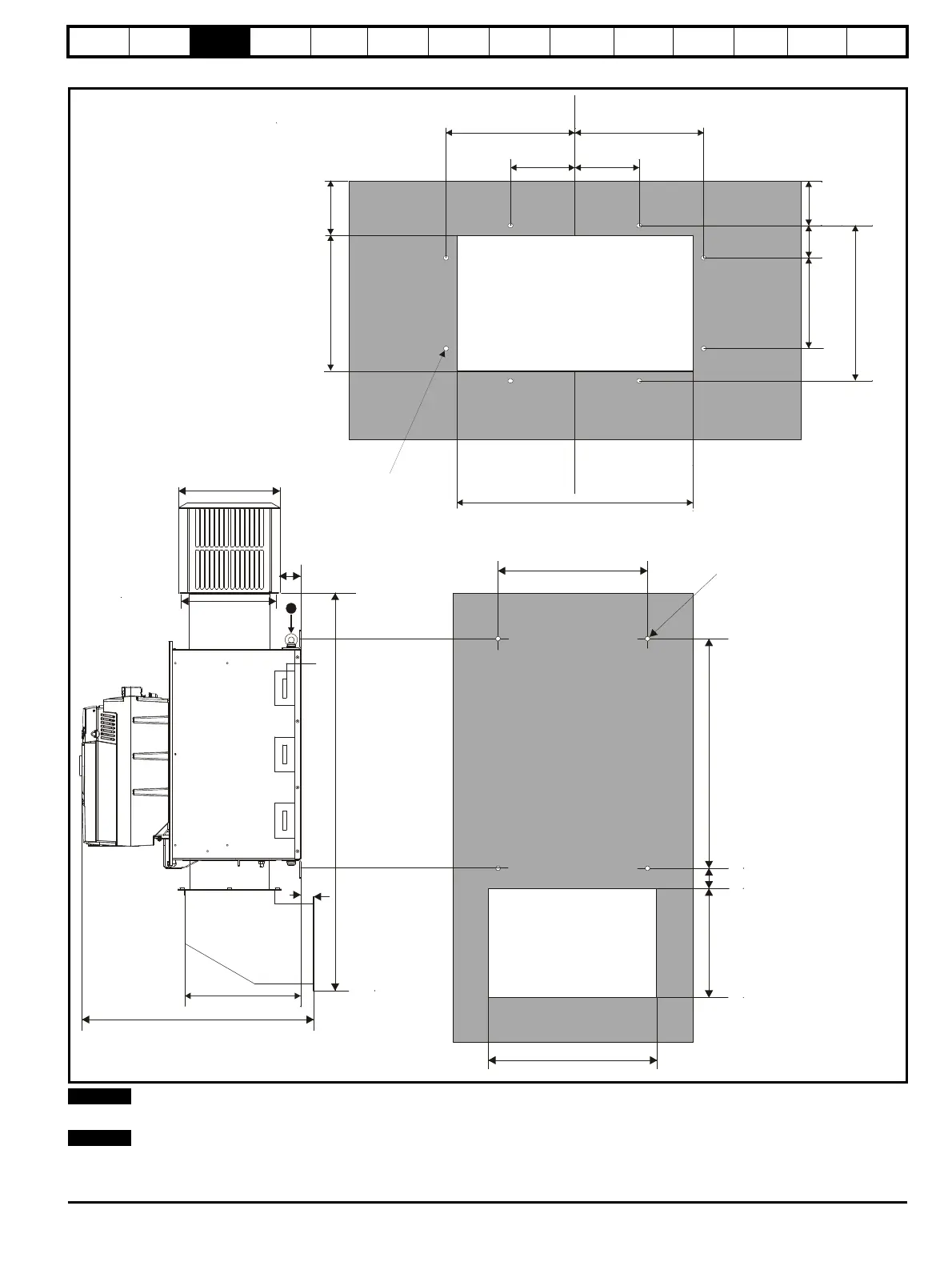

Figure 3-10 Size 2C back-plate and mounting detail
1. M10 eye-bolts can be inserted in the location shown for lifting the drive. These are not supplied with the drive.
With the SMARTCARD installed in the drive, the depth measurement increases by 7.6mm (0.30 in).
394mm (15.51in)
605mm
(23.82in)
53mm
(2.09in)
288mm
(11.34in)
450mm (17.72in)
1050mm (41.34in)
306mm (12.05in)
611mm (24.05in)
35mm
(1.38in)
38mm (1.5in)
59mm
(2.32in)
270mm
(10.63in)
4 holes
to suit M10
260mm
(10.24in)
180mm (7.09in)
180mm (7.09in)
90mm
(3.54in)
90mm
(3.54in)
68.5mm
(2.70in)
50mm
(1.97in)
190mm
(7.48in)
240mm
(9.45in)
333mm (13.11in)
83.5
(3.29in)
210mm
(8.27in)
Rear
Front
8 holes
∅ 7mm
1
NOTE
NOTE
