Air Assist
The Air Assist feature on the Fusion Pro Laser is used to
keep combustible gases away from the cutting suace
and to reduce flare-ups of more flammable materials as
you cut through it, such as wood and acrylic.
The Air Assist directs a constant stream of compressed
air across the material suace at the point of burn
removing the heat and combustible gases from the work
suace. The constant air stream helps reduce charring
and scorching associated with materials, such as wood,
rubber, and acrylic. The Fusion Pro systems also include
an air compressor within the machine.

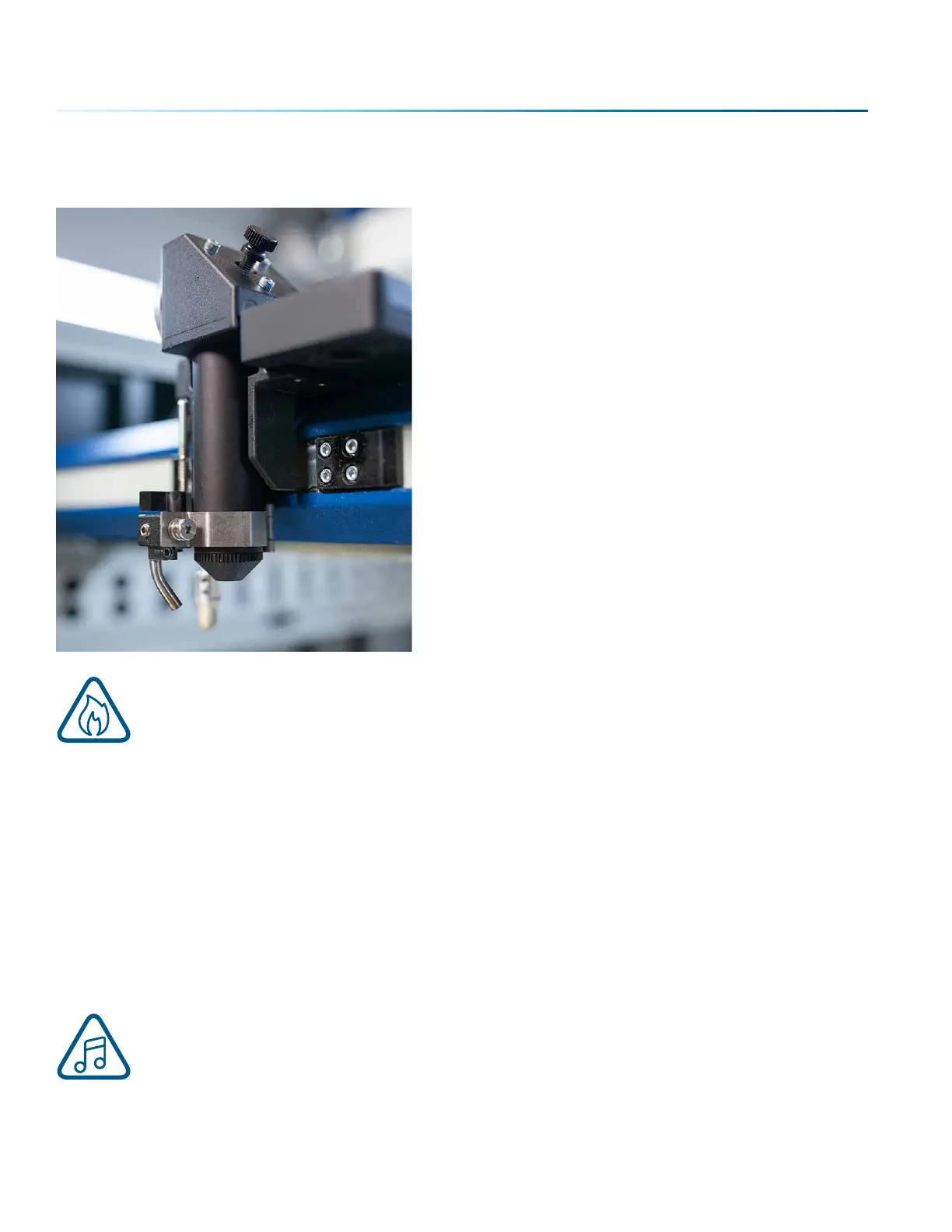

The Fusion Pro systems have two types of Air Assist:
• Cone: This feature directs air through the cone
shaped part of the assembly, and permanently remains
on while running any job to help keep the lenses clean.
• Sweep: This feature directs air through the Air Assist
tube to the side of the cone. This feature has the option
to be turned on or o by the switch directly on top of it.
When the switch is pointing outward toward the front
of the machine, the Sweep Air Assist is ON. When it is
pointing toward the right side of the machine and
adjacent to the lens tube, the Sweep Air Assist is OFF.
Both types of Air Assist should always be activated during vector cutting operations to reduce
the risk of fire! For more information, see “FIRE WARNING” on page 1 of the manual.
Auto Focus vs Manual Focus
In order to engrave or cut a crisp, clean image, your material must be the correct distance from the
bottom of the focus lens. Setting the distance from the bottom of the focus lens to the top of your material
is the process of focusing, and is accomplished by placing your material on the table and moving the
table up or down.
Auto Focus
Activating the Auto Focus can be done on your computer in the Auto Focus box in the Dashboard. The
default setting is “O”, however you may also choose between Thickness mode or Plunger mode.
Note: If you have a Dual Source machine and are running a Dual Source job, you will need to
enable the Auto Focus setting on the Dashboard. The table will lower automatically to adjust
the focus for the CO2 portion of your job. For more information, see “Focusing a Dual Source
Job” on page 148.
