Epilog Laser Fusion Pro 48 User Manual

- 18 -
SECTION 2: GETTING STARTED
Epilog Exhaust/Filter Connections
There are two 4” (102 mm) ports attached to the back of the Fusion Pro 32 laser system, and three 4” (102
mm) ports attached to the back of the Fusion Pro 48 laser system. The exhaust port on the Fusion Pro 32 is
approximately 14 ⁄ inches (368.3 mm) from the top of the machine, and the downdra port is approximately
32 ⁄ inches (825.5 mm) from the top of the machine. On the Fusion Pro 48 the exhaust ports are approximately
13 ⁄ inches (349.25 mm) from the top of the machine, and the downdra port is approximately 34 ⁄ inches
(876.3 mm) from the top of the machine. Attach your ducting to the machine as shown in the diagram.
Check your exhaust system for leaks. Most small leaks can be remedied with duct tape.
DO NOT OPERATE your laser with inadequate or leaking exhaust.

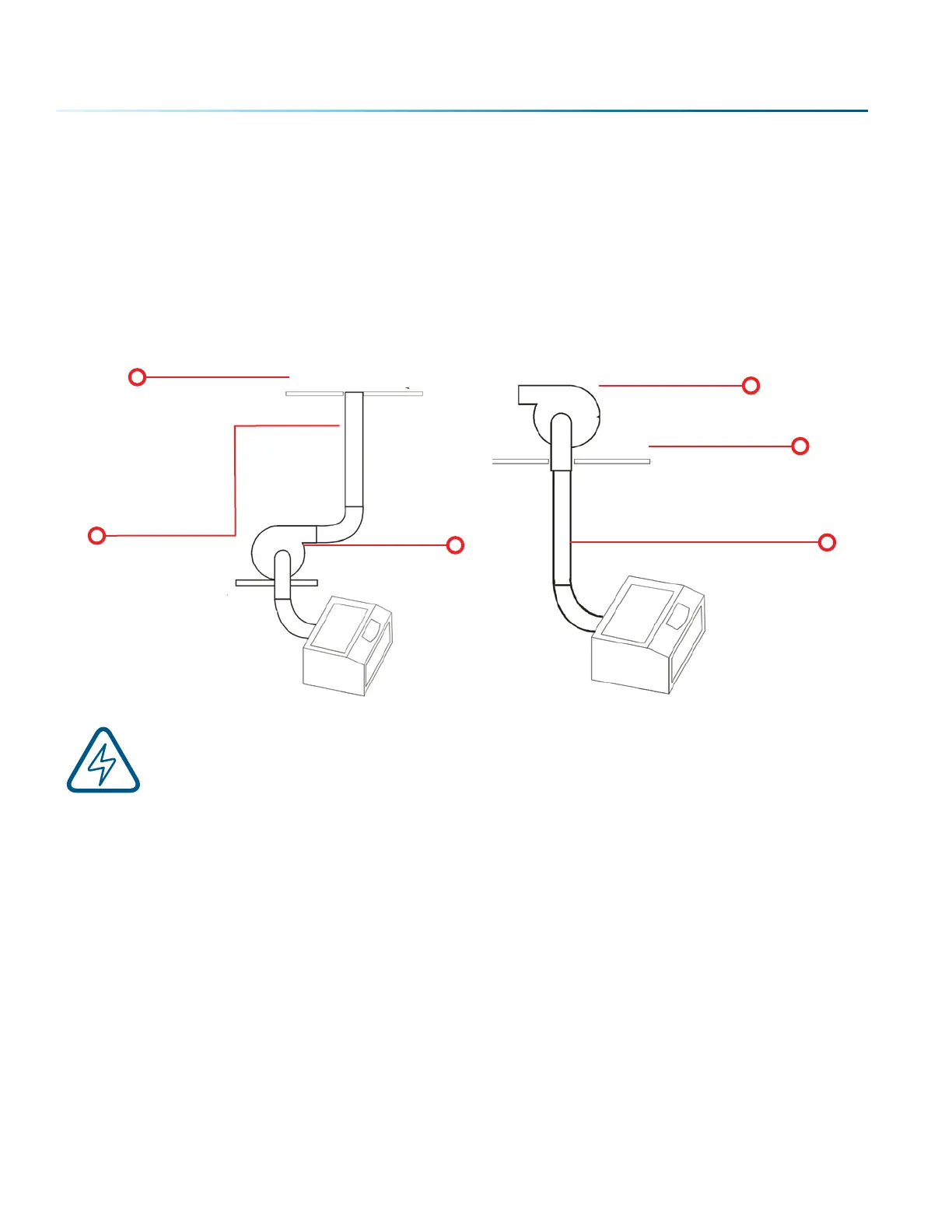

The drawings above show the typical exhaust setup. The le drawing shows the exhaust near the machine
and the right drawing shows the exhaust fan on the roof. Where the exhaust fan is placed is a choice of
personal preference. Some users like the exhaust fan outside because of noise considerations.
Roof or Exterior Wall
4” (102 mm) flexible
aluminum duct or
rigid galvanized
sheet metal (do
not use vinyl,
plastic or “so”
flexible duct).
Exhaust Blower
Roof or Exterior Wall
Exhaust Blower
4” (102 mm) flexible aluminum
duct or rigid galvanized sheet
metal (do not use vinyl, plastic
or “so” flexible duct).
