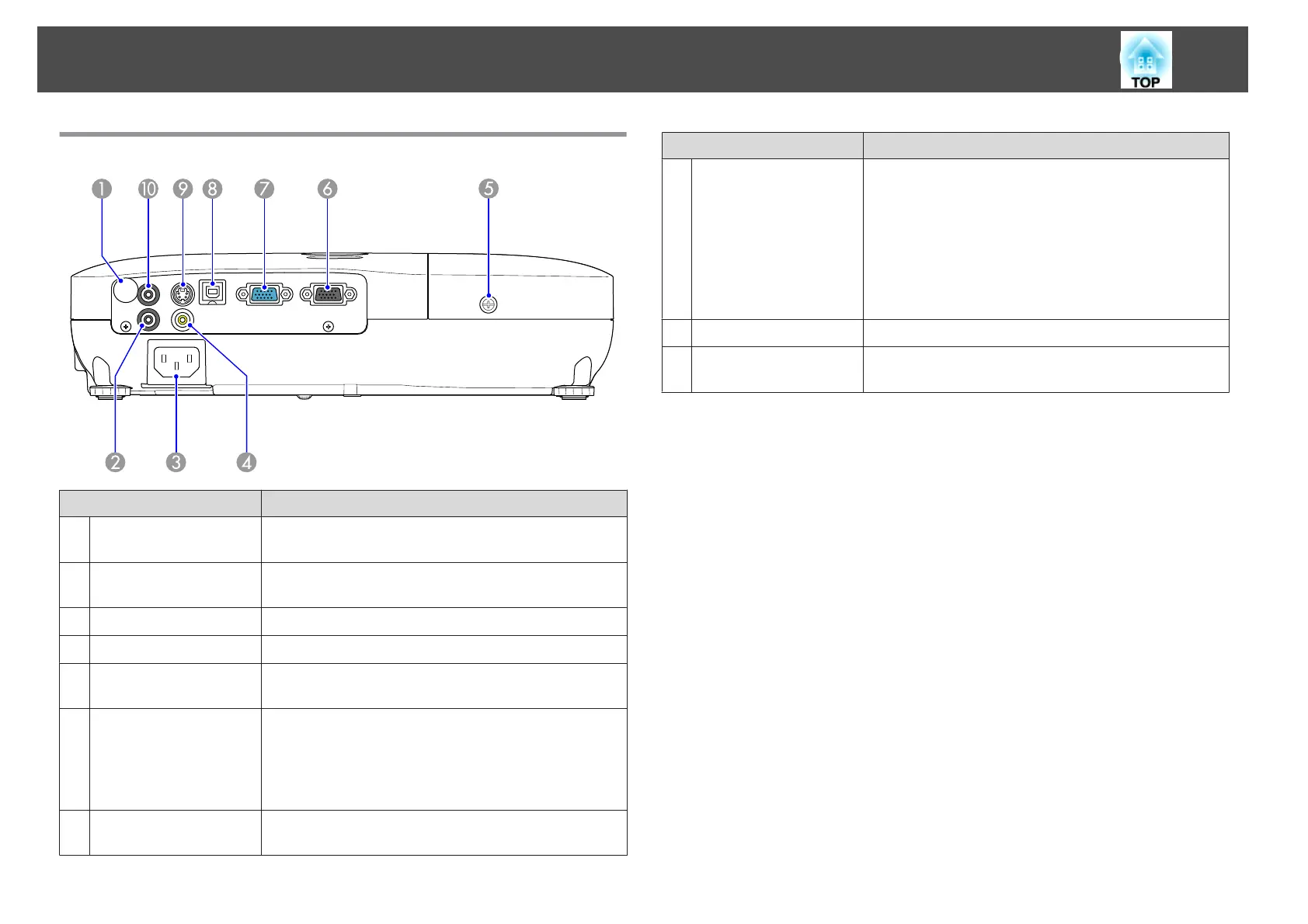

Rear (EB-W9/X9/S9/X92/S92)
Name Function
A
Remote Receiver
Receives signals from the remote control. s Quick Start
Guide
B
Audio port
Inputs audio from the audio out port on the other
equipment. s Quick Start Guide
C
Power inlet
Connects to the power cable. s Quick Start Guide
D
Video Input Port
For composite video signals from video sources.
E
Lamp Cover Fixing
Screw
Screw to fix the Lamp cover in place. s p.75
F
Monitor Out port
(EB-W9/X9/S9 only)
Outputs to an external monitor the image signal from the
computer connected to the Computer input port. This is
not available for component video signals or other signals
being input to any port other than the Computer input
port. s p.86
G
Computer input port
For video signals from a computer and component video
signals from other video sources.
Name Function
H
USB(TypeB) port
You can use the following functions by connecting to a
computer with a USB cable.
• USB Display s p.18
• Wireless Mouse s p.34
• Paging operation of document files such as PowerPoint
files s p.36
• Monitoring and controlling of the projector via USB
communication s p.88
I
S-Video input port
For S-video signals from video sources.
J
Audio Out port
Outputs the sound of the image currently being projected
to external speakers. s p.87
Part Names and Functions
