Useful Functions
50

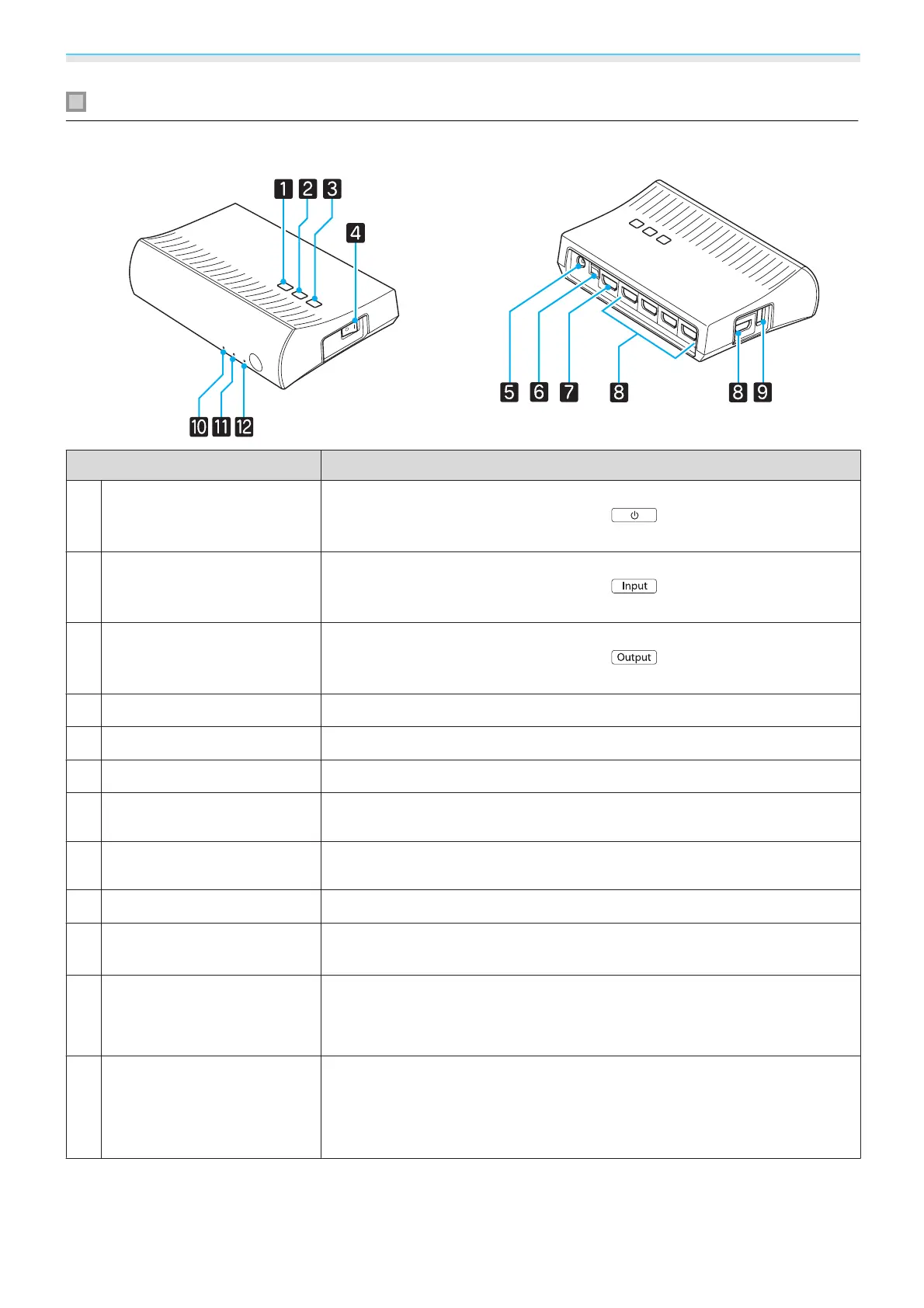

WirelessHD Transmitter part names
Front Rear
Name Function
a
t
button
Turns the transmitter on or off.
This performs the same function as the
button for WiHD Transmit-
ter control on the lower section of the remote control.
b
Input button
Changes to the image from each input port.
This performs the same function as the
button for WiHD Transmit-
ter control on the lower section of the remote control.
c
Output button
Switches the output image to the Wireless or Output port.
This performs the same function as the
button for WiHD Transmit-
ter control on the lower section of the remote control.
d
Main power switch
Turns the main power for the transmitter on or off.
e
AC adapter port
Connects the AC adapter.
f
Optical Audio-Out port
Connects to audio devices equipped with an optical digital audio input port.
g
HDMI Output port
Connects to other output devices, such as televisions. You can switch the
output using the Output button.
h
HDMI Input port
Connects to the AV device you want to playback. You can switch the input
image using the Input button.
i
3D Glasses charging port
Connects a USB cable to charge the 3D Glasses.
j
t
indicator
(orange/green)
Lit when the WirelessHD Transmitter is on. Lit orange when standing by,
and green when operating (receiving or transmitting images).
k
WiHD indicator
(orange)
Indicates the communication status for the WirelessHD.
•
Lit when wirelessly transmitting images to the projector.
•
Off when outputting to the Output port.
l
Link indicator
(orange)
Indicates the connection status with the projector.
•
On when projecting images from the projector.
•
Flashes when searching for a projector.
•
Flashes slowly when standing by in power saving status.
