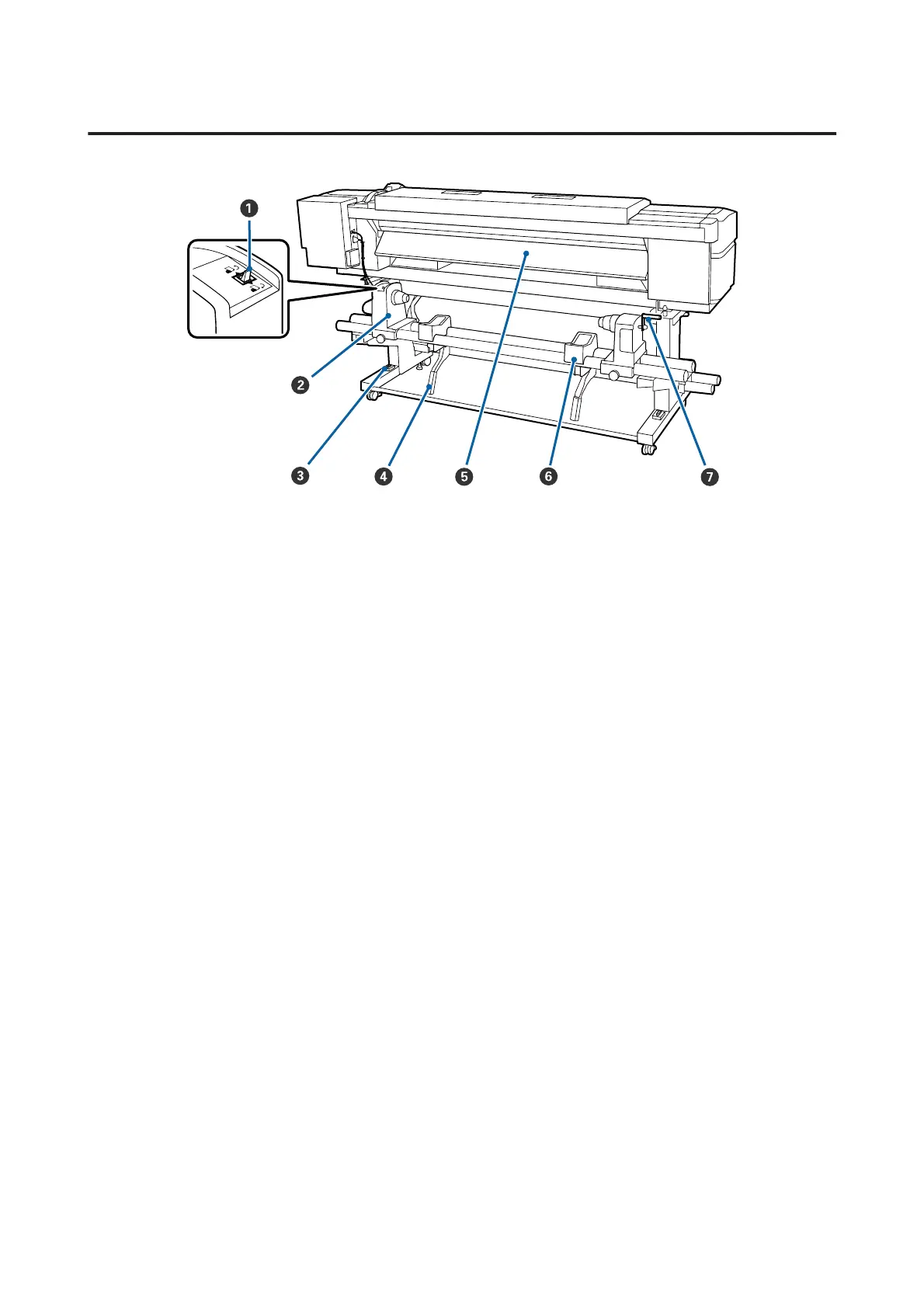

A Drive switch
The drive switch is used to feed the media during loading and to rewind the media for replacement.
B Roll holder
Place media on these holders. There are same parts on both the left and the right.
C Level gauge
When installing on a carpeted floor or a sloping floor, check the horizontal level of the printer. There are same parts
on both the left and the right.
U Setup Guide
D Lift lever
If the media to be mounted on the roll holders seems heavy, use these levers to raise the media effortlessly to the
level of the roll holders. There are same parts on both the left and the right.
E Pre-heater
Heats the media before printing so that the print area is not subject to sudden changes in temperature.
F Roll support
Rest media on these supports before placing it on the roll holders. There are same parts on both the left and the
right.
G Handle
After placing media on the right roll holder, rotate the handle to press the holder and apply pressure to the roll
core.
