Essilor ALM 700 User Manual

16

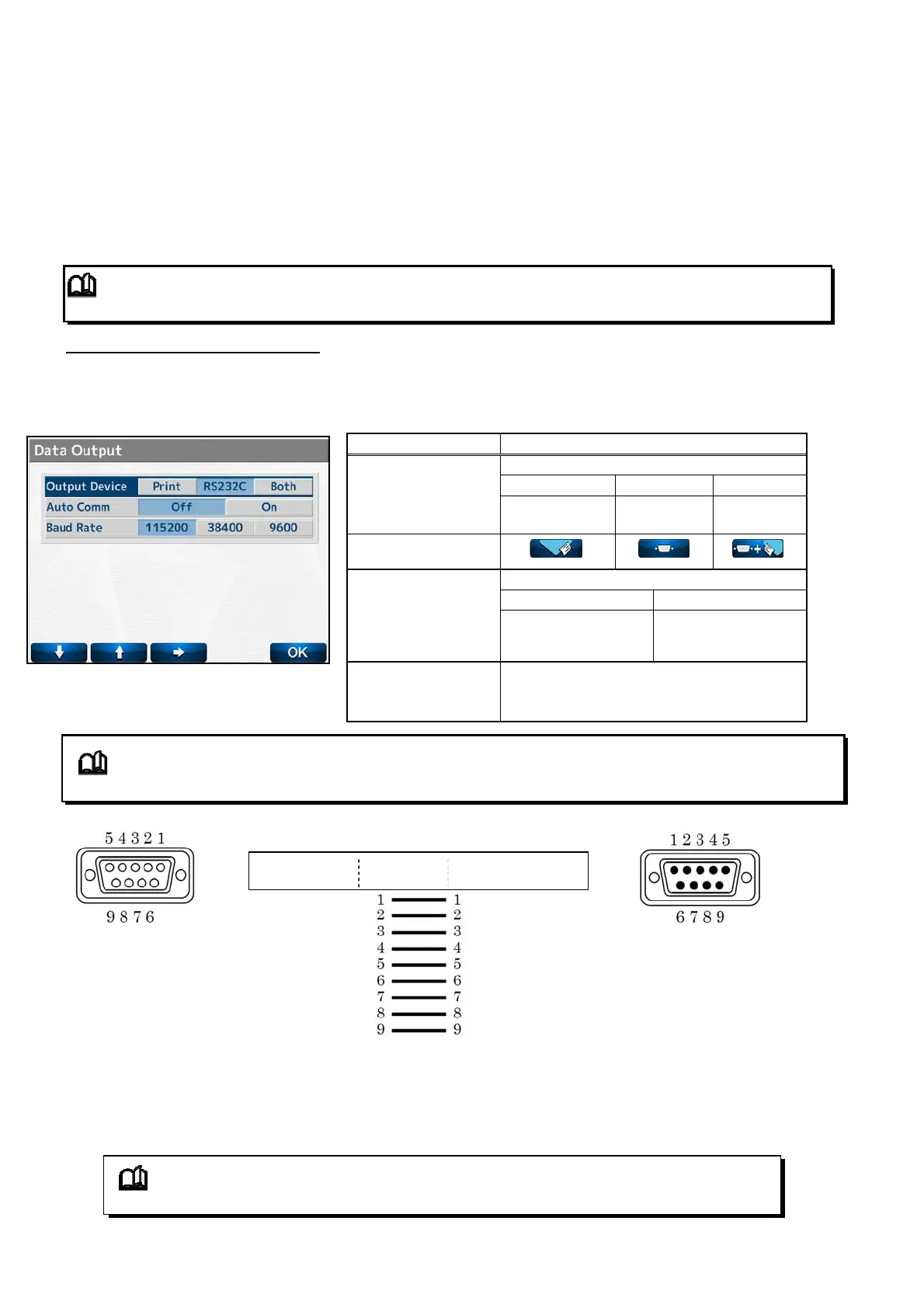

4.2.4 Data Output Screen
This screen is to set the communication parameter for outputting the measurement values to the
externally-connected PC etc.
The measurement values and data created on the “ID Screen” are output by selecting “RS232C” or
“Both” of “Data Output” on the Setup screen.
Communication setting to PC etc.
The communication from RS232C port is set on “Data Output”.
【Setting screen in case of outputting from RS232C】
【Example of connection】
Use the straight cable (D-sub 9 pin: male/ D-sub 9: female) as the connection cable at the
time of outputting the measurement values by using the RS232C.
※ Contact your local distributor if you have anything unclear or any questions regarding
operation and connection.
Item Description
Setting of output destination
Print RS232C Both
Output Device
Device
printer
RS232C
terminal
Both
Display on
measurement screen
Setting
“Off” “On”
Auto Comm
Output by touching
the measurement
screen output icon
Measurement values
are output
continuously
Band Rate
(communication
speed)
Select from 115200, 38400 or 9600.
The output content is same with the one of the printout.
However, the graph at the time of progressive lens measurement is not output.
NOTE
In case of output from RS232C, the data is output only in English regardless of language
setting.
NOTE
Use a shield wire for a connecting cable to protect the output data from noise.
NOTE
D-Sub 9pin
(male)
D-Sub 9pin
(female)
D-Sub: 9Pin
(male)
D-Sub: 9Pin (female)
Lensmete
PC
Connection
