5. Operating Instructions of Device

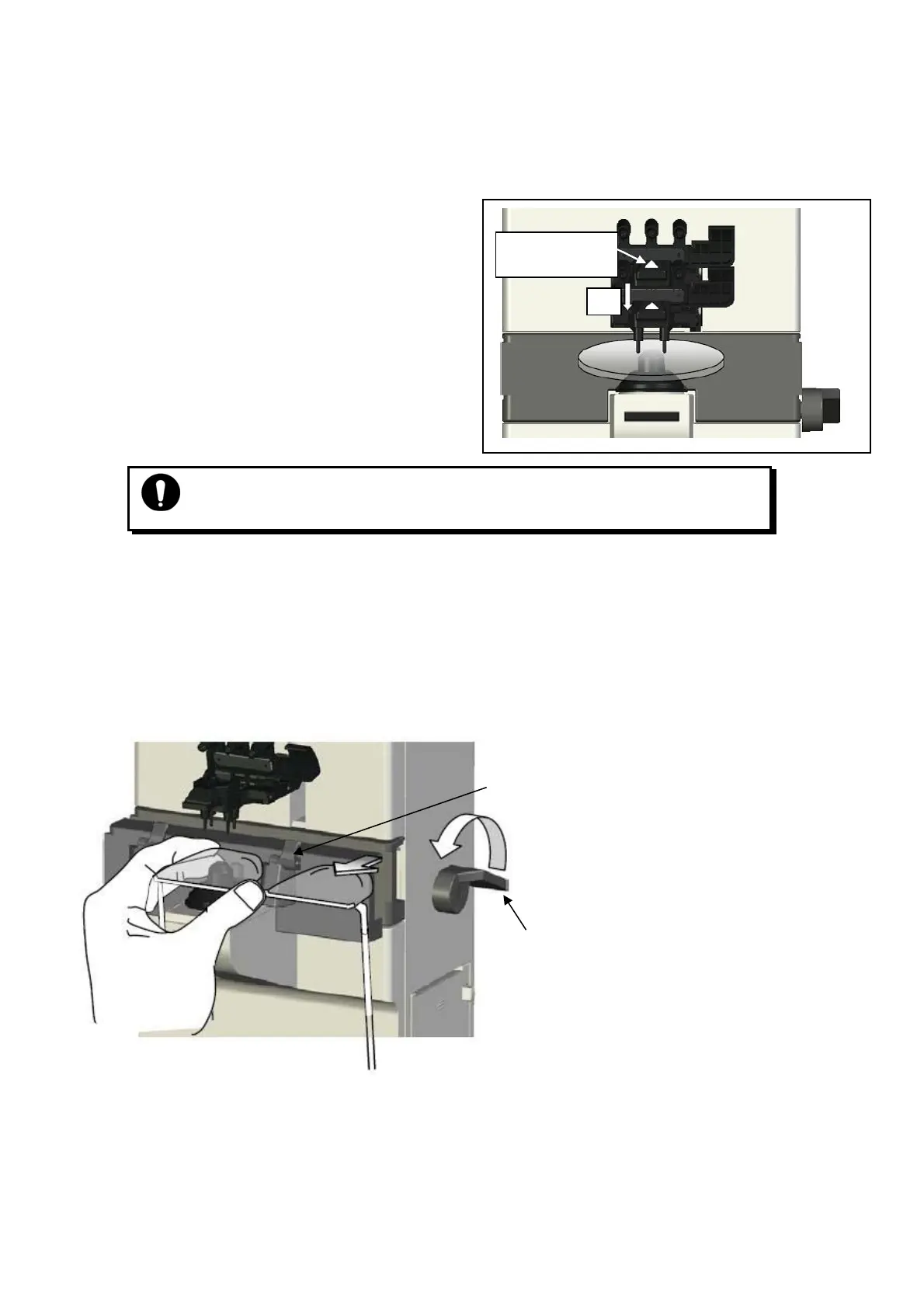

5.1 Lens Holder
（1） Raise the lever to the operational
direction until it is unlocked.
(2) Lower the lens holder slowly and fix
the lens.
5.2 Lens Plate
The lens plate is the reference of the cylindrical axis.
Place the framed lens and rotate the lens plate lever to the direction of the arrow so that the
bottom of the lens touches the lens plate. After that, lower the lens holder and fix the lens.
Do not give strong impact to a lens when lowering the lens holder.
When rising the lens holder, make sure to move to the top.
Lens plate
Lens plate lever
(1)
direction
Operational
