XT2+ Series DISK RECORDER – Version 10.05 - Hardware Technical Reference

EVS Broadcast Equipment SA – July 2011

3.4 RAID CONTROLLER BOARDS

3.4.1 HCTX BOARD

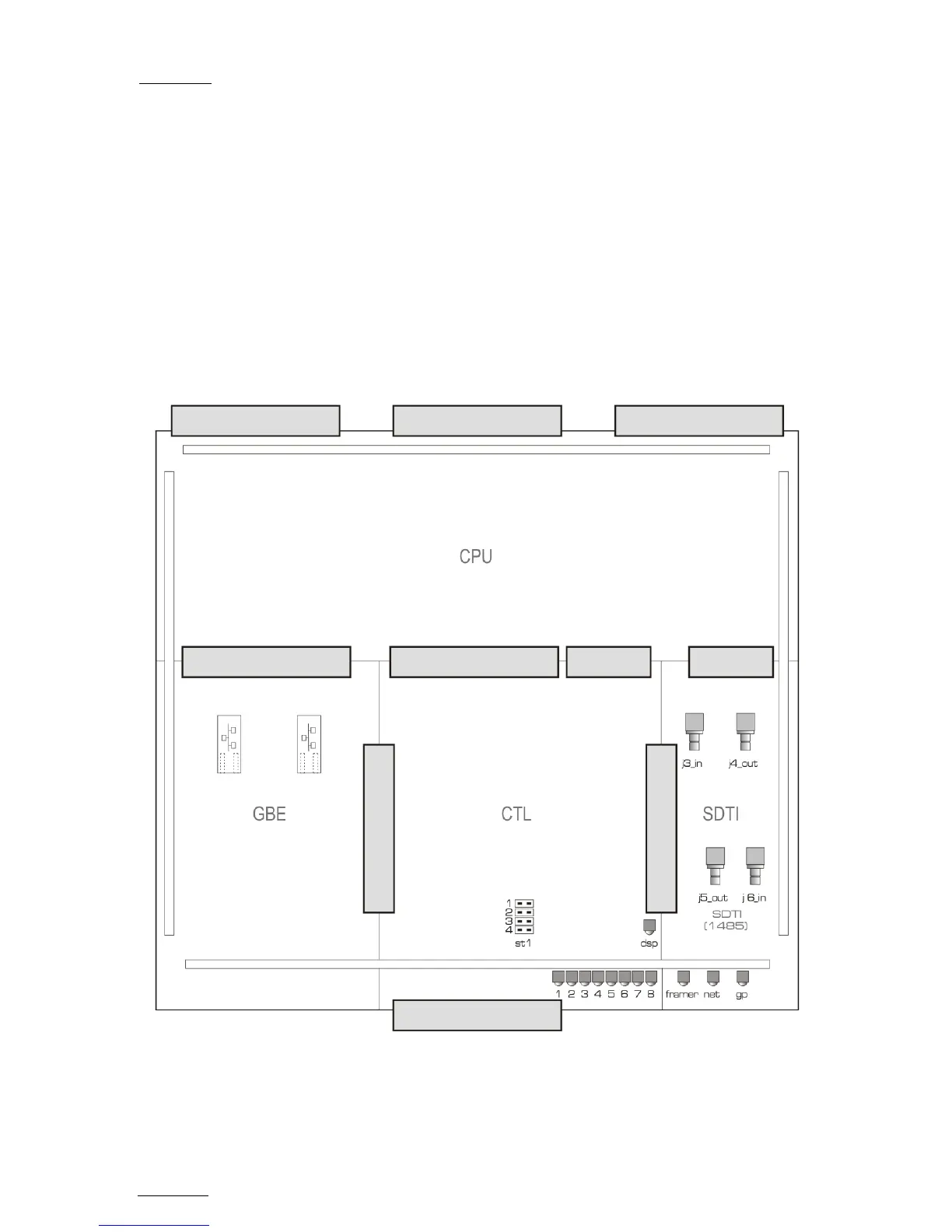

The HCTX board is actually divided in 4 parts (3 in front, 1 in the back).

• Front left : GBE module (GigE)

• Front centre : CTL controller module

• Front right : SDTI XNet2 module

• Back : CPU module
