Fortinet FortiGate FortiGate-3000 Install Guide

FortiGate-3000 and FortiGate-3600 FortiOS 3.0MR4 Install Guide
16 01-30004-0270-20070215
Package Contents Installing the FortiGate unit
Mounting
The FortiGate-3000 unit can be mounted in a standard 19-inch rack. It requires
2 U of vertical space in the rack. The FortiGate-3000 unit can also be installed as
a free-standing appliance on any stable surface.
Table 1: Technical Specifications
FortiGate-3600
• FortiGate-3600 Unified Threat Management System
• one orange crossover Ethernet cable (Fortinet part number CC300248)
• one gray regular Ethernet cable (Fortinet part number CC300249)
• one null-modem cable (Fortinet part number CC300247)
• two 19-inch rack mount brackets
• two power cables
• FortiGate-3600 QuickStart Guide
• Fortinet Tools and Documentation CD

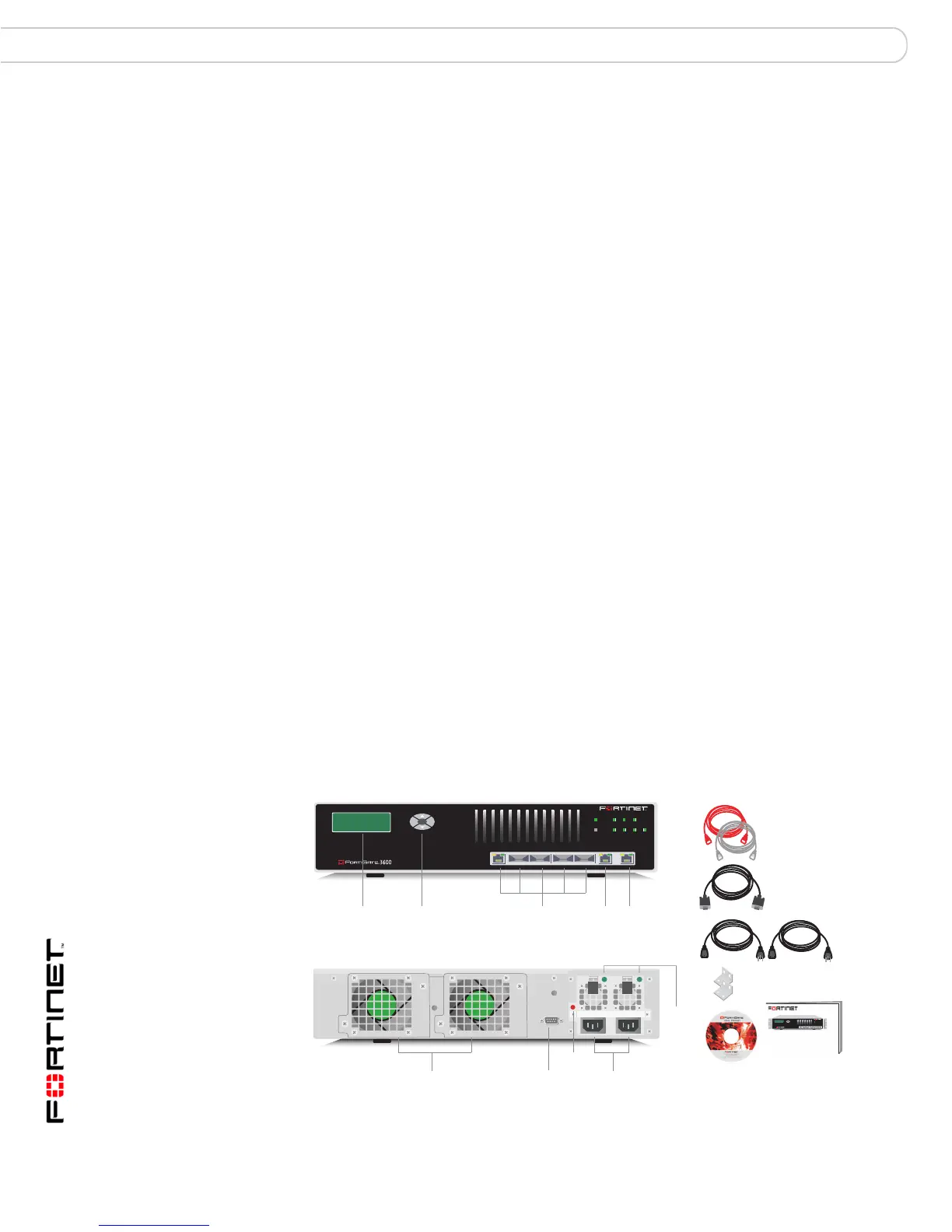

Figure 2: FortiGate-3600 package contents
Dimensions 16.75 x 13.5 x 3.5 in. (42.7 x 33 x 8.9 cm)
Weight 17.5 lb. (8 kg)
Power
requirements
Power dissipation: 360W (max.)
AC input voltage: 100 to 240 VAC
AC input current: 6A
Frequency: 50 to 60Hz
• The FortiGate-3000 unit may overload your supply circuit and impact
your overcurrent protection and supply wiring. Use appropriate
equipment nameplate ratings to address this concern.
• Make sure the FortiGate-3000 unit has reliable grounding. Fortinet
recommends direct connection to the branch circuit.
Environmental
Specifications
Operating temperature: 32 to 104 F (0 to 40 C)
Storage temperature: -13 to 158 F (-25 to 70 C)
Humidity: 5 to 95% non-condensing
Esc Enter
POWER
Hi-Temp 4
12
3
5/HA
INT
EXT
1
2
3 4 5/HA
INTERNAL EXTERNAL
Front
Back
Power Cables (2)
Rack-Mount Brackets
Null-Modem Cable
(RS-232)
Documentation
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
USER MANUAL
FortiGate-3600
QuickStart Guide
Copyright 2003 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
LCD
Display
Control
Buttons
1, 2, 3, 4, 5/HA
Interfaces
Internal
Interface
External
Interface
12345/HA
POWER
Hi-Temp 4
12
3
5/HA
INT
EXT
INTERNALEXTERNAL
Esc Enter
RS-232 Serial
Connection
Redundant
Hot Swappable
Power Supplies
Redundant
Hot-Swappable
Fan Assemblies
Power
Supply
LEDs
Alarm
Cancel
Button
