TGA100 Rev0106
25

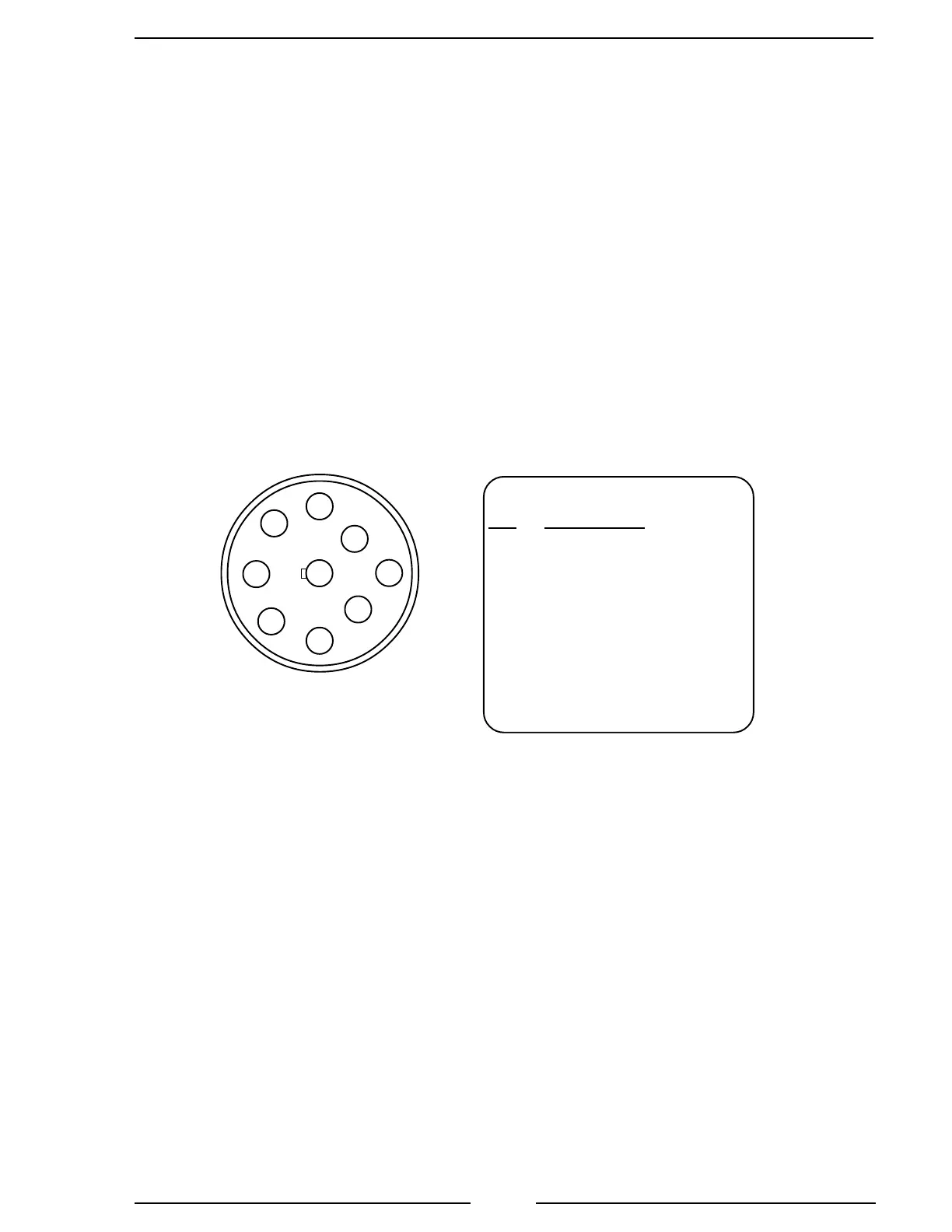

Typical 9-pin Deutsch Diagnostic Connector.
Commonly found under the driver side dashboard.
Common OME Connectors
Figure 7. Common OEM Connectors
FRONT
VIEW
B
F
E
A
C
D
G
H
J
9-Pin Connector
Pin Description
A BATTERY GROUND
B +12 VDC
C J1939 DATA LINK (+)
D J1939 DATA LINK (–)
E J1939 SHIELD
F J1587 DATA LINK (+)
G J1587 DATA LINK (–)
H PLUG
J PLUG
