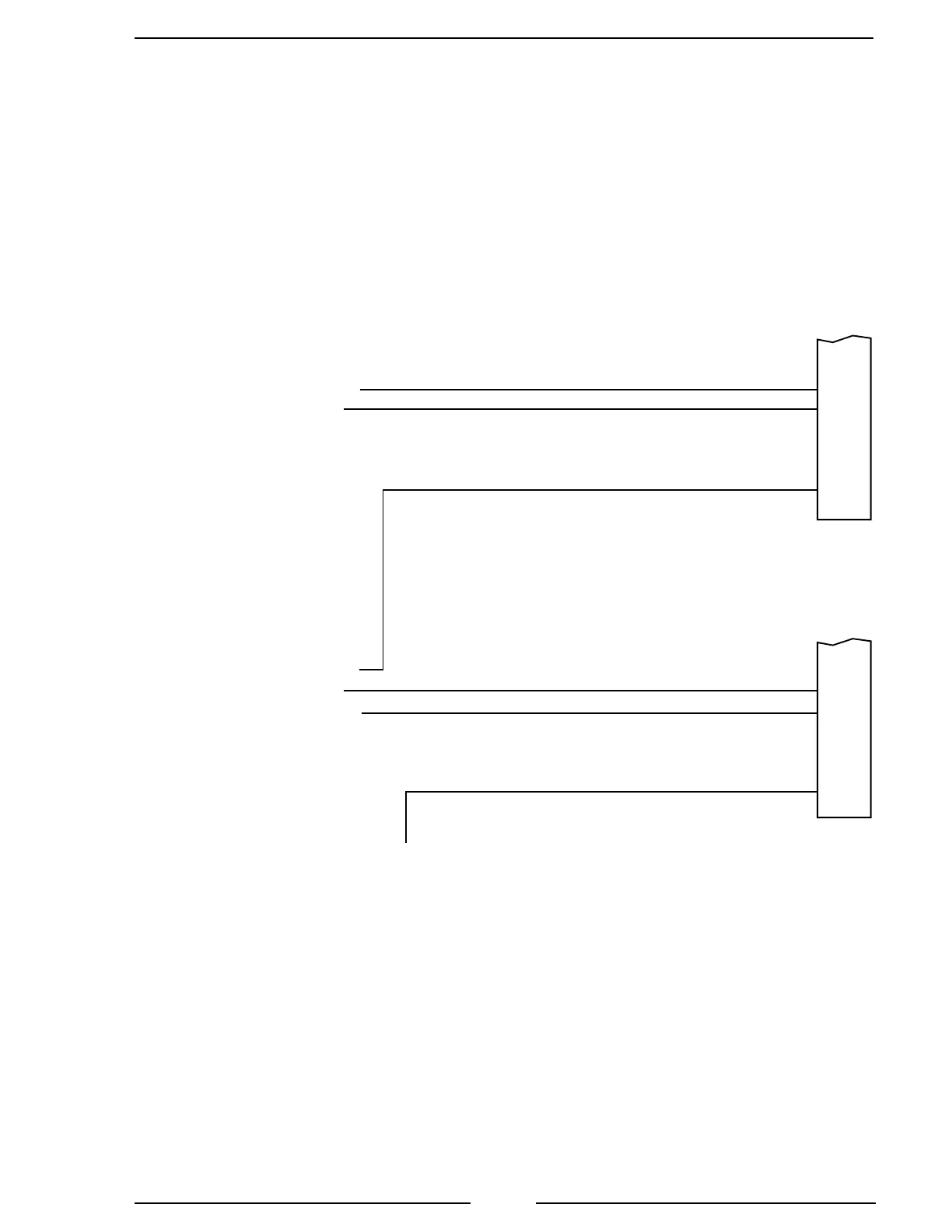

Figure 12. Mercedes TGA110/210 Wiring

Mercedes Harness Connections

Interface Information

J1587 (–)

Sensor Ground (Throttle Pedal & Remote)

Black Wire

Red Wire

Black Wire

J1587 (+)

VCU

21-Pin

Connector

VCU

18-Pin

Connector

Remote Throttle Signal Analog

Remote PTO Power Supply

Throttle Select

Red Wire

White Wire

Note: Supply a

ground when the

pump interlock

circuit is engaged.

8-Pin

Connector

(Refer to

Figure 5)

12-Pin

Connector

(Refer to

Figure 4)

J1587 Datalink
