FRC InControl TGA100 User Manual

TGA100 Rev0106
9

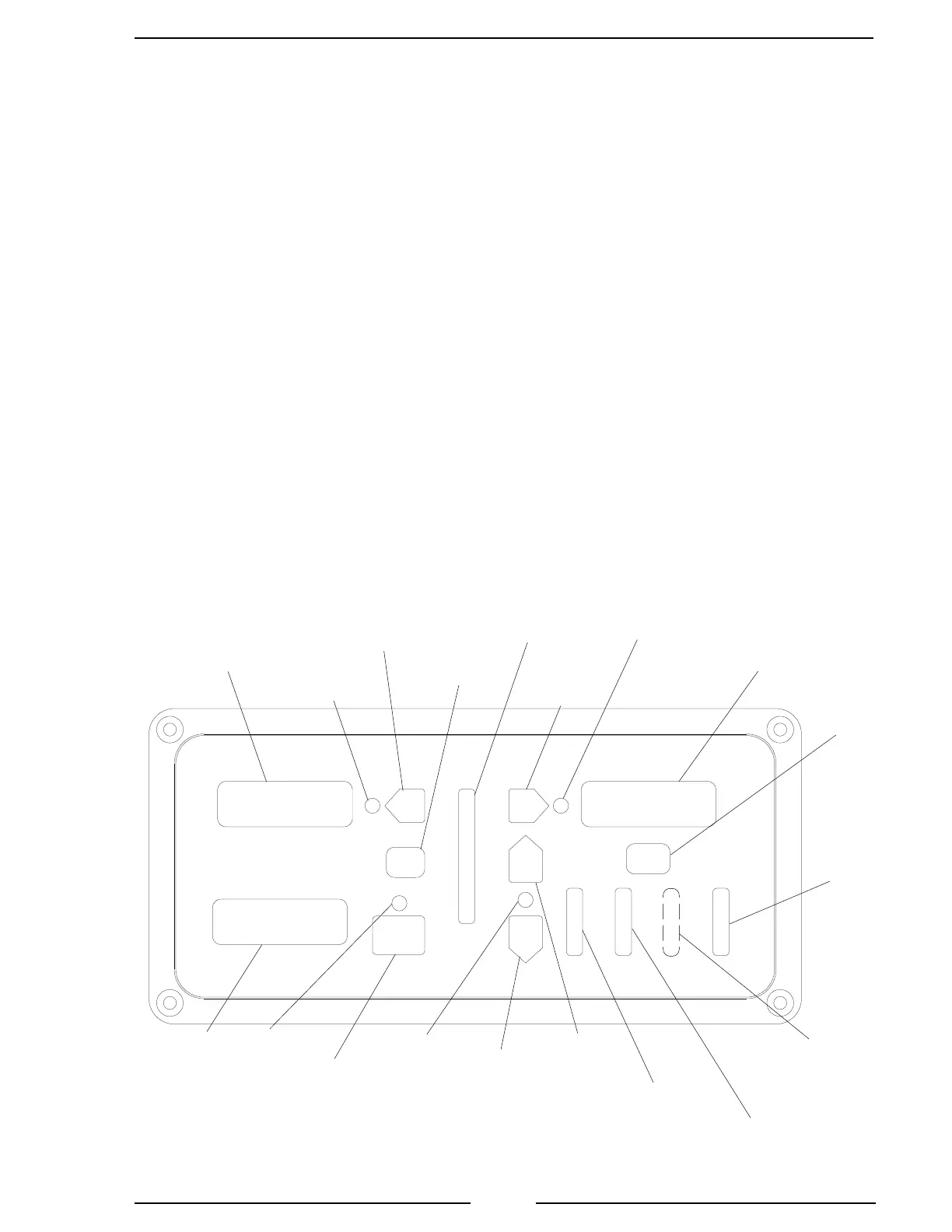

Figure 1. Controls and Indicators
PSI/RPM
Setting
Display
IDLE
Button
PUMP
DISCHARGE
Display
PUMP
INTAKE
Display
RPM
Display
PRESET
Button
DEC
Button
SILENCE
Button
RPM
Mode
Button
PSI
Mode
LED
OK TO
PUMP
LED
Battery
Voltage
Display
Engine
Temperature
Display
Idle
LED
PSI
Mode
Button
RPM
Mode
LED
Engine Oil
Pressure
Display
INC
Button
TGA200
Transimssion
Temperature
Display
INC Button
During operations the button raises pressure or RPM setting.
DEC Button
During operations the button lowers pressure or RPM setting.
OK TO PUMP Light
This LED will be on when the required interlock conditions are met and the governor
is ready to begin pump operations.
IDLE Button
When pressed immediately sets the engine RPM to idle. This button can be used
in an emergency or for normal shut down after operations.
Idle LED
This LED is on to indicate the engine RPM is at idle.
PUMP INTAKE Display
Shows the pump intake pressure during normal operations.
