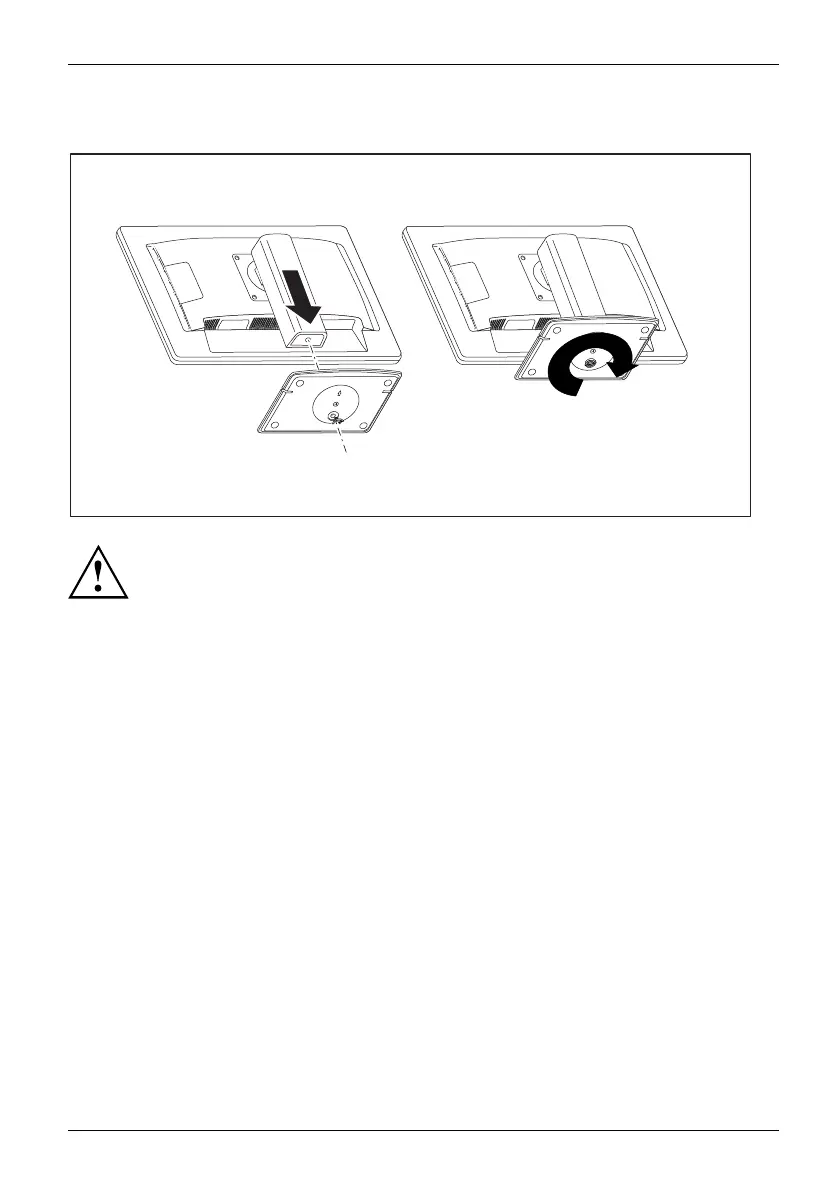

Attaching the base
2
1
3
Do not remove the locking pin before you have fixed the base plate on the Zero
Client and placed the Zero Client in the operating position.
► Insert the base plate on the foot (1).
► Guide the screw through the opening (2).
► Secure the base plate with the scr ew (3).
► Place the Zero Client in the operating position.
Adjusting the height
The height of the Zero Client can be adjusted by approximately 110 mm.
► Remove the r etaining splint on the rear of the height adjustmen t.
► Grasp the monitor with both hands at the left and right edges o f the
housing a nd move it up or down.
Adjusting the inclination
The mo
nitor of the Z ero Client can be tilted -3° (forwards) an d +35°
(back
wards) from the vertical position.
► Hold
the m onitor with both hands on the left an d right sides of the casing
and m
ove it to the desired angle.
