3.5.2 Display on terminal unit
The same items are monitored on both the terminal unit and the handset, with the
exception of the data and time indication. In addition to the system time, the terminal
unit has own time which is displayed at the upper right-hand corner of the terminal
screen. The time is set by using the following its procedure.
System time:
The Real Time Clock (RTC) on the CPU board generates date and time. When time
between RTC and ZDA from a navaid differs more than 30 seconds for 30 seconds or
more, the RTC is reset by using ZDA data. If ZDA is not available, RMC is used. Time
and date displayed on the handset are system time. Furthermore, the communication log
also uses system time.
Terminal unit time:
The file created on the terminal unit is labeled by this time. To preset time and date,
press [F4] [3] [1] and [F4] [3] [2] respectively.
Date 2001-01-10 Tx EIRP Level 000
Time 00:00:00(UTC) Tx RF Level 000
Rx C/N 053
Current Satellite POR Rx IF AGC Level 154
Channel Status SYNC
MES Status Ready Rx SYN OK
Tx OFF Tx SYN OK
Heading 270 DEG
Antenna Bearing 209 DEG
Antenna Azimuth 119 DEG Antenna Status REMOTE
Antenna Elevation 30 DEG El AXIS OK
AZ AXIS OK
Position LAT 34:00.00N Cross El AXIS OK
LOG 135:00.00E
NAV DATA NMEA Rx Channel 11292
GYRO OK Tx Channnel 10000
(01-01-10 00:00:00)
a
b
c
d
e
f
h
g

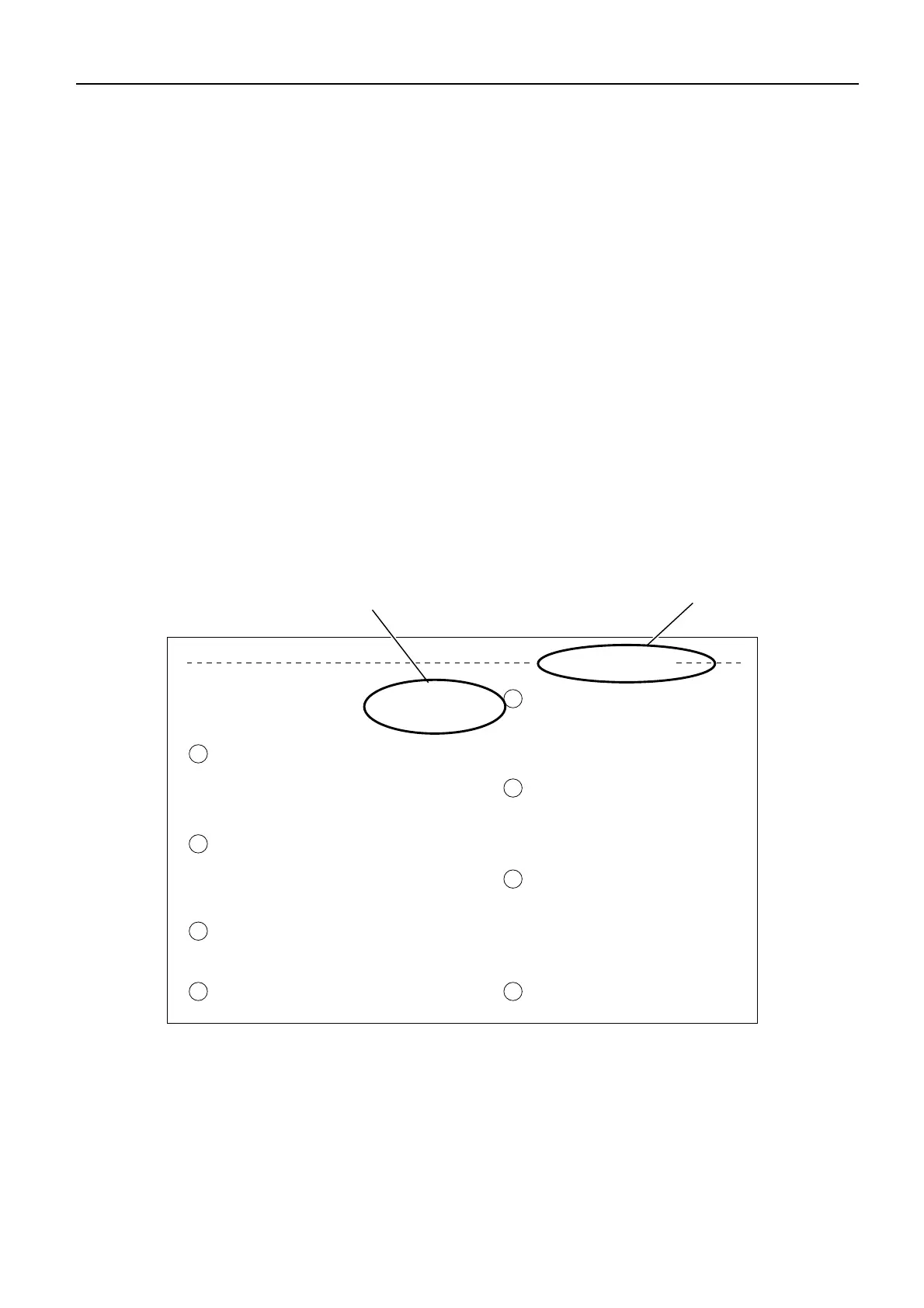

Terminal unit time
System time
To Next Page
