1. INITIAL SETTINGS AND ADJUSTMENTS
1-4
*: Does not require adjustment.
1.2 [Basic Setting] Menu

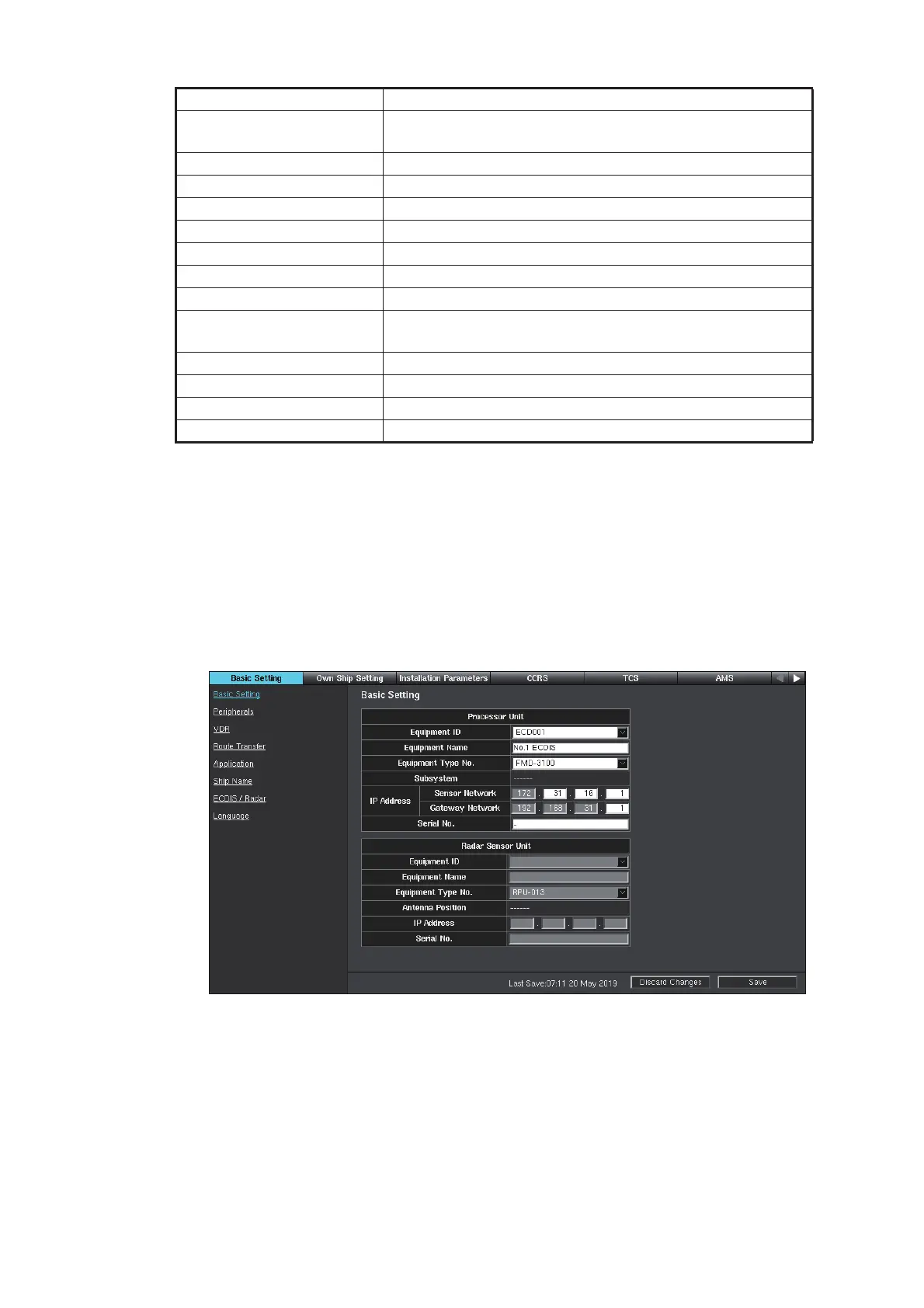

1.2.1 [Basic Setting] window
1. Access the [Common Installation Setting] menu, then click [Basic Setting] on the
tab bar.
2. Select the [Equipment ID] from the drop-down list (setting range: [ECD001] to
[ECD016]).
The [Equipment Name], [Equipment Type No.], and [IP Address] are automatically
entered according to the Equipment ID. For details, see the Equipment ID list at
the back of this manual.
Note 1: For the first ECDIS, set [Equipment ID] to “ECD001”.
Note 2: Assign a different [Equipment ID] to each unit in the network.
Tab bar menu item Description
[Basic setting] Sets the equipment ID, monitor, printer and own ship
information.
[Own Ship Setting] Enters the ship’s parameters and sensor positions.
[Installation parameters] Sets the system configuration and input/output data.
[CCRS] Sets the priority of the sensors and NMEA sentences.
[TCS] Not used for FMD-3100.
[AMS] Sets the AMS and relevant settings.
[Alert Define List] Sets the alerts.
[Data Sharing]* Sets the interlocking system between units.
[Save and Sync] Saves and synchronizes the settings. Settings can also be
saved to a removable medium.
[System Monitor] Confirms the system condition.
[Software Update] Updates the software.
[Factory Test and Default] Performs the factory test or restores default settings.
[Conning] Configures the mini-conning display.
