1. INITIAL SETTINGS AND ADJUSTMENTS
1-49

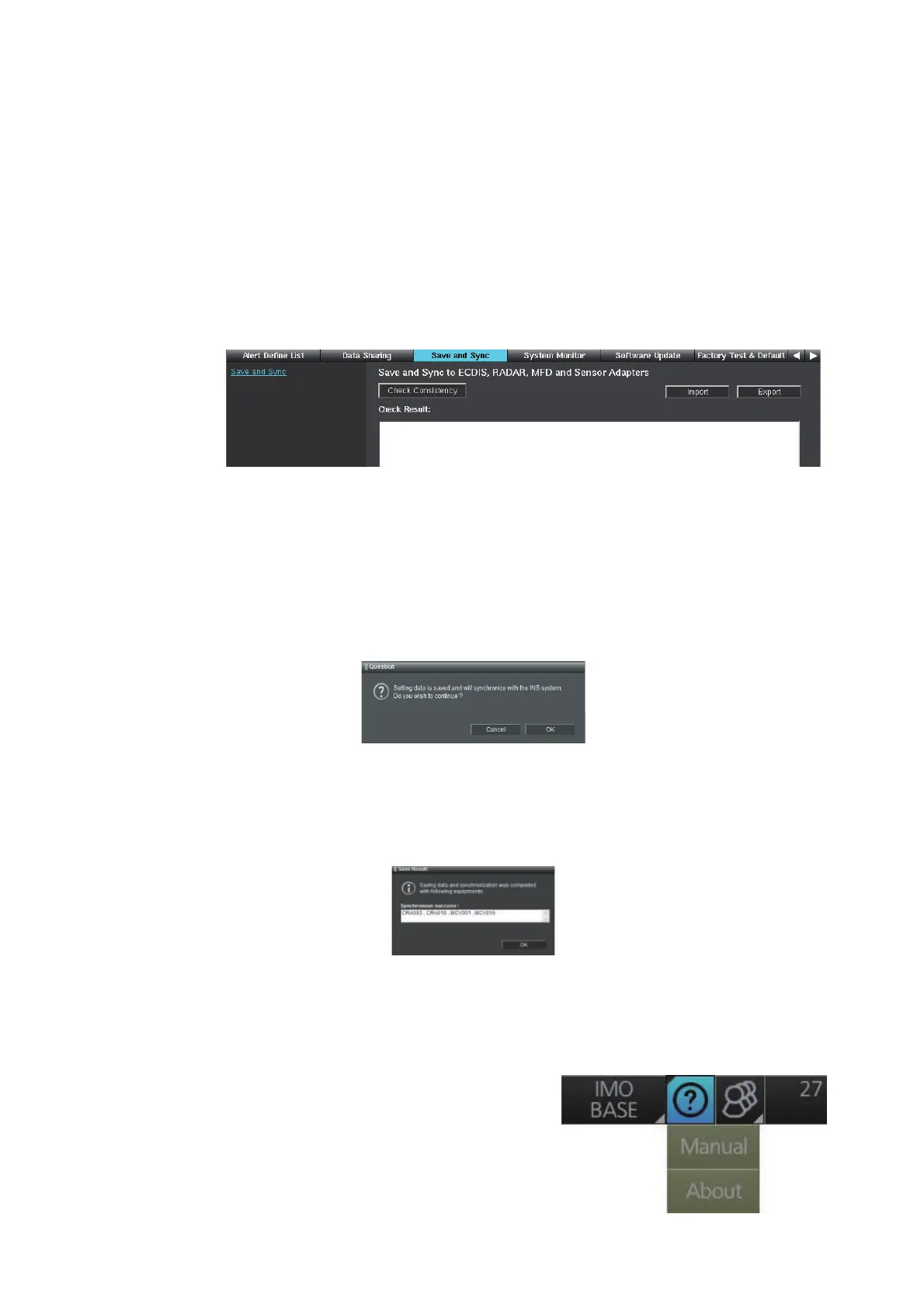

1.10 [Save and Sync] Menu
After completing the settings on the [Own Ship Setting], [Installation Parameters],
[CCRS], [TCS], [AMS] and [Alert Define List] menus, confirm the consistency of the
configuration and save it on this menu. By saving the configuration, the configuration
data can be copied to other units connected to the network. The configuration data can
be saved to a medium and loaded to a unit.
1.10.1 Consistency check and save the configuration
1. Access the [Common Installation Setting] menu and click [Save and Sync] on the
tab bar.
2. Click [Consistency Check] to confirm the consistency of the setting.
When the consistency check is completed, the result of the check is shown.
If an inconsistency is detected, an error message appears. You can not save the
configuration until the inconsistency is corrected. Check the setting and correct
the inconsistency, then perform the consistency check again.
3. When the message “Check consistency completed, you can save data. Please
push the “Save” button” is shown, click [Save] in the Info bar.
The pop-up message shown below appears.
4. Click [OK] to save the configuration.
If other ECDIS units and Sensor Adapters are connected to the network, a
confirmation message similar to the one shown below appears. The message
does not appear if a unit in the network is not powered. Click [OK] to save the
configuration.
Note: If you did the consistency check and save after entering settings on [Own
Ship Setting], reboot the unit.
5. After saving the configuration, confirm that the Equipment ID of all units are
correct.
• Panel PC PCU-3010
Check the Equipment ID as shown be-
low.
1) Click the [?] button on the Status
bar.
2) Click [About].
To Next Page
