22. SETTINGS MENU
22-13
22.11.1 How to export screenshots
You can export screenshots to a USB flash memory as follows:
1. Insert a USB flash memory in a USB port on the PCU.
2. Open the [Screenshot] page.
3. Put a checkmark in the checkbox of the screenshot(s) to export.
4. Click the [Export] button.

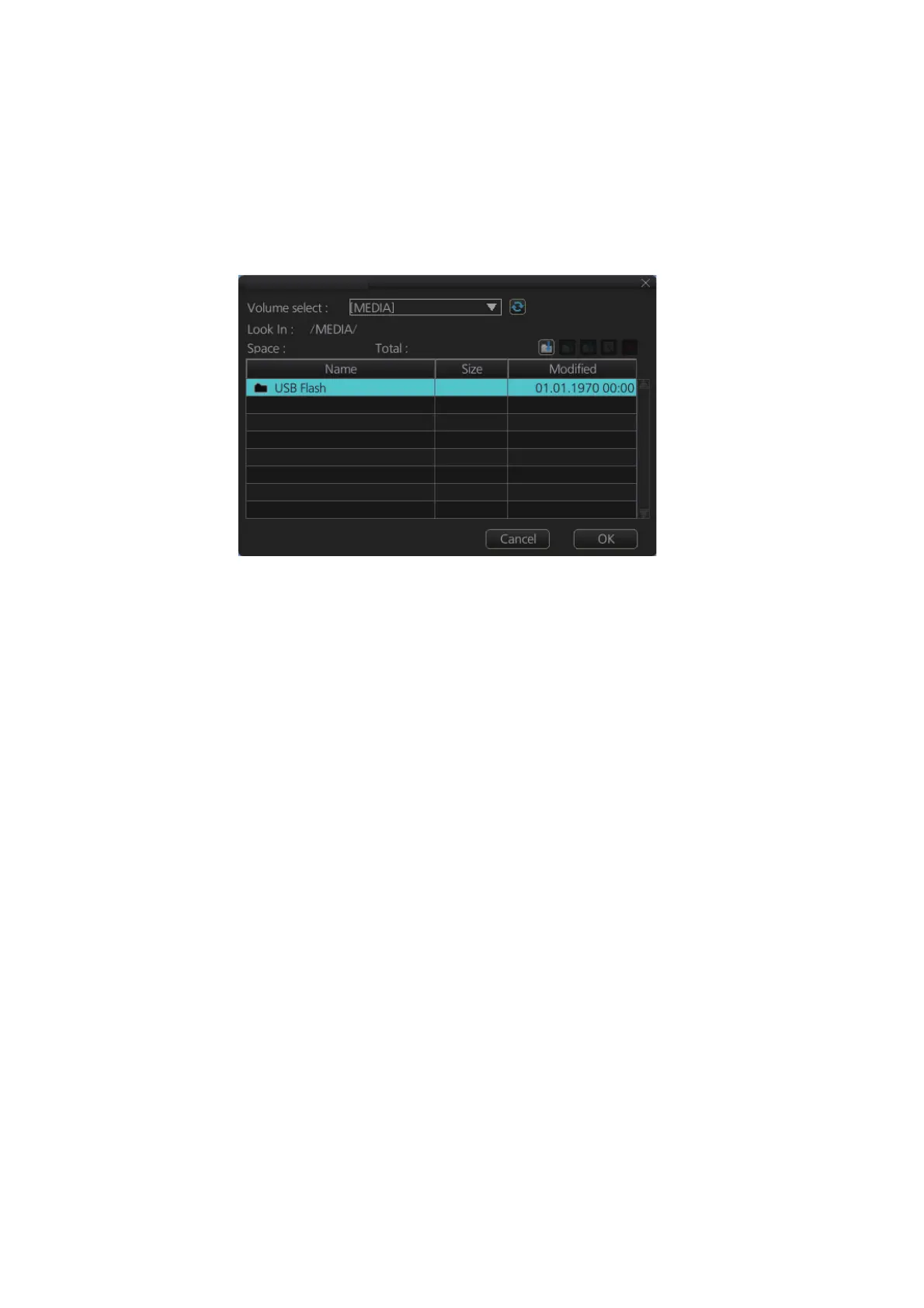

5. Select the USB flash memory.
6. Click the [OK] button to export the screenshots selected.
22.11.2 How to delete screenshots from the PCU
1. Select the [Screenshot] page.
2. Put a checkmark in the checkbox of the screenshot(s) to delete. To select all
screenshots, right-click the box to the left of the [Date] column then select [Select
all]. To clear all check marks, select [Clear all].
3. Click the [Delete] button. You are asked "Selected files will be deleted. Do you
wish to continue?"
4. Click the [Yes] button to delete the screenshots selected.
22.11.3 How to print screenshots
With connection of a printer you can print the screenshots stored in the SSD of the
processor unit.
1. Select the [Screenshot] page.
2. Select the screenshot to print. Note that multiple screenshots cannot be printed at
the same time.
3. Click the [Print] button.
4. Click the [OK] button to finish.
