1-6

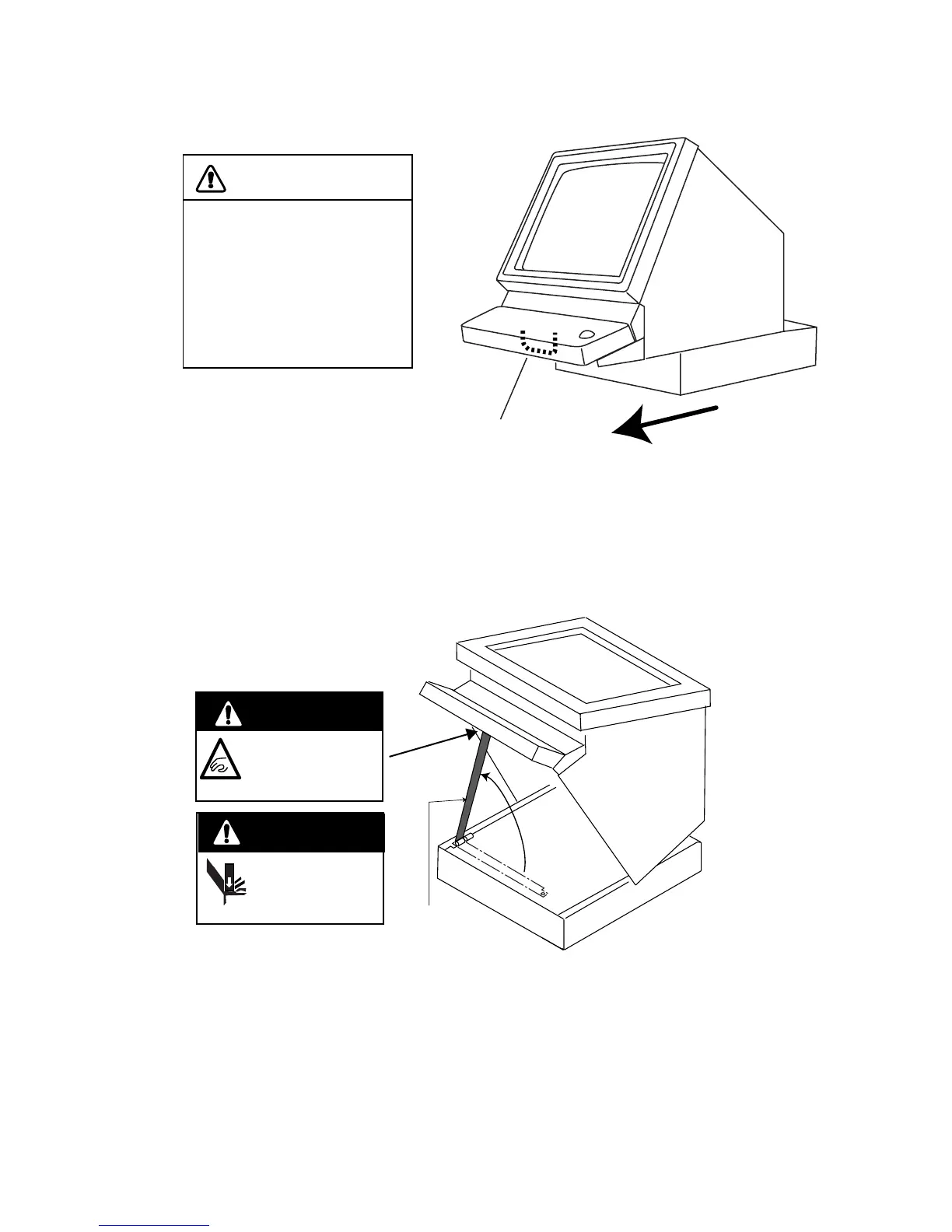

4. While one person is holding the mounting base at the sides, pull the handle on
the underside of the control head to draw the display unit toward you until you
hear a click.
Pull forward
Handle
Figure 1-7 Display unit
5. This step requires two people to complete. While raising the monitor until the
CRT is horizontal, fix the stay as follows:
a)Raise the stay as shown below.
Stay
HORIZONTAL
WARNING
Possibility of injury.
Hold handle when
mounting display unit.
Display unit may fall.
Lock stay before
servicing.
Two warning labels on
the underside of monitor
WARNING
Figure 1-8 Display unit, inside view
CAUTION
Use two people to complete
this step.
The display unit may fall to
the deck when it is pulled
forward, since the mounting
base is not yet fastened to
the mounting location.
To Next Page
