3-4

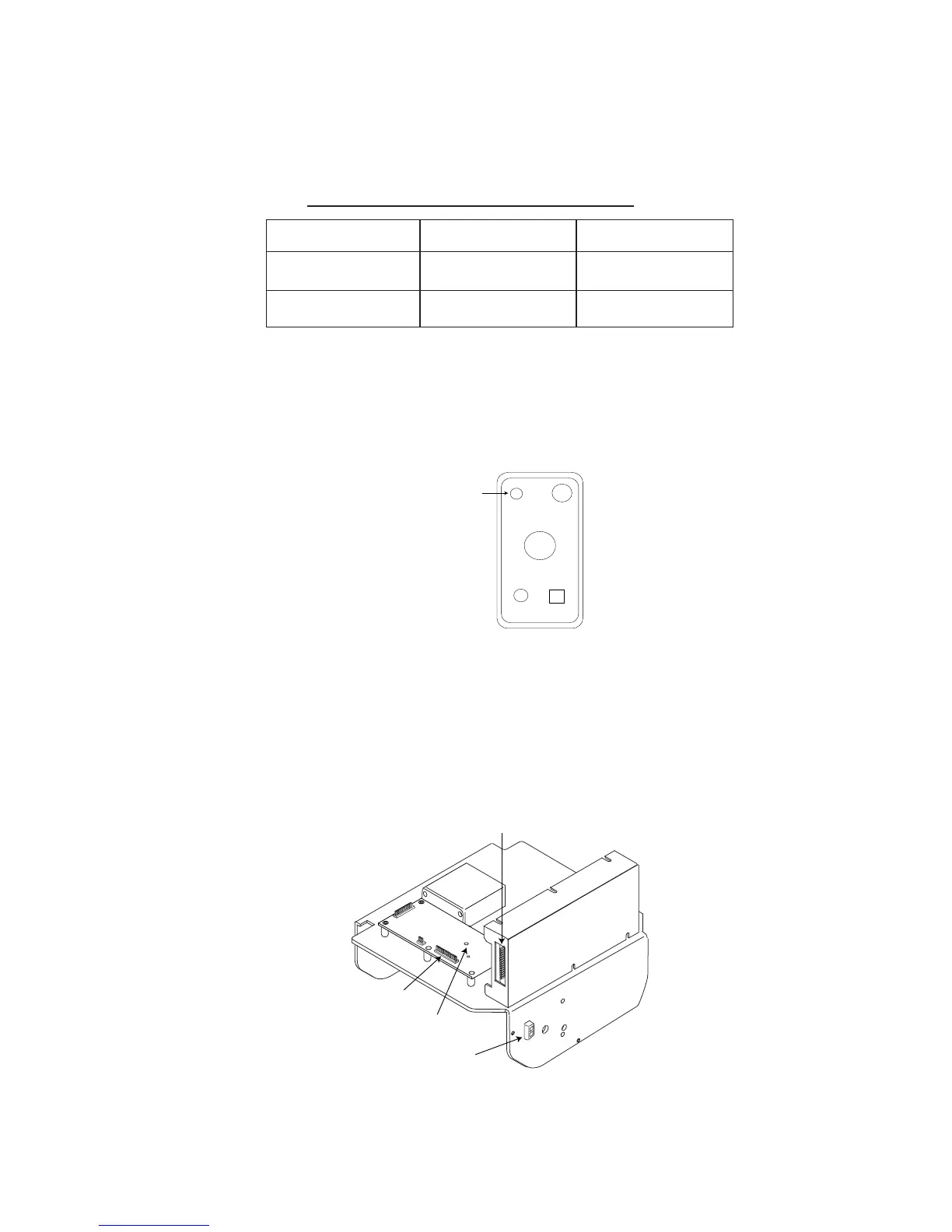

3.7 Confirming Magnetron Heater Voltage
Magnetron heater voltage is adjusted at the factory. However, confirm that it is
within the prescribed rating.
Table 3-1 Magnetron heater voltage rating
gnitaR)Wk21(5112-RF)Wk52(5212-RF
mn521.0,YB-TSV6.7-V4.7V4.8-V2.8
egnarxam,XTV6.7-V4.7V5.7-V5.6
1. Press [RADAR MENU] [0] [0] [0] [2] [0] to open the INITIAL SETTING2 menu.
2. Press [5] to select the 5. SCANNER STOPPED field and the TX option.
3. Disconnect connector P821 from the scanner unit.
4. Turn off the antenna switch in the display unit.
Figure 3-4 Antenna switch in tuning compartment
5. Turn off screen brilliance.
6. Measure voltage between pins #12(+) and #5(-) on connector P801 on the
RFC Board (03P9243) in the scanner unit.
7. If the voltage is not within the rating shown in Table 3-2, adjust potentiometer
VR1 on the RFC Board.
J611
J821
J801
VR1
03P9243
Figure 3-5 RFC Board
To Next Page
