4-10
4.3 RP Board RP-26
The RP Board RP-26, which providesvideo plotter functions, consists of a circuit
board and a card drive both of which are accommodated in the display unit of the
FR-2105 series radar.
Table top/console type
Necessary Parts: RP-26-T-2E (008-485-520)
emaNepyTytQ.onedoC
draobPR8920P411046-784-800
.yssaesacdraC–1–
BwercsdaehnaPW0072C8x4M4544-188-000
BwercsdaehnaPW0072C8x3M2404-188-000
AwercsdaehnaPW0072C5x6.2M2379-008-000
rehsawkcoldehteeT
)hteetedistuO(
W1915C4M1605-468-000
.yssaelbaC25-A-A-D001-6FIH1355-731-000
1. Lift the monitor and fix it with the stay. Refer to Chapter 1 for instructions.
2. Remove the right arm cover from the control head.
3. Fasten the card case to the right arm cover as follows:
a) Fasten the ground wire with an M4x10 screw and washer (supplied) as shown
below.
b) Fasten the arm cover to the card case with three M4x8 screws (supplied).
Right arm cover
Panhead screw
M4X8@
Panhead screw
M4X8@3 pcs.@
Toothed lock
washer M4@
Card case
Ground wire

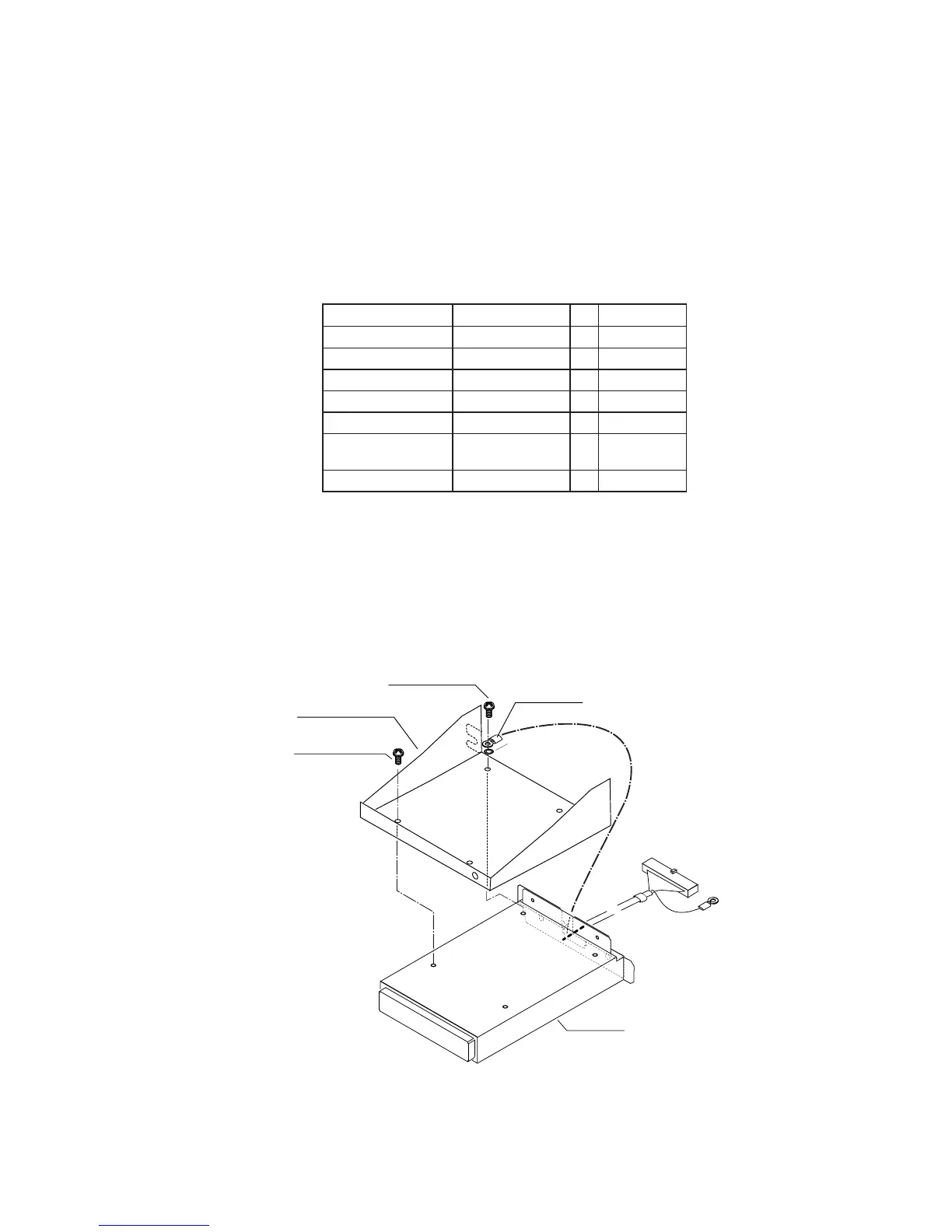

Figure 4-9 Fastening the card case to the right arm cover
To Next Page
