1-7

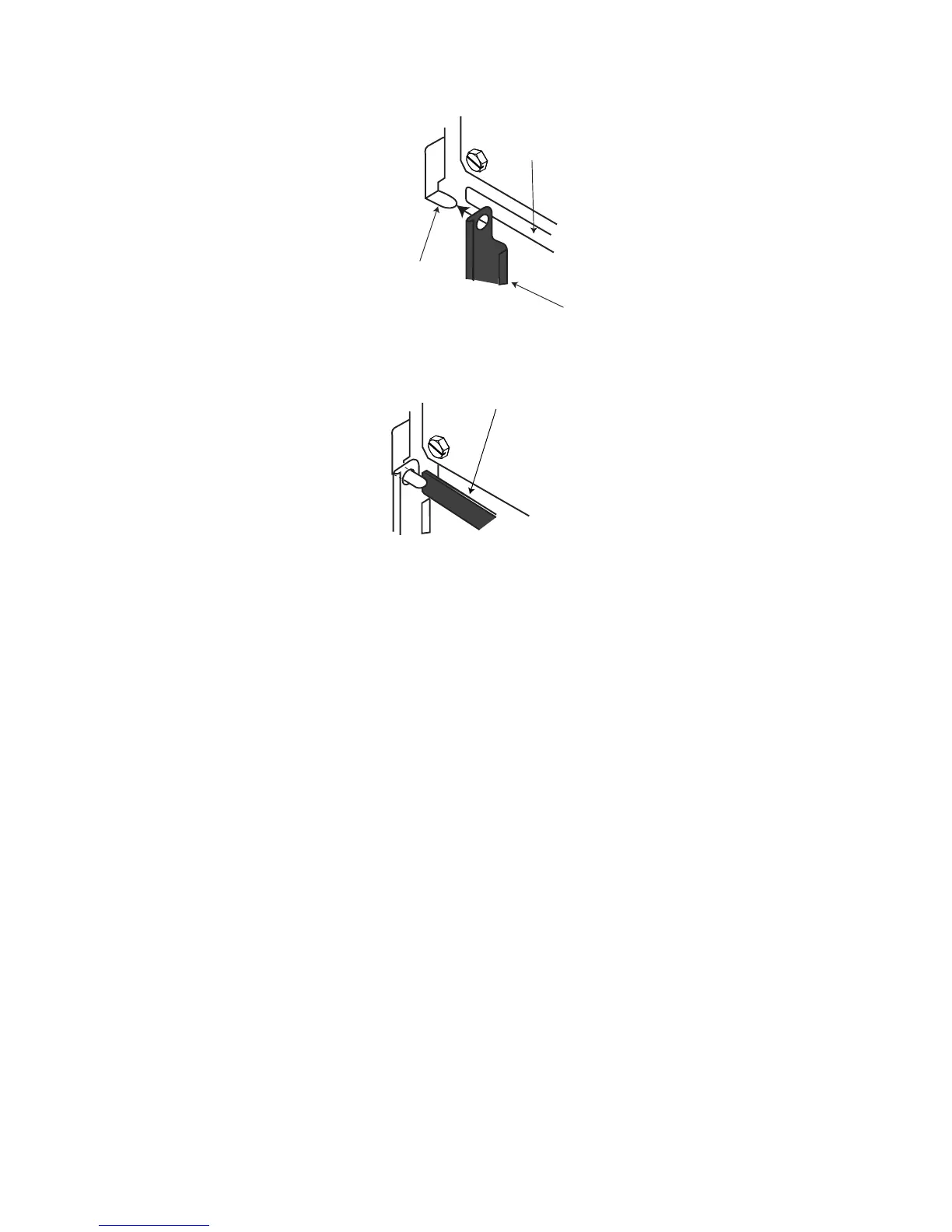

b)While pushing the stopper, set the catch on the display unit in the hole at the
front edge of the stay.
Catch
Stopper
Stay
Figure 1-9 Setting catch to hole in stay
c) Release hand from stopper.
Release stopper;
fix stay.
Figure 1-10 Stay fixed
6. Fasten the display unit to the mounting location at front fixing holes (2 points)
with M10 bolts, nuts and flat washers, using the pipe box spanner (supplied).
7. Retract the stay and lower the monitor.
8. The rear left fixing hole is hidden under the PTU board cover. Remove the
cover as follows:
(1)Unfasten five M3x8 screws at the top of the PTU cover and two M4x8 screws
at the front of the cover to slide the cover toward you.
To Next Page
