2-1
WIRING
2.1 Scanner Unit
Transceiver module
(magnetron inside)
Height more
than 5 cm
Non-ferrous
block
CAUTION
The magnetron in the transceiver module will de-
magnetize if it contacts ferrous material. When
dismounting the transceiver module, lay it on its
side or on top of non-ferrous material as shown
below.
1. Open the scanner unit cover.
2. Disconnect plugs P611, P801 and P821.
3. Unfasten the transceiver module (two bolts). Remove the transceiver module.
J611
J801
J821
Fixing
bolts

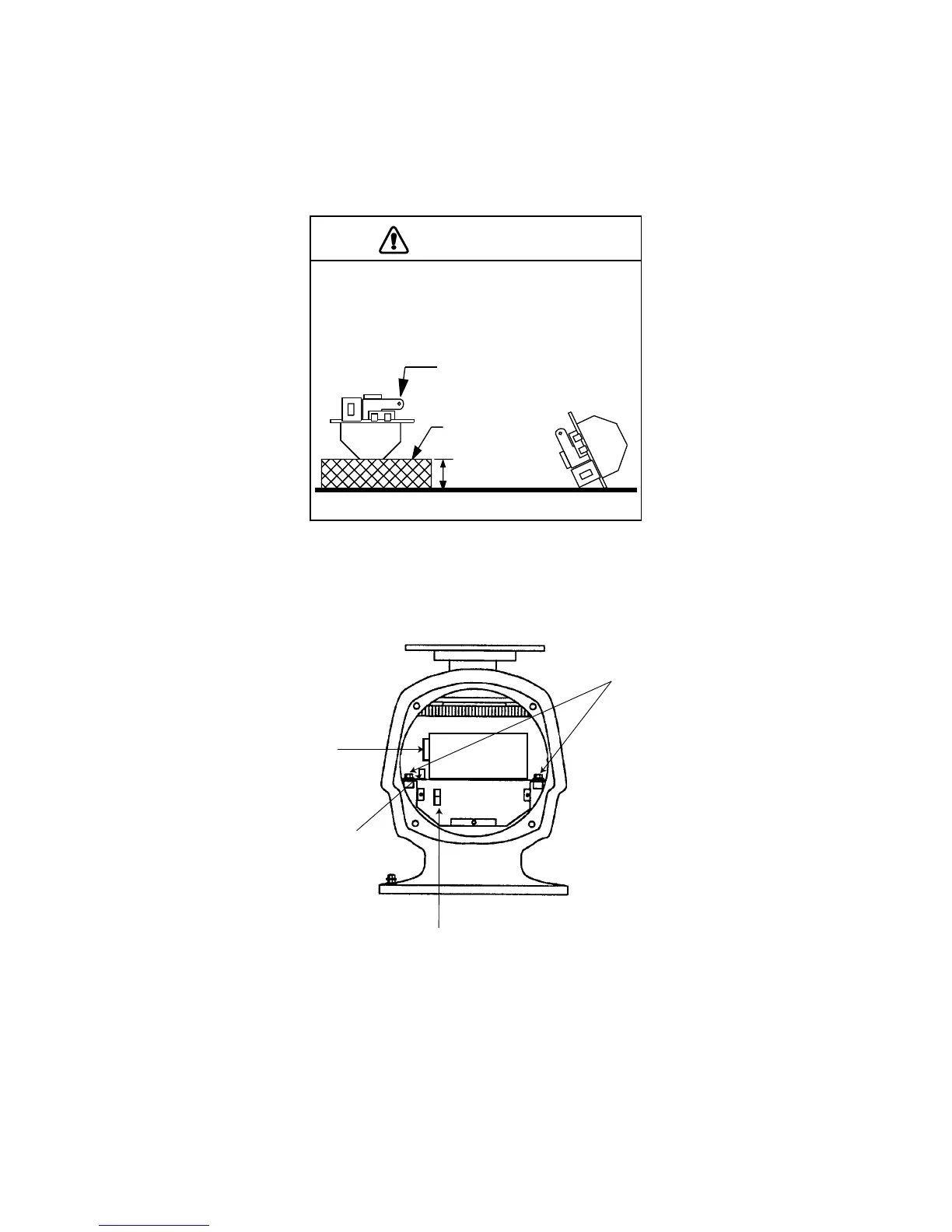

Figure 2-1 Scanner unit, front view
To Next Page
