4-7
4.2 ARP Board ARP-26
The ARP Board ARP-26, which provides ARPA functions, is an optional circuit
board which is accommodated in the display unit of the FR-2105 series radar.
Necessary Parts: ARP-26-2E (008-485-500)
emaNepyTytQ.onedoC
draobPRAB2009P811056-374-800
Installation of the ARP board
1. Remove the bottom cover of the display unit by unfastening four screws.
2. Set the ARP Board in the center slot of the PCB card case.
Display pedestal
Top: RP Board (Option)
Middle: ARP Board (Option)
Bottom: SPU Board

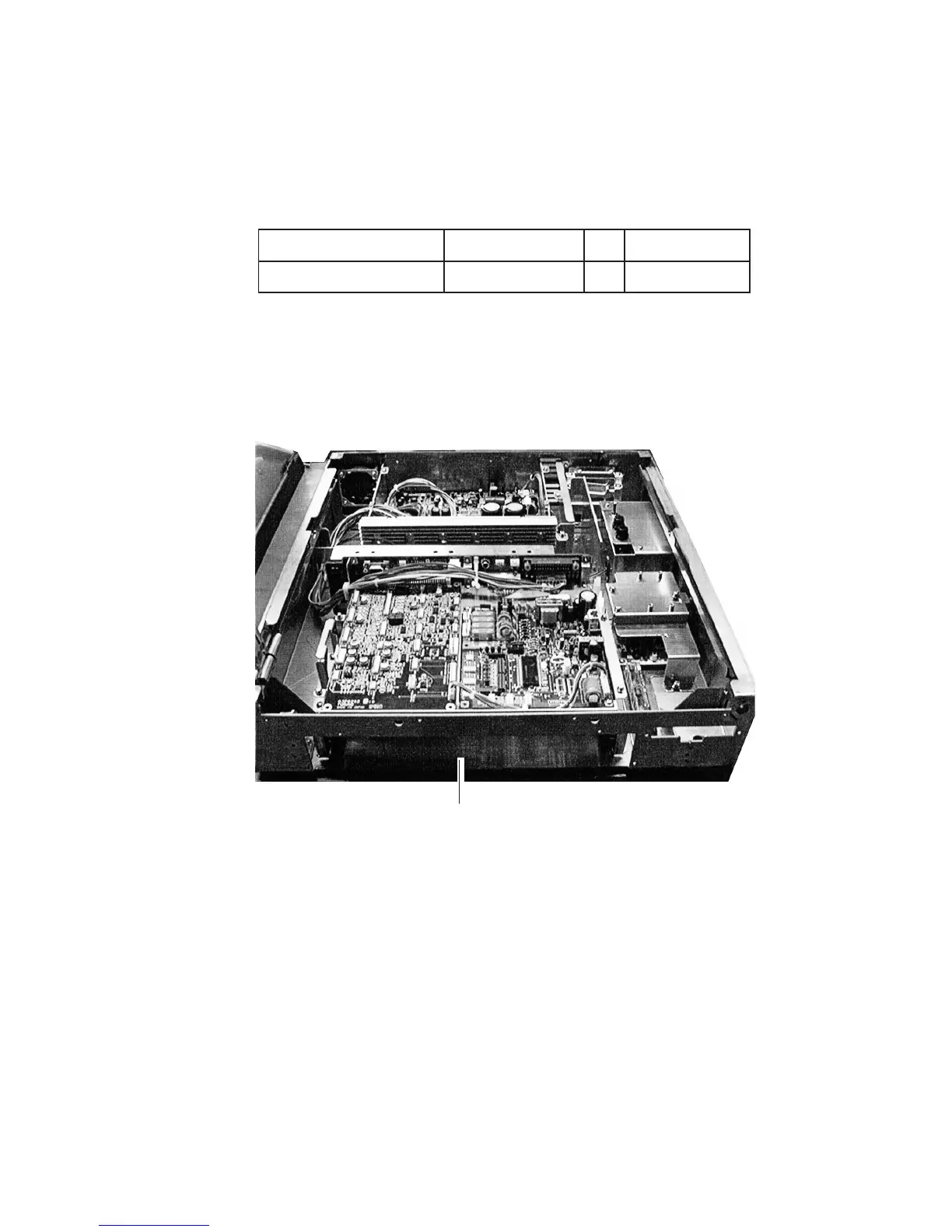

Figure 4-5 Display pedestal inside view
3. Adjust the ARP referring to the procedure on the next page.
To Next Page
