4-13
M-card base
M-card
case lid
Pan Head
Screw
M2.6X5
(2 pcs.)
Control section
Control section
front panel

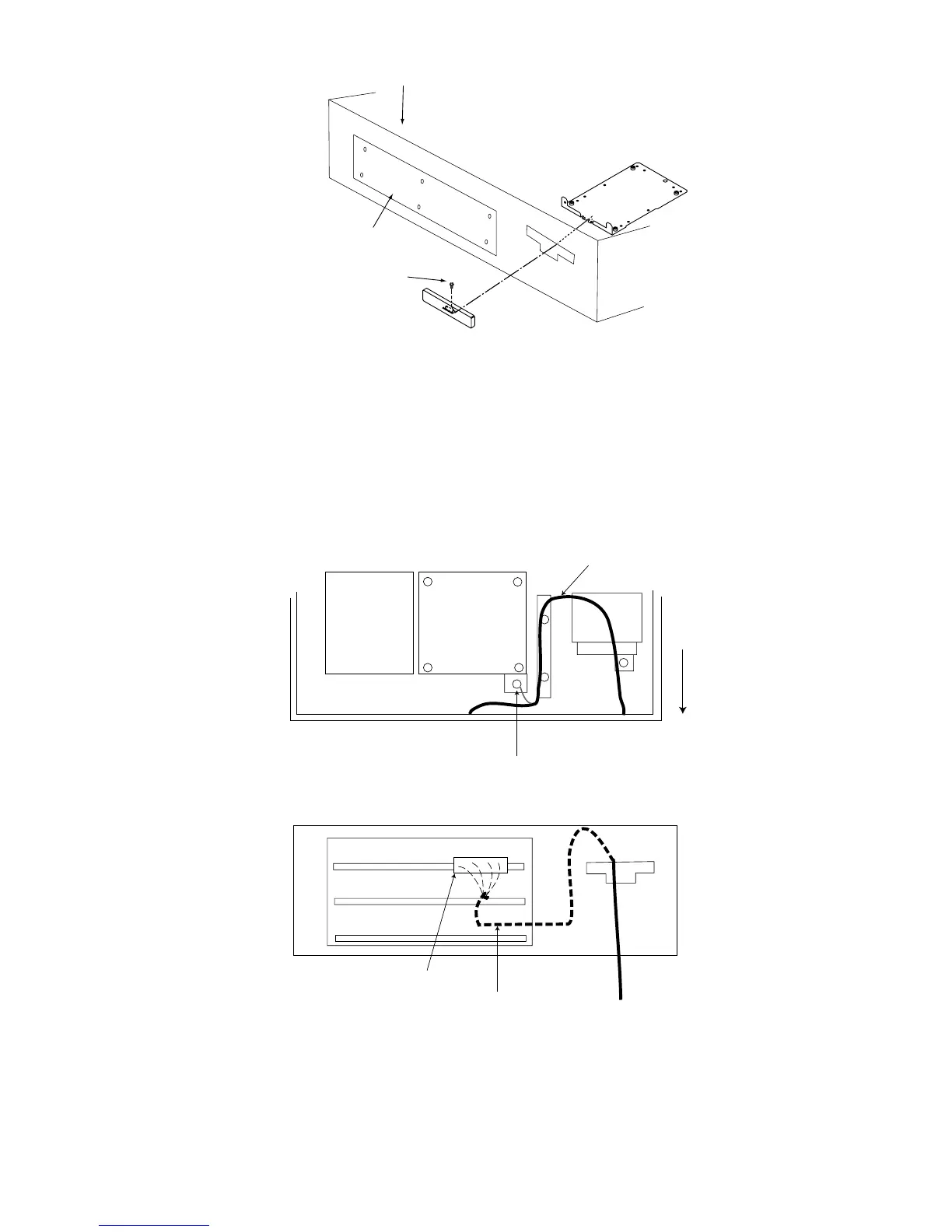

Figure 4-13 Display pedestal, front view
5. Loosen six screws to remove the front panel on the display pedestal.
6. Set the RP Board (14P0298) in the top slot of the pcb card case.
7. Run the connector from the card case in front of the GYRO CONVERTER
Board.
8. Plug the connector in J1 on the RP Board.
9. Fasten the ground wire from the connector at the location shown below.
INT Board
GYRO
CONVERTER
Board
FRONT
Fasten ground wire from connector to this screw.
RP connector
(TOP VIEW)
iFRONT VIEWj
RP Board
ARP Board
SPU Board
Route cable between ARP and SPU Boards.
J1
Figure 4-14 Display pedestal, top view
To Next Page
