2-7
Fabricating the DC power cable (CVV-S 8 x 2C, option)
1. Remove the vinyl sheath by 100 mm.
2. Unravel the braided shield 60 mm from end of cable.
3. Remove the jute tape and inclusion from cable.
4. Expose the cores by 50 mm.
5. Expose the shield by 60 mm. Tape 10 mm of the shield tip.
6. Remove the sheath of cores by 10 mm. Attach crimp-on lugs type 8NK4 to the
cores and crimp-on lug type FV5.5-4 (yellow) to the shield.
7. Tape the cable as shown in the figure below. Fasten the shield to screw (M4) on
the cable clamp.
Core
CVV-S 8~2C
100 mm
Braided Shield
Taping
Fasten cable
clamp here.
Crimp-on Lug
8NK4
60 mm
Inclusion
Jute Tape
50 mm
60 mm
10 mm
Crimp-on Lug
FV5.5-4
Taping

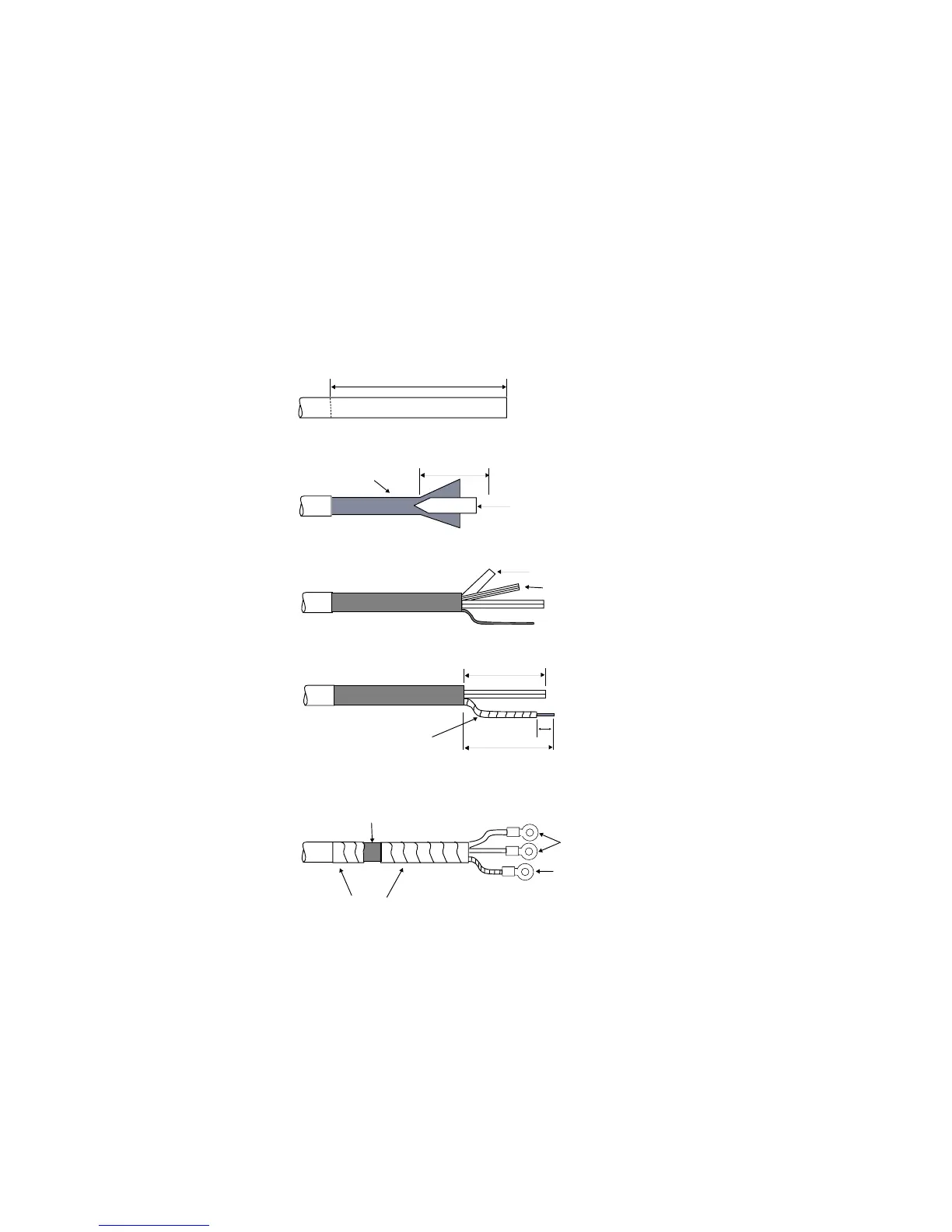

Figure 2-11 Fabricating power cable CVV-S 8 x 2C
