Furuno FR-2115/2125 User Manual

4-9
Final check
Connect a gyrocompass and a log to the radar and place the radar under transmit
state. Confirm that LEDs CR9, CR10, CR11, CR12, CR15 and CR16 on the ARP
Board are off. If ship's speed is zero, or other signal is not being input, correspond-
ing LED will light.
S1
CR16 LOG
CR15 GYRO
CR9 HDG
CR10 BRG
CR11 VID
CR12 TRG
4#3#2#1#
FFOFFOFFOFFO

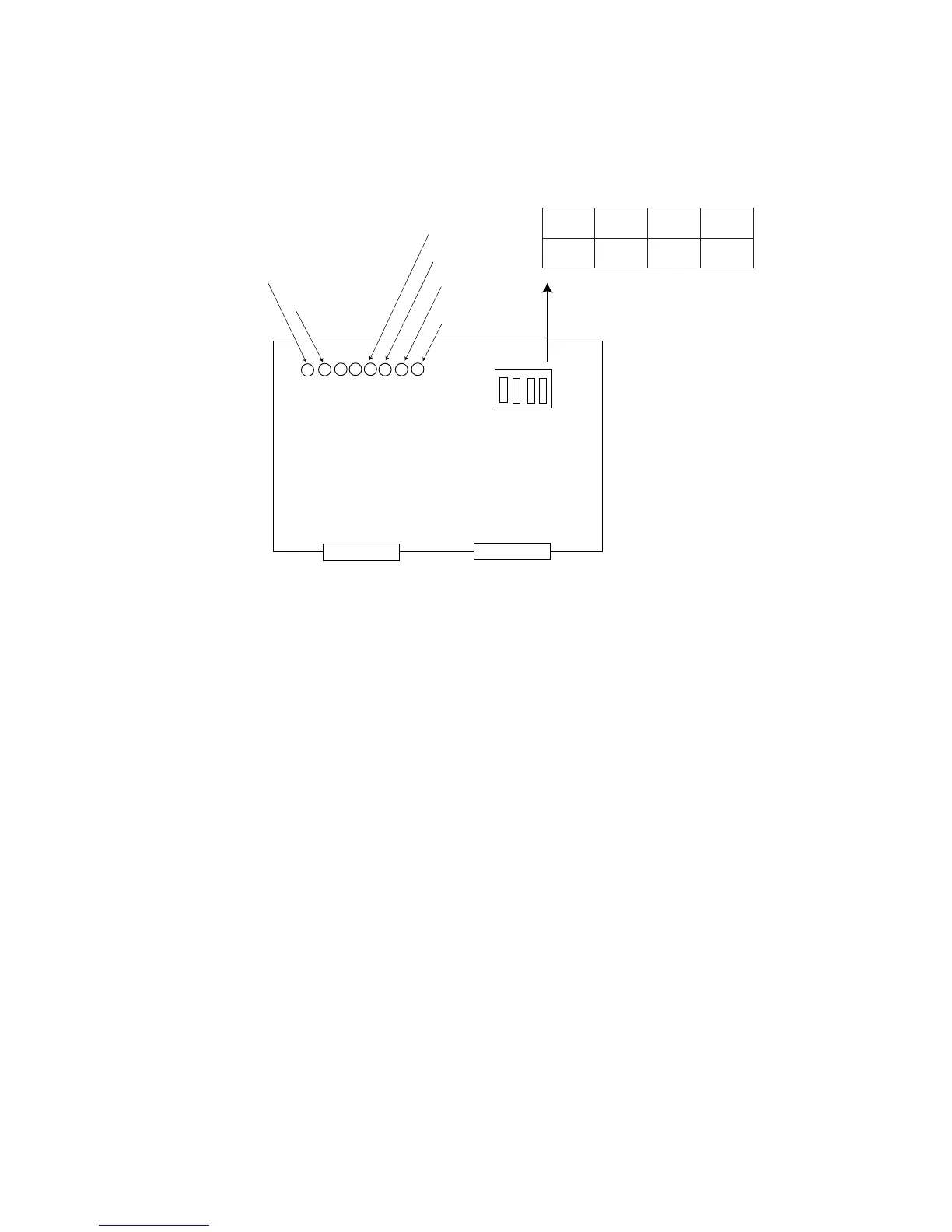

Figure 4-8 ARP Board ARP-26
