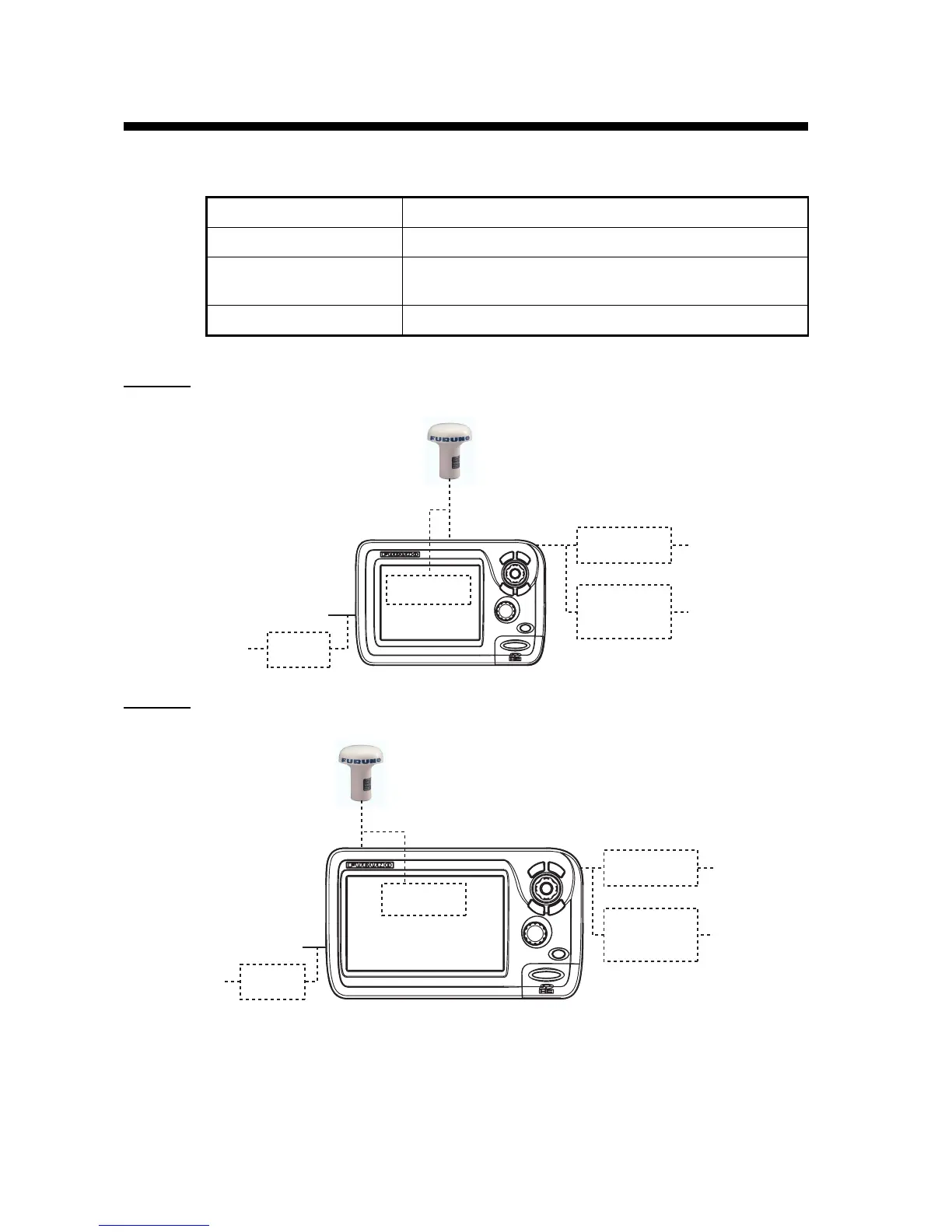

SYSTEM CONFIGURATION
The environmental category of each unit is as follows:
GP-1670
GP-1870
Unit Environmental category
Display unit Protected from the weather
GPS antenna unit Exposed to the weather, or protected from the weather in
case of internal antenna
Other units Protected from the weather
12-24 VDC
Rectifier
PR-62
100/110/
220/230 VAC,
1ø, 50/60 Hz
OR
Display Unit
GP-1670F
Antenna Unit
GPA-017 or
GPA-017S
CAN bus
equipment
NMEA 0183
equipment
Junction Box
FI-5002
NMEA Data
Converter
IF-NMEA2K2
Internal GPS
antenna
12-24 VDC
Rectifier
PR-62
100/110/
220/230 VAC,
1ø, 50/60 Hz
Display Unit
GP-1870F
Antenna Unit
GPA-017 or
GPA-017S
OR
CAN bus
equipment
NMEA 0183
equipment
Junction Box
FI-5002
NMEA Data
Converter
IF-NMEA2K2
Internal GPS
antenna
