1. OPERATIONAL OVERVIEW
1.1 Controls
1.1.1 Control description
The controller for this system is either the GP-1670 or the GP-1870. A key that has
two text labels has two functions. The top label is the main function and the bottom
label is the secondary function. Short-push to access the main function and long-push
(approximately three seconds) to access the secondary function.
You operate the chart plotter with
• Keys
• CursorPad
• RotoKey
TM
• Menus, where you select options
• Context-sensitive menus, where you select options
• Lists, where you can edit items
When you operate a key, a single beep sounds to tell you correct operation. If you do
not need the key beep, you can deactivate it from the menu.

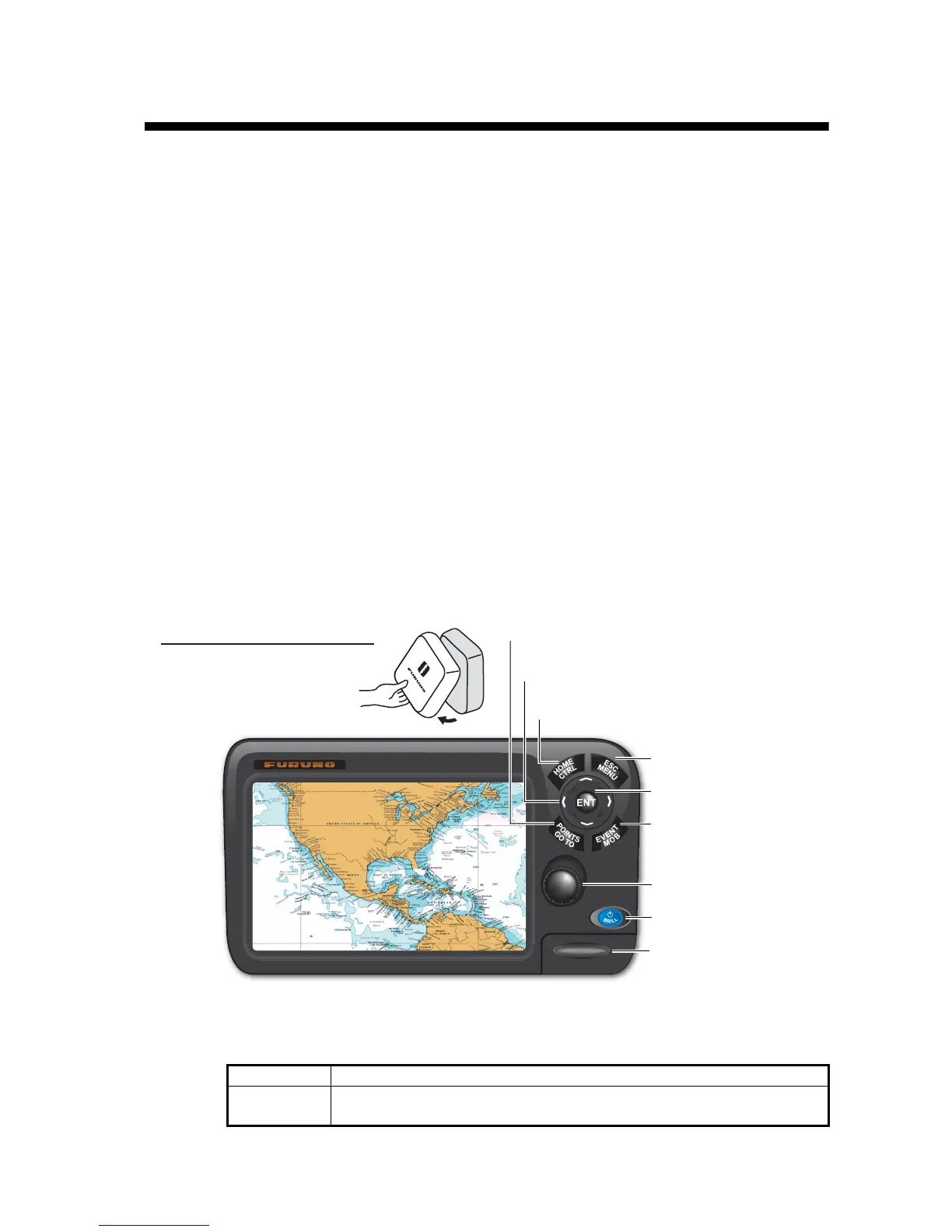

Pictured: GP-1870
Control Description
POWER/
BRILL key
Short press: Adjust LCD brilliance.
Long press: Turn the power on or off.
POWER/BRILL key
RotoKey
TM
ENT key
ESC/MENU key
EVENT/MOB key
POINTS/GO TO key
HOME/CTRL key
CursorPad
Behind cover:
- SD card slot
- USB micro connector
- RESET button
How to remove the hard cover
Put fingers under notch at bottom
of cover and pull toward you.
