3. INSTALLATION
3. Installation
This chapter describes how you install the GARDENA
robotic lawnmower. Before starting the installation
read the previous chapter 2. Presentation.
Read also through this entire chapter before beginning
the installation. How the installation is done also
affects how well the robotic lawnmower works. It is
therefore important to plan the installation carefully.
Planning is simplified if you make a sketch of the
working area, including all obstacles. This makes it
easier to see the ideal positions for the charging
station, the boundary wire and the guide wire. Draw on
the sketch where the boundary and guide wires should
be routed.
See 7. Garden examples on page 59 for installation
examples.
Visit also www.gardena.com for further descriptions
and tips regarding installation.
Carry out the installation in the following steps:
3.1 Preparations.
3.2 Installation of the charging station.
3.3 Charging the battery.
3.4 Installation of the boundary wire.
3.5 Connecting the boundary wire.
3.6 Installation of the guide wire
3.7 Checking the loop.
3.8 First start-up and calibration
3.9 Test docking with the charging station
The charging station and boundary and guide wires
must be connected to be able to carry out a complete
start-up of the robotic lawnmower.
3.1 Preparations
1. If the lawn in the working area is longer than
10 cm, mow it using a standard lawnmower.
Then collect the grass.

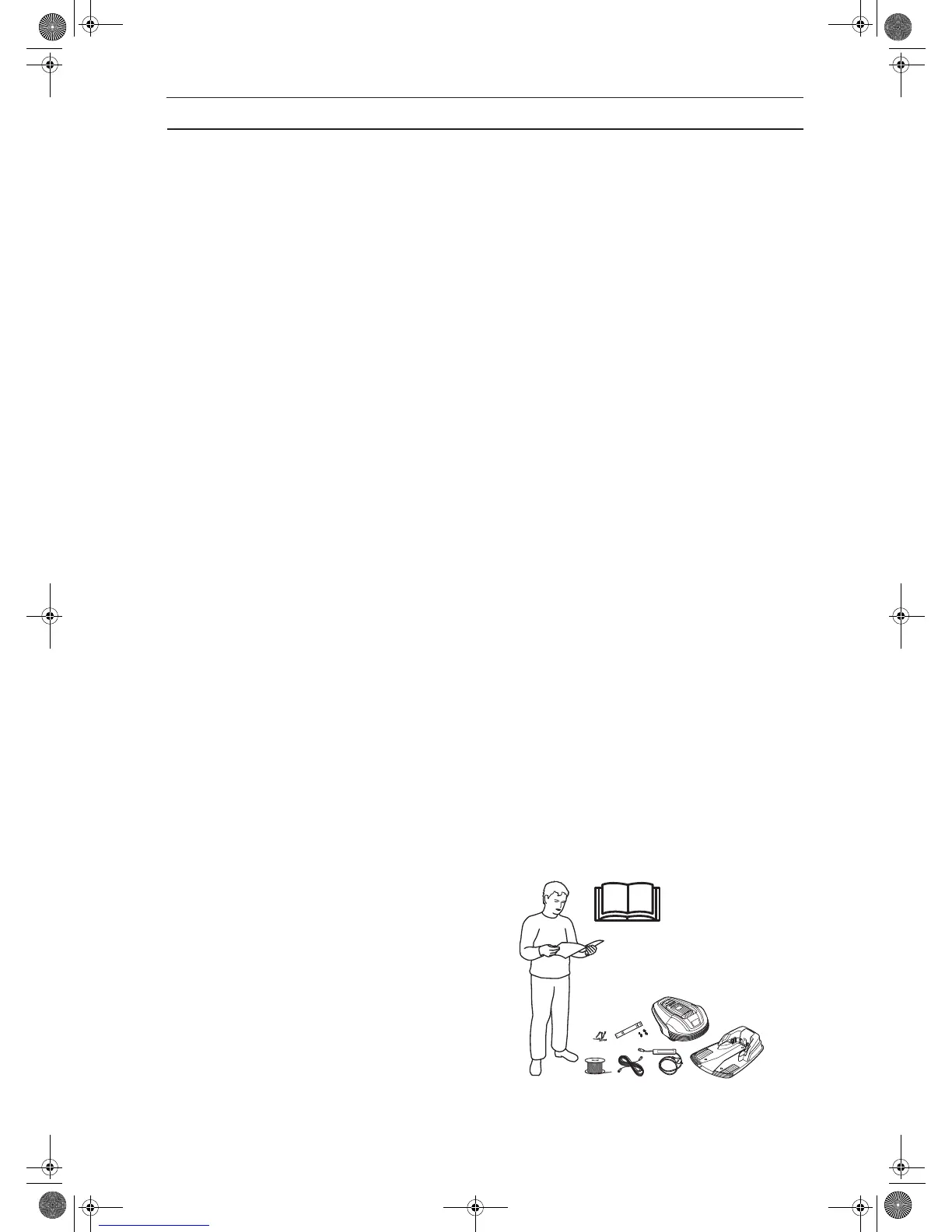

2. Read carefully through all the steps before the
installation.
3. Check that all parts for the installation are
included. The numbers in brackets refer to the
component illustration 2.1 What is what?.
• Robotic lawnmower
• Charging station (6)
• Loop wire for boundary wire and guide
wire (16)
• Transformer (20)
1157069-26,R40Li_GB.book Page 17 Wednesday, November 19, 2014 5:02 PM

Gardena R38Li Specifications

General

Type	Robotic lawn mower
Noise level	58 dB
Display type	LCD
Cutting width	170 mm
Grass catcher	No
Product color	Black, White
Cutting system	-
Number of blades	3
Maximum lawn area	380 m²
Recommended lawn area	- m²
Maximum cutting height	50 mm
Minimum cutting height	20 mm
Grass collecting volume	- L
Suitable for slope up to	25 %
Automatic base station return	Yes
Power source	Battery
Charging time	1 h
AC input voltage	18 V
Battery capacity	1.6 Ah
Battery life (max)	65 min
Power consumption per month (max)	4 kWh

Weight and Dimensions

Depth	580 mm
Width	460 mm
Height	260 mm
Weight	7400 g
