Gardena R38Li Installation Manual

English - 29
3. INSTALLATION
3.5 Connecting the boundary wire

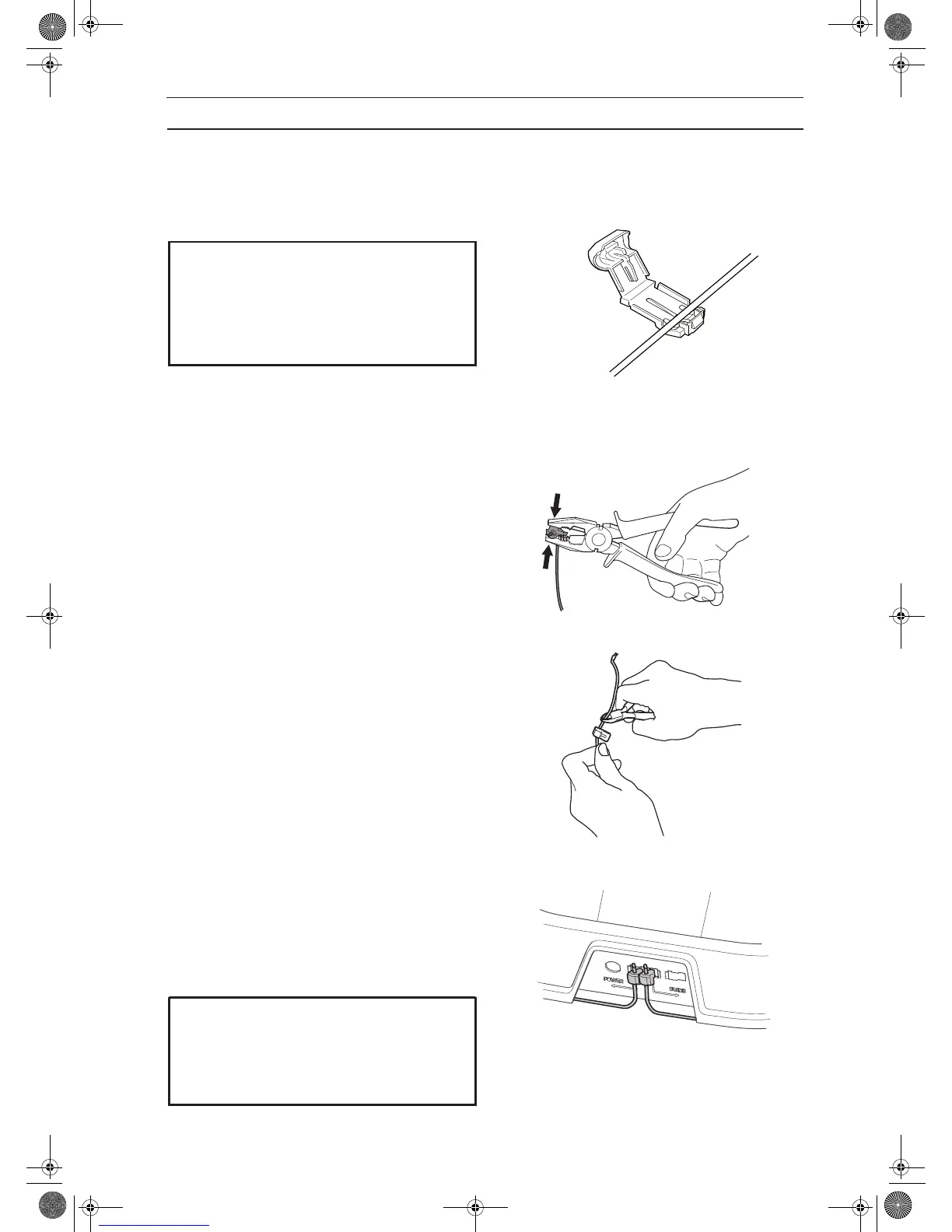

Connect the boundary wire to the charging station:
1. Place the wire ends in the connector:
• Open the connector.
• Place the wire in the connector grip.
2. Press the connectors together using a pair of
pliers. Press until you hear a click.
3. Cut off any excess boundary wire 1 or 2
centimetres above each connector.
4. Press the connector onto the metal pin, Press
the connector onto the contact pin, marked AL
(left) and AR (right), on the charging station.
Carefully check that the connector is properly
fitted.
IMPORTANT INFORMATION
The boundary wire must not be crossed when
connecting it to the charging station. The
right hand wire end must be connected to the
right hand pin on the charging station and
the left hand wire end to the left pin.
IMPORTANT INFORMATION
The right hand connector must be connected
to the right hand metal pin on the charging
station and the left hand wire end to the left
connector.
1157069-26,R40Li_GB.book Page 29 Wednesday, November 19, 2014 5:02 PM

Gardena R38Li Specifications

General

Type	Robotic lawn mower
Noise level	58 dB
Display type	LCD
Cutting width	170 mm
Grass catcher	No
Product color	Black, White
Cutting system	-
Number of blades	3
Maximum lawn area	380 m²
Recommended lawn area	- m²
Maximum cutting height	50 mm
Minimum cutting height	20 mm
Grass collecting volume	- L
Suitable for slope up to	25 %
Automatic base station return	Yes
Power source	Battery
Charging time	1 h
AC input voltage	18 V
Battery capacity	1.6 Ah
Battery life (max)	65 min
Power consumption per month (max)	4 kWh

Weight and Dimensions

Depth	580 mm
Width	460 mm
Height	260 mm
Weight	7400 g
