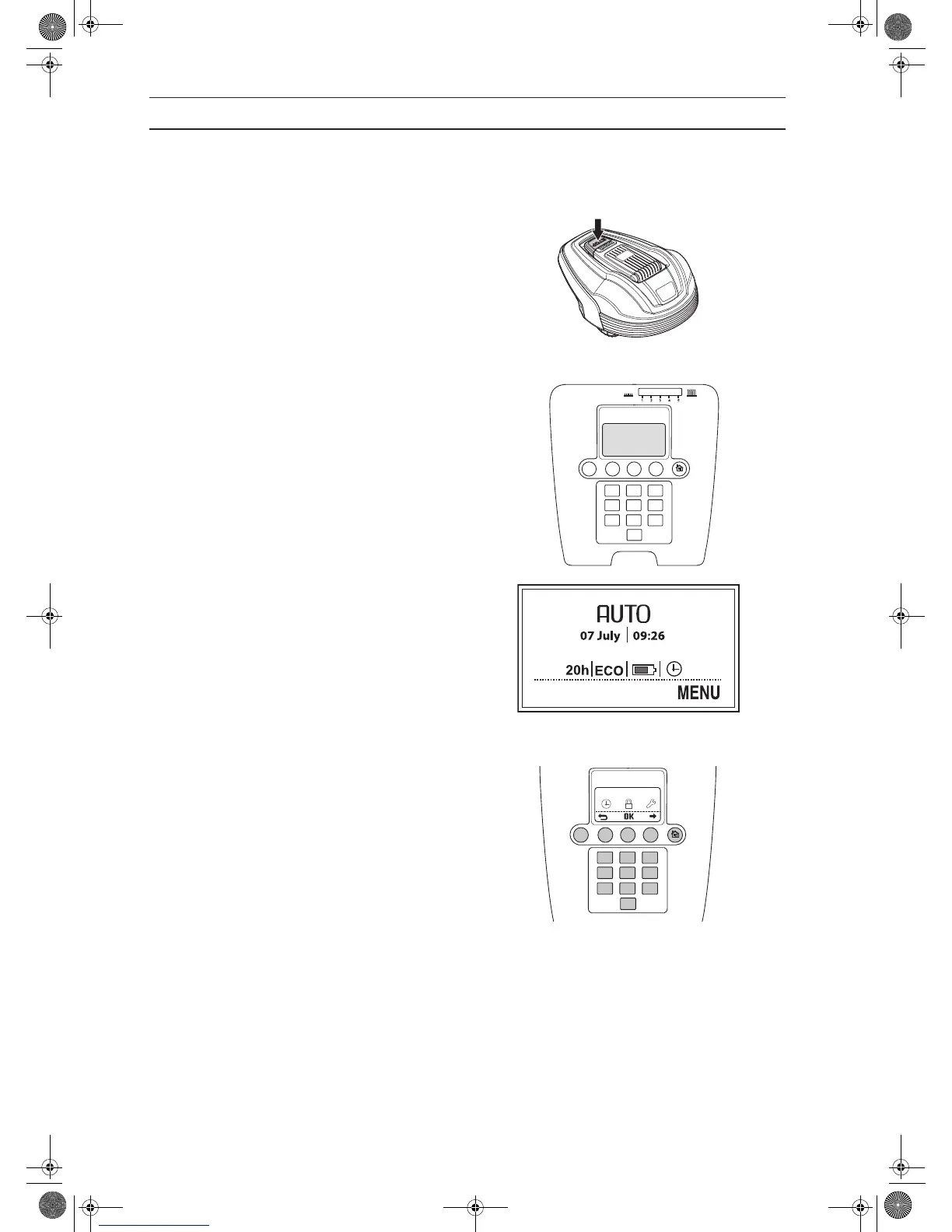

5. CONTROL PANEL
5. Control panel
All forms of commands and settings for the
GARDENA robotic lawnmower are made via the
control panel. All functions are accessed via a
number of menus.
The control panel consists of a display and a keypad.
All information is shown on the display and all input is
done using the buttons.
When the stop button has been pressed and the
cover is opened, the operation window appears
showing the time, selected operating mode, number
of mowing hours, battery status and timer setting.
• The clock shows the current time.
• Date shows the current day.
• The number of operating hours indicates the
number of hours since the day of manufacture
that the robotic lawnmower has been in
operation. The time that the robotic lawnmower
has spent mowing or looking for the charging
station is counted as operating time.
• AUTO, MAN or HOME show which mode of
operation is selected. See chapter 5.1 Operation
selection
• The battery status shows the remaining battery
charge.
• ECO is displayed if the robotic lawnmower is set
in ECO mode.
• The clock symbol indicates when the timer
settings are set. The clock symbol is black when
the robotic lawnmower is not allowed to mow due
to a timer setting and it is white when the mower is
allowed to mow.
• The MENU text illustrates that the main menu can
be reached by pressing the multi-choice button
that is located under the text.
The keypad consists of four groups of buttons:
operation selection button, multi-choice buttons,
numbers and start button.
Start
1
4
78
0
9
56
23
Start
1
4
78
0
9
56
23
1157069-26,R40Li_GB.book Page 40 Wednesday, November 19, 2014 5:02 PM

Gardena R38Li Specifications

General

Type	Robotic lawn mower
Noise level	58 dB
Display type	LCD
Cutting width	170 mm
Grass catcher	No
Product color	Black, White
Cutting system	-
Number of blades	3
Maximum lawn area	380 m²
Recommended lawn area	- m²
Maximum cutting height	50 mm
Minimum cutting height	20 mm
Grass collecting volume	- L
Suitable for slope up to	25 %
Automatic base station return	Yes
Power source	Battery
Charging time	1 h
AC input voltage	18 V
Battery capacity	1.6 Ah
Battery life (max)	65 min
Power consumption per month (max)	4 kWh

Weight and Dimensions

Depth	580 mm
Width	460 mm
Height	260 mm
Weight	7400 g
