Gardena R38Li Installation Manual

38 - English
4. USE

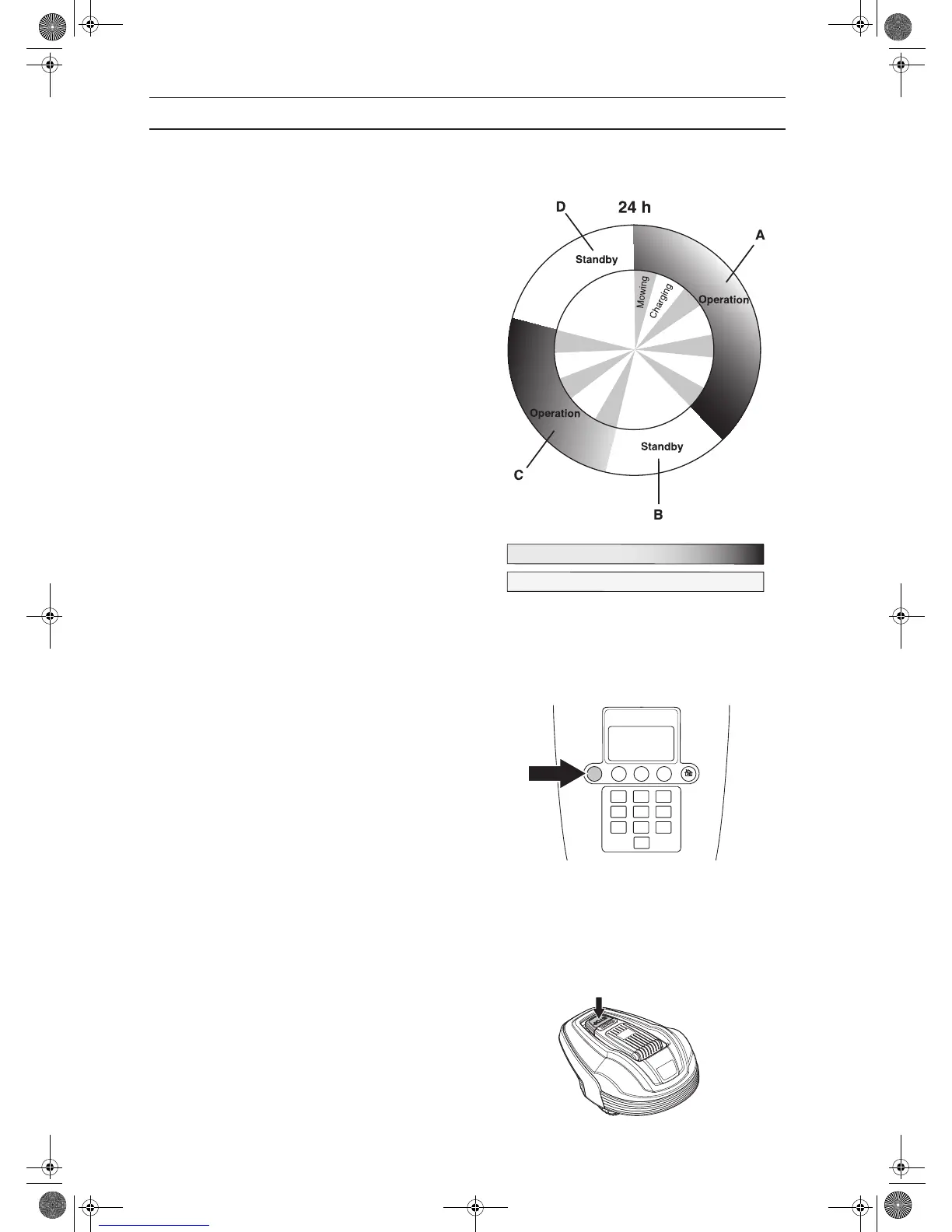

Example 2
The times used in this example are applicable to
GARDENA R40Li, but the principle is the same
for the other models.
Work period 1: 06:00 - 16:00
Work period 2: 20:00 - 23:00
Work days: All days
The robotic lawnmower will operate between
06:00 and 16:00. It will begin again at 20:00 but
stop running at 22:00 to rest until it starts again
at 06:00.
The times are approximate and depend for instance
on grass quality, blade sharpness and battery age.
4.3 Starting
1. Set the main switch to position 1.
2. Press the STOP button to open the control panel
cover.
3. Enter the PIN code.
4. Push the START button.
5. Shut the cover within 10 seconds.
If the robotic lawnmower is parked in the charging
station, it will only leave the charging station when the
battery is fully charged and if the timer is set to allow
the mower to operate.
Before the blade disc starts, 5 beeps are heard for
2 seconds.
4.4 Stopping
1. Press the STOP button.
The robotic lawnmower stops, the blade motor
stops and the control panel cover opens.
A + C = Max 13 h
B + D = Min 11 h
R40Li
Operation
Charging/Standby
Start
1
4
78
0
9
56
23
1157069-26,R40Li_GB.book Page 38 Wednesday, November 19, 2014 5:02 PM

Gardena R38Li Specifications

General

Type	Robotic lawn mower
Noise level	58 dB
Display type	LCD
Cutting width	170 mm
Grass catcher	No
Product color	Black, White
Cutting system	-
Number of blades	3
Maximum lawn area	380 m²
Recommended lawn area	- m²
Maximum cutting height	50 mm
Minimum cutting height	20 mm
Grass collecting volume	- L
Suitable for slope up to	25 %
Automatic base station return	Yes
Power source	Battery
Charging time	1 h
AC input voltage	18 V
Battery capacity	1.6 Ah
Battery life (max)	65 min
Power consumption per month (max)	4 kWh

Weight and Dimensions

Depth	580 mm
Width	460 mm
Height	260 mm
Weight	7400 g
