Gardena R38Li Installation Manual

18 - English
3. INSTALLATION
• Low voltage cable (17)
• Staples (21)
• Connector for connecting the loop wire to the
charging station(18)
• Screws for the charging station (19)
• Measurement gauge (22)
• Couplers for the loop wire (23)

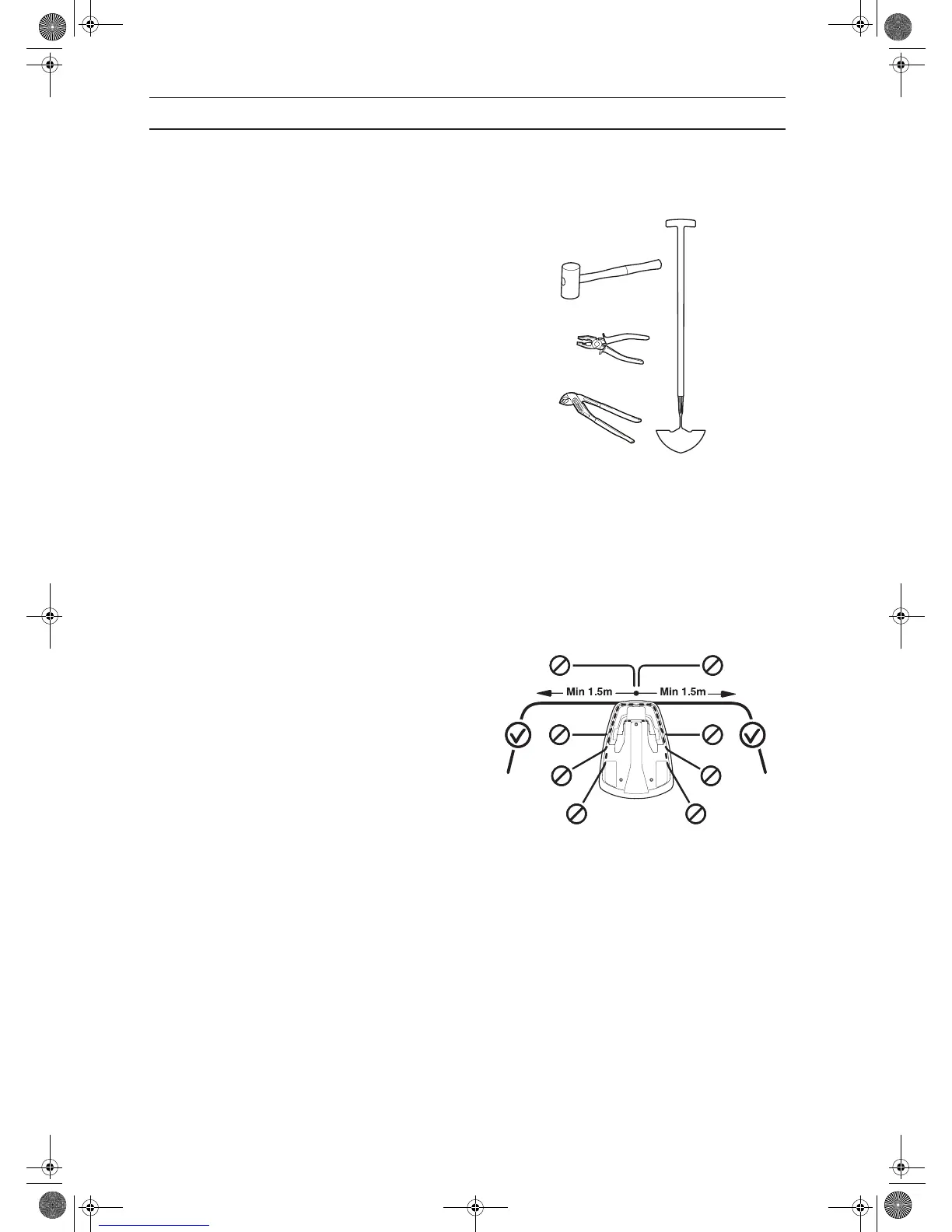

During installation you will also need:
• Hammer/plastic mallet (to simplify putting the
staples in the ground)
• Combination pliers for cutting the boundary
wire and pressing the connectors together.
• Polygrip (for pressing the couplers together).
• Edge cutter/straight spade if the boundary wire
must be buried.
3.2 Installation of the charging
station
Ideal position for the charging station
Take the following aspects into consideration when
identifying the best location for the charging station:
• Allow for 3 metres of free space in front of the
charging station
• It must be possible to lay at least 1.5 metres of
boundary wire straight out to the right and left
of the charging station
• It must be close to a wall socket The supplied
low voltage cable is 10 metres long. A 20
meter low voltage cable is available to
purchase as an accessory. Contact GARDENA
Central Service for more information.
• A level surface to place the charging station on
• Protection from water spray for instance from
irrigation
• Protection from direct sunlight
• Place in the lower part of a working area that
has a major slope
• Possible requirement to keep the charging
station out of sight for outsiders
For an example of an ideal position of the charging
station, see 7. Garden examples on page 59.
1157069-26,R40Li_GB.book Page 18 Wednesday, November 19, 2014 5:02 PM

Gardena R38Li Specifications

General

Type	Robotic lawn mower
Noise level	58 dB
Display type	LCD
Cutting width	170 mm
Grass catcher	No
Product color	Black, White
Cutting system	-
Number of blades	3
Maximum lawn area	380 m²
Recommended lawn area	- m²
Maximum cutting height	50 mm
Minimum cutting height	20 mm
Grass collecting volume	- L
Suitable for slope up to	25 %
Automatic base station return	Yes
Power source	Battery
Charging time	1 h
AC input voltage	18 V
Battery capacity	1.6 Ah
Battery life (max)	65 min
Power consumption per month (max)	4 kWh

Weight and Dimensions

Depth	580 mm
Width	460 mm
Height	260 mm
Weight	7400 g
