Gardena R38Li Installation Manual

22 - English

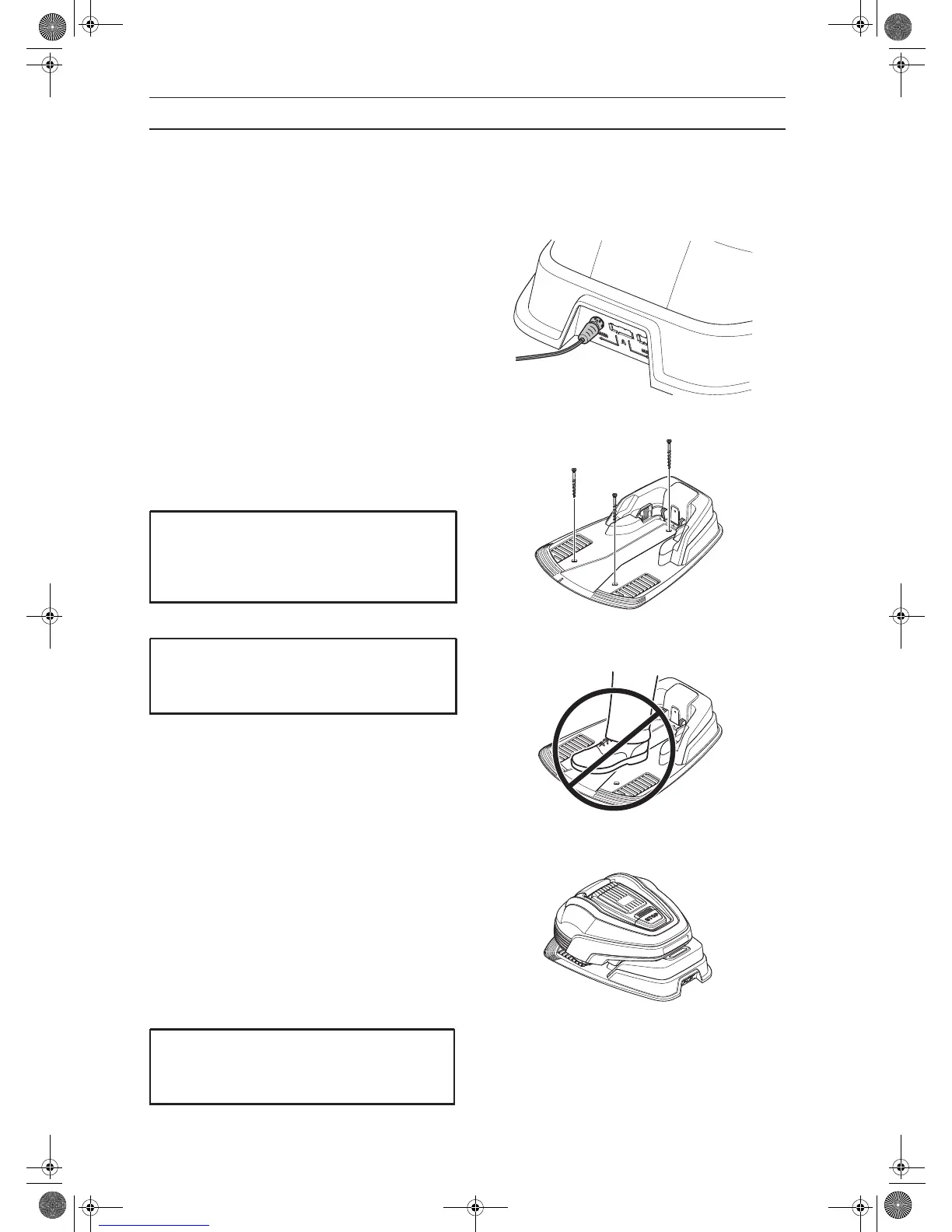

3. INSTALLATION
Installation and connecting the charging
station
1. Position the charging station in a suitable spot.
2. Connect the low voltage cable to the charging
station.
3. Connect the transformer’s power cable to a
100-240V wall socket. If the transformer is
connected to an electrical socket outdoors, this
must be approved for outdoor use.
4. Attach the charging station to the ground using
the supplied screws. Ensure the screws are
screwed all the way down in the countersink.
3.3 Charging the battery
As soon as the charging station is connected, it is
possible to charge the robotic lawnmower. Set the
main switch to position 1.
Place the robotic lawnmower in the charging station
to charge the battery while the boundary and guide
wires are being laid.
If the battery is flat, it takes around 80 to 100 minutes
to fully charge it.
IMPORTANT INFORMATION
It is not permitted to make new holes in the
base plate Only the existing holes may be
used to secure the base plate to the ground.
IMPORTANT INFORMATION
Do not tread or walk on the charging station's
base plate.
IMPORTANT INFORMATION
The robotic lawnmower cannot be used
before the installation is complete.
1157069-26,R40Li_GB.book Page 22 Wednesday, November 19, 2014 5:02 PM

Gardena R38Li Specifications

General

Type	Robotic lawn mower
Noise level	58 dB
Display type	LCD
Cutting width	170 mm
Grass catcher	No
Product color	Black, White
Cutting system	-
Number of blades	3
Maximum lawn area	380 m²
Recommended lawn area	- m²
Maximum cutting height	50 mm
Minimum cutting height	20 mm
Grass collecting volume	- L
Suitable for slope up to	25 %
Automatic base station return	Yes
Power source	Battery
Charging time	1 h
AC input voltage	18 V
Battery capacity	1.6 Ah
Battery life (max)	65 min
Power consumption per month (max)	4 kWh

Weight and Dimensions

Depth	580 mm
Width	460 mm
Height	260 mm
Weight	7400 g
