Equipment Overview
For technical specifications, see Antenna specifications on page A-13.
Enterprise Access antenna system
Refer to the Enterprise Access System Service Manual for details on the system.
ApexPro and CARESCAPE transmitters
CAUTION
UNINTENTIONAL RADIO FREQUENCY (RF)
INTERFERENCE—Unintentional RF interference could degrade
the reliability and performance of the wireless data link. The facility
must maintain an RF environment free from unintentional
interference.

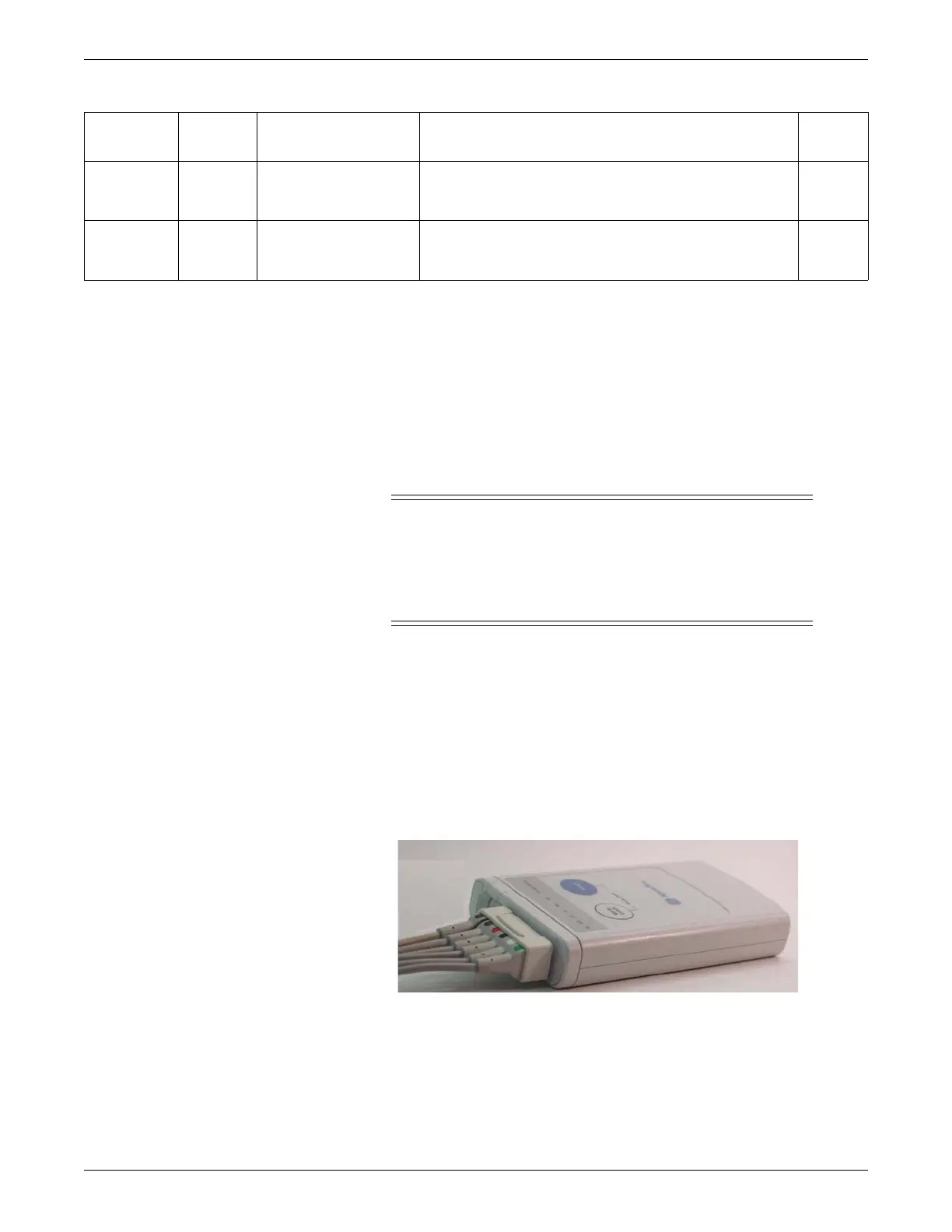

The ApexPro and CARESCAPE transmitters send the patient’s ECG data to the
ApexPro receiver system for processing. Data is then transmitted via a dedicated
Ethernet interface to the CIC Pro center for viewing. The transmitter can also send
DINAMAP PRO data to the CIC Pro center via the DinaLink cable.
Additionally, the transmitter can send the patient’s SpO2 and noninvasive blood
pressure data when the interface connector ports are enabled and when the optional
oximeter and/or Accutracker DX noninvasive blood pressure monitor are connected
to it.
309C
ApexPro Transmitter
2000673-007 600 MHz ApexPro Active Antenna
608-614MHz
This active antenna operates within 608-614MHz. This antenna
also has a bandpass filter element that rejects signals outside of
608-614MHz, except for signals in channels 36 and 38.
Current
2000673-008 450 MHz ApexPro Antenna Hi-Pwr
420-474 MHz
This high-power antenna operates within 420-474MHz and has
filtering for out-of-band signals. It has >15dB rejection below
320MHz.
Current
Part number
Design
frequency
Antenna type Description Status
