Installation and configuration
2001989-351A ApexPro™ 3-13
With active antennas
270B
ApexPro receiver installation
Due to the fact that frequency drift occurs even without power applied, the cailbration
schedule should take into account the date the equipment was last calibrated,
including equipment in storage locations and spares.
Before installation, determine and record the date of initial factory calibration of
transmitters and receivers from the removable calibration sticker that ships on these
devices. If the installation is not within 30 months of the date shown on the
manufacturer calibration sticker, calibrate before installation. See Calibration on page
4-10.
Mounting options
The mounting options for the ApexPro Telemetry System Receiver System are:
Standard tabletop mount (four rubber feet)
Optional rack mount for standard 19 inch network rack system with a 4U panel
height (177.8mm/7in.). (Order rack mounting kit #2004232-001 separately.)

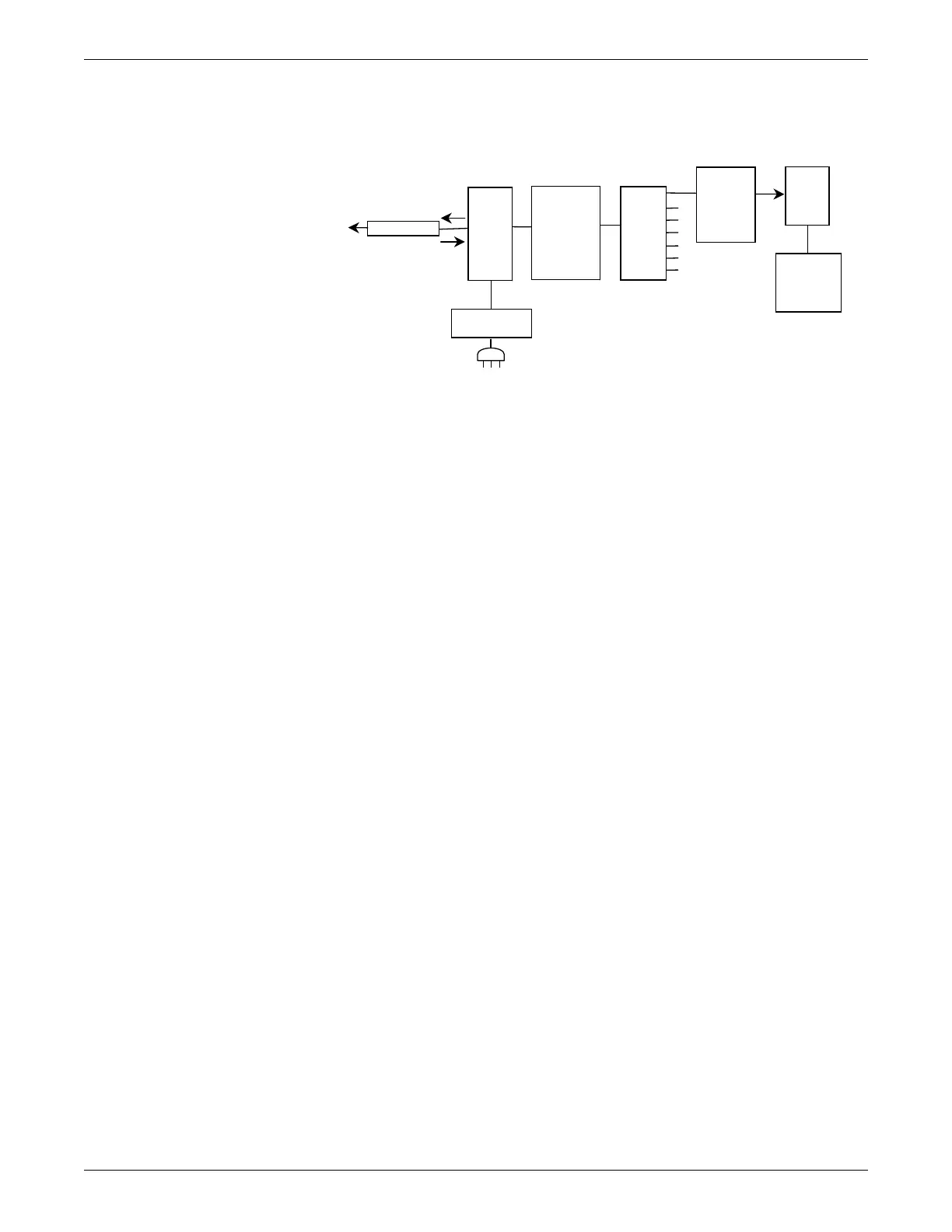

RX
RF
DC
+12 VDC
1A
Unity MC
Splitter
Bias
Tee
Filter,
Notch,
or
Bandpass
ApexPro
Receiver
System
ATS
CIC Pro
Center(s)
Amplifier
Power Supply
To Next Page
