– 29 –

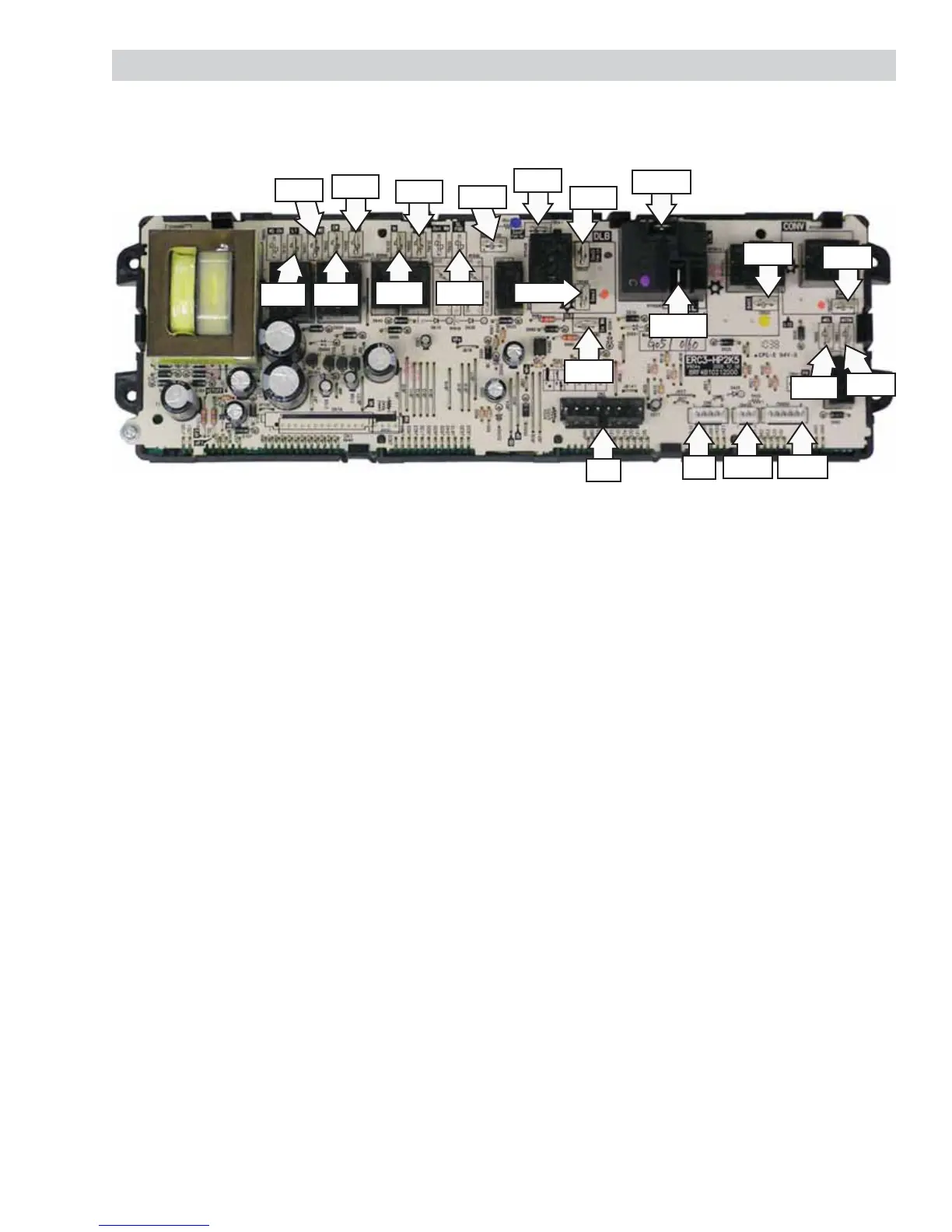

Electronic Range Control (ERC) Pin Locator
CN2 – Oven Sensor, Upper and Lower Door Latch,
and Meat Probe
CN420 – Thermostat Switch
CN6 – Lockout Valve Switches
CN950 – Glass Touch Board
RY500A – Bake Assist (Lower Oven Bake Assist)
RY500B – Bake Assist (BROIL)
TB101 – L1
TB102 – N
TB540 – Convection Fan Direction (jumpered to
TB503)
TB541 – GasF Convection Fan HI
TB542 – GasS Convection Fan LO
TB601 – Upper Oven Mode Select (to external relay)
TB620 – Oven Light (OL)
TB630 – Cooling Fan
TB640 – Cooktop Gas Lockout Valve
TB650 – Door Lock Motors Unlock
TB502 – Bake Lower Cavity Glow Bar (BAKE)
TB503 – Convection Fan Enable (jumpered to TB540)
TB655 – Door Lock Motors Lock
TB660 – L1 (to Upper Oven Self-Clean Enable)
TB661 – Upper Oven Self-Clean Enable
TB680 – Thermostat Clean Position Sensing
CN2
CN6
CN420
CN950
RY500B
TB503
TB502
TB660
TB680
TB620
TB655
TB650
TB601
TB542
TB661
TB540
TB640
TB102
TB101
TB541
TB630
RY500A
